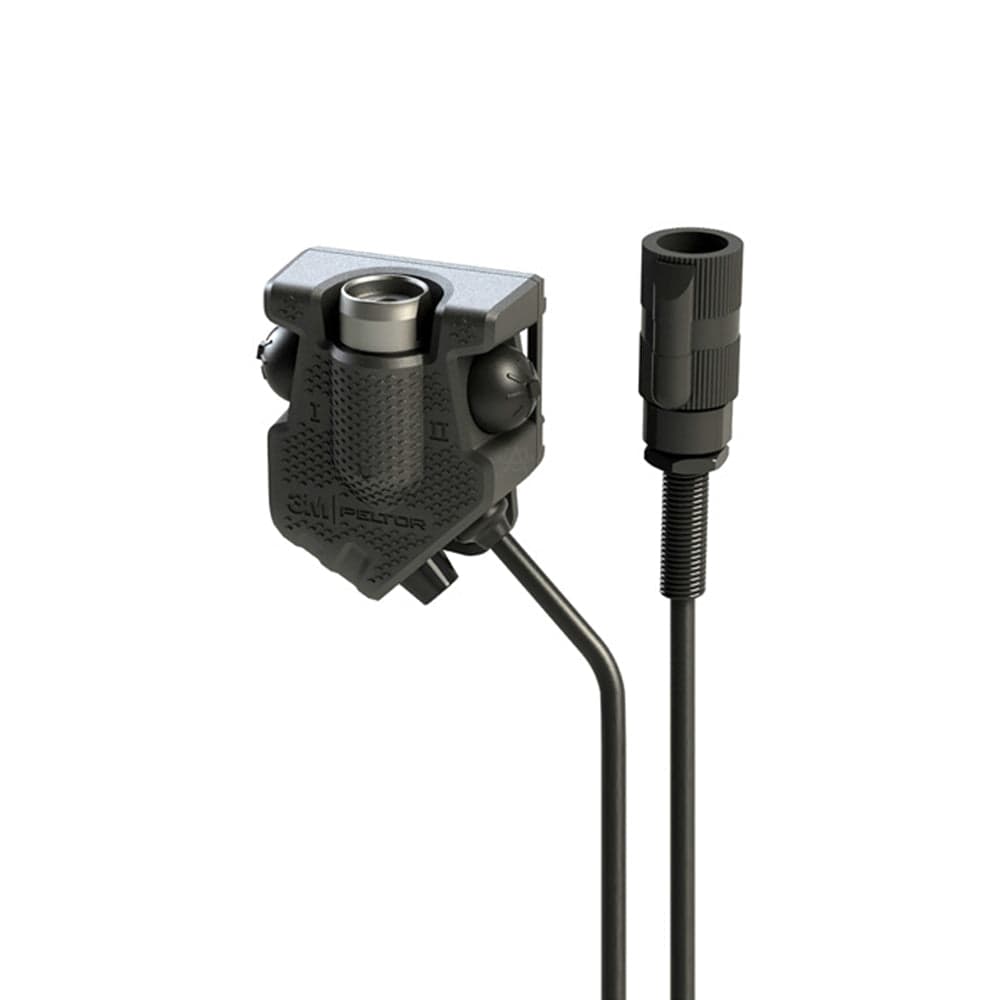

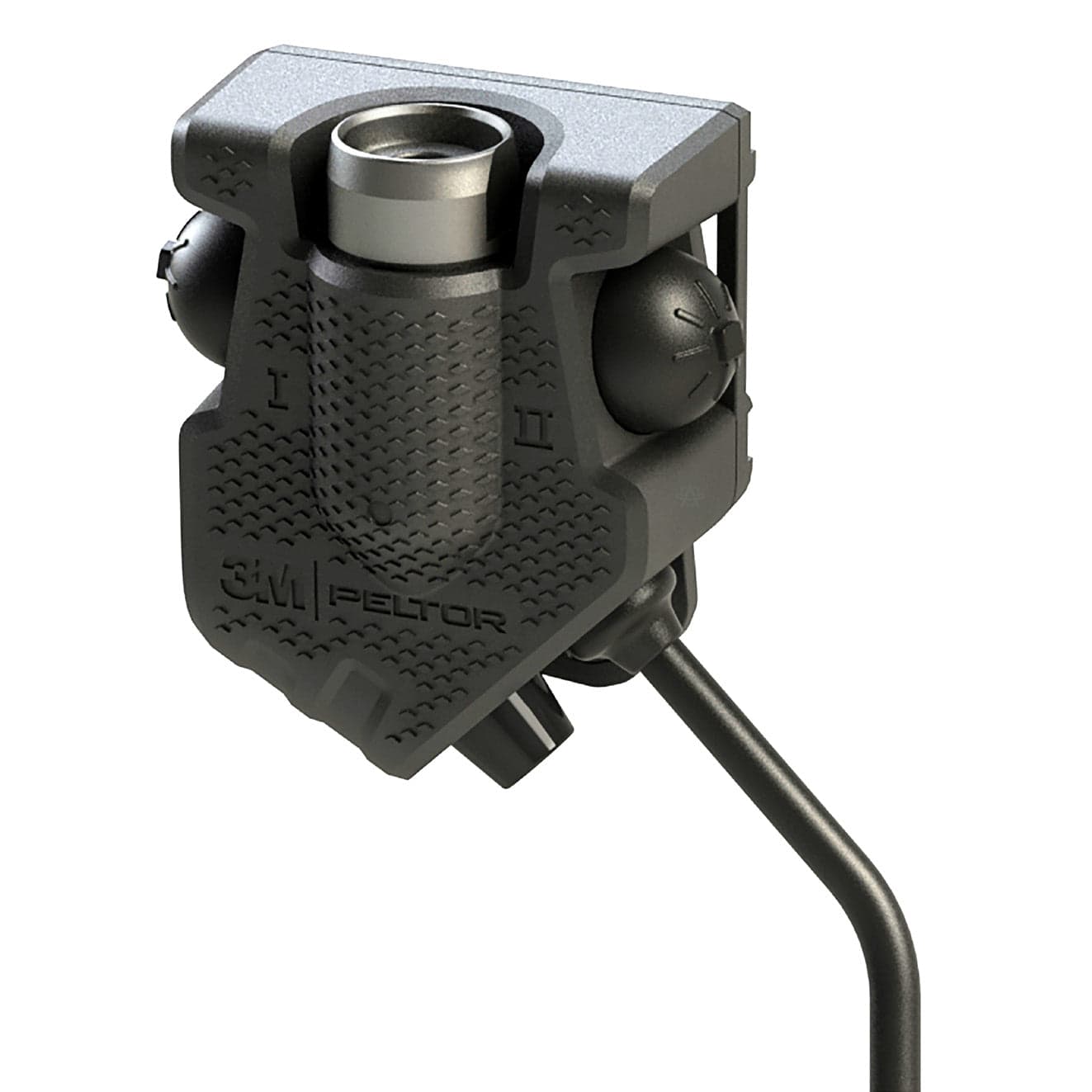

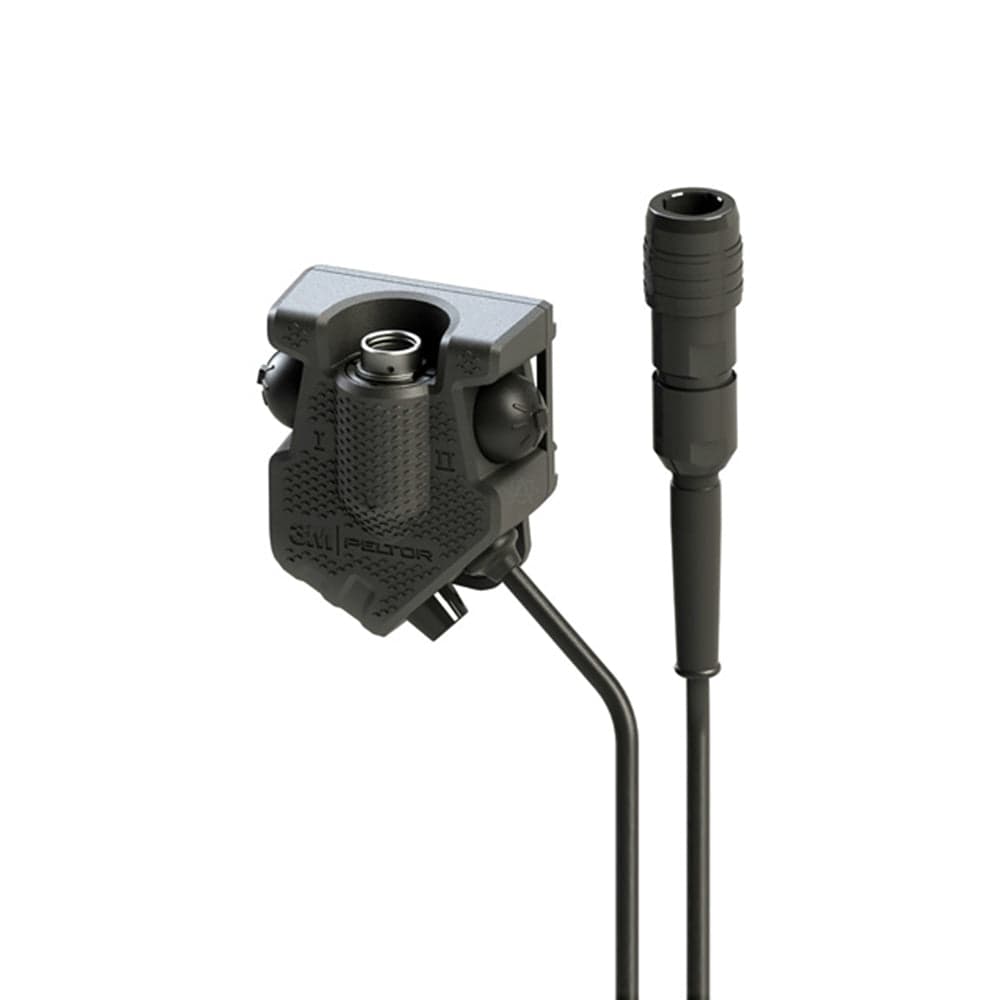

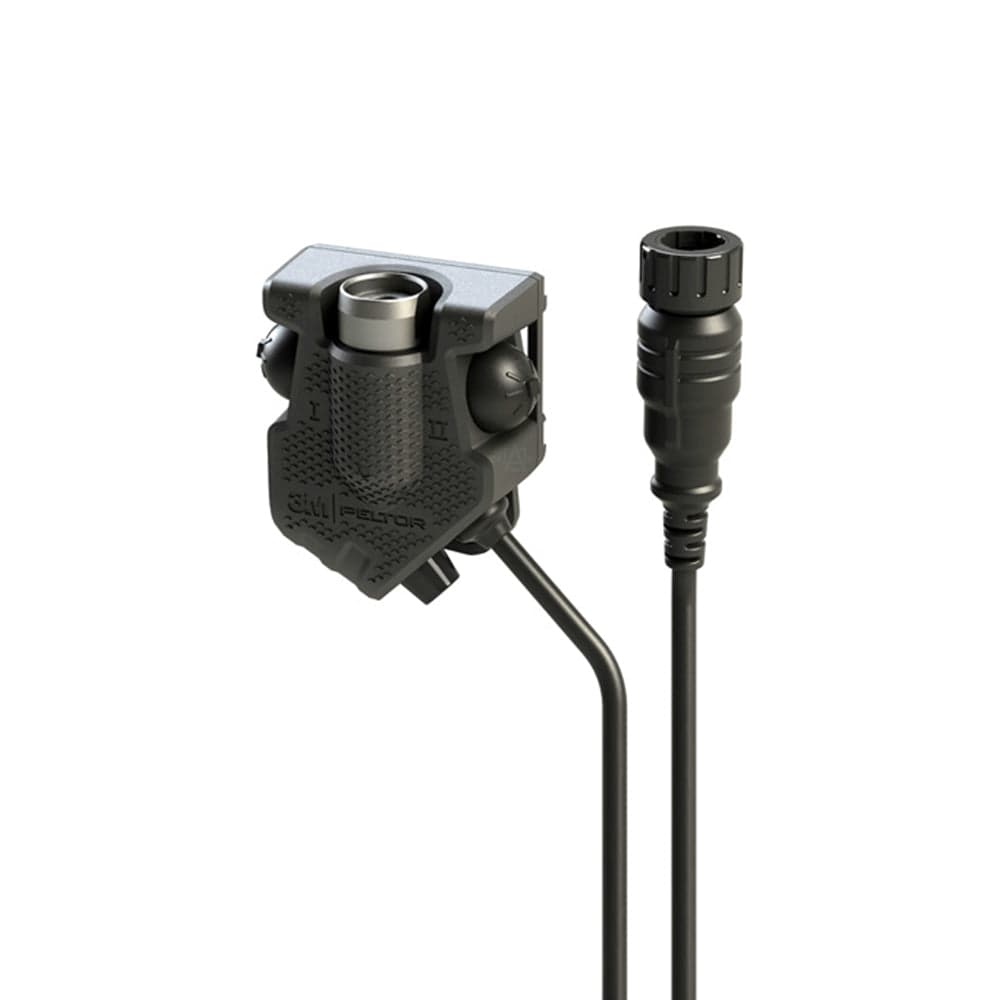

3M Peltor FL7000 - Simple Multi-Comm PTT & EUD Interface - IP68 Waterproof

3M Peltor FL7000: The Definitive Dual Radio PTT Adapter for Multi-Channel Comms & ATAK Data Integration

• The 3M Peltor FL7000 Series Dual Push-to-Talk Adapter is a rugged, non-powered communication tool built to meet strict standards for tactical operations. It allows operators to connect 3M Peltor ComTac headsets to dual radio setups, supporting multi-channel or two single-channel devices at once. This field-proven system ensures you can manage complex team comms while maintaining a compact, mission-ready profile.

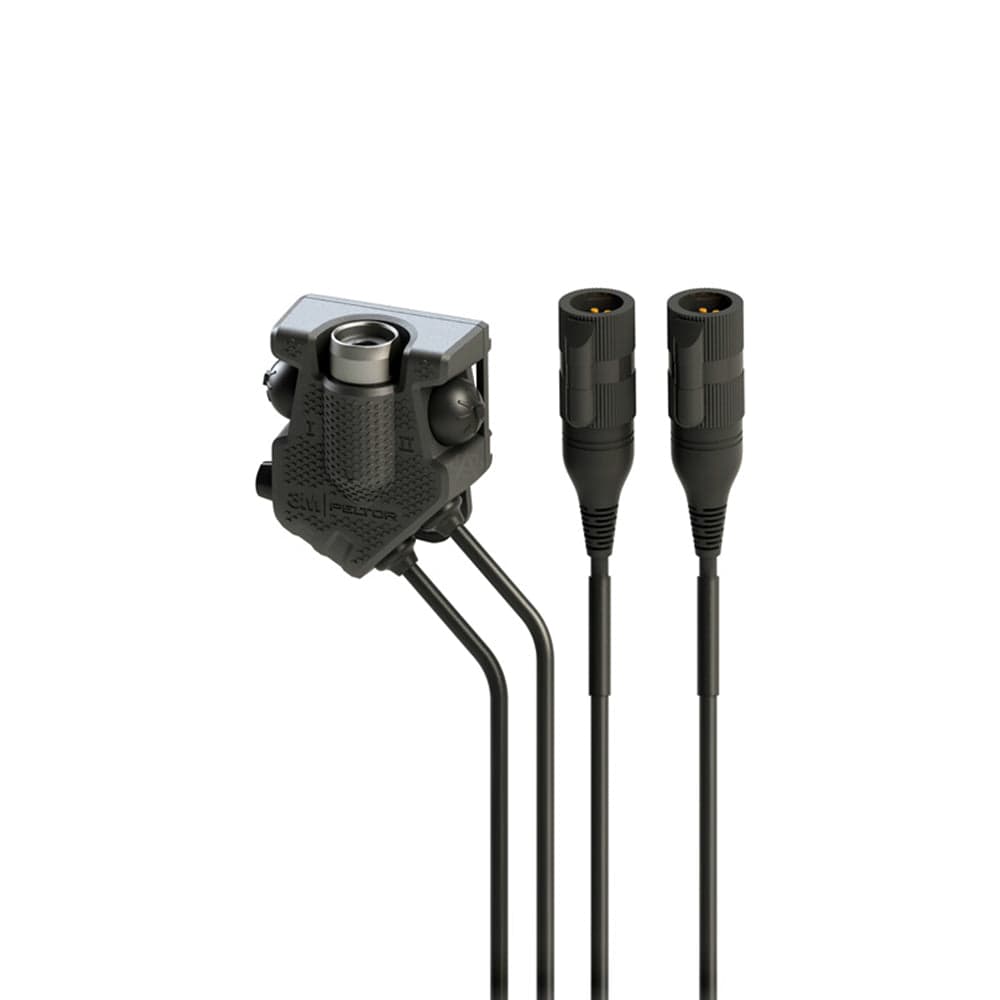

• Coordinate Multi-Channel Comms via 2-Button Operation: This adapter uses a dedicated two-button design to manage communication on two single channels or one multi-channel radio. You can talk to different teams or frequencies instantly without swapping cables or adjusting your headset in the middle of a mission.
• Control Traffic with Mixed or Single Audio Modes: A manual toggle switch lets you choose to hear radio traffic in both ears (Mix) or split between the left and right (Single). The "Mix" setting is vital for high-noise zones, delivering clear audio to both ears so you never miss an incoming transmission during an engagement.

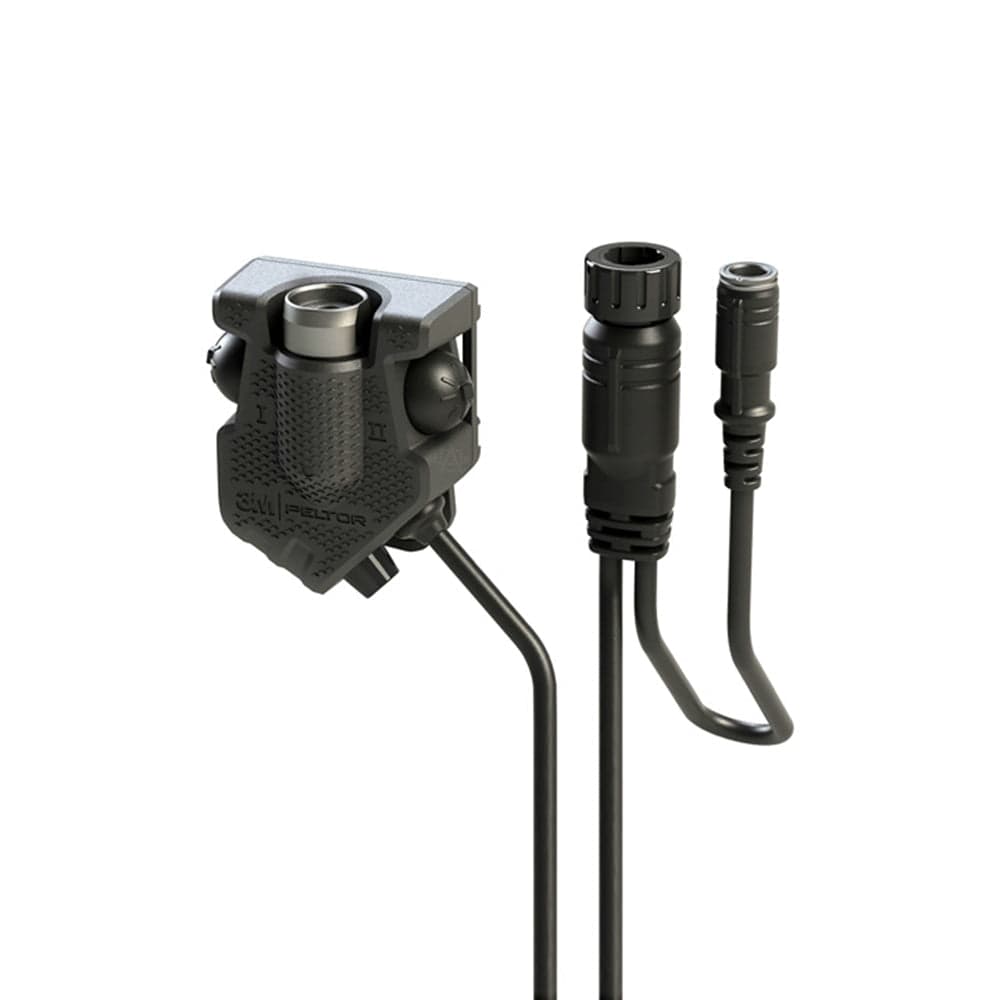

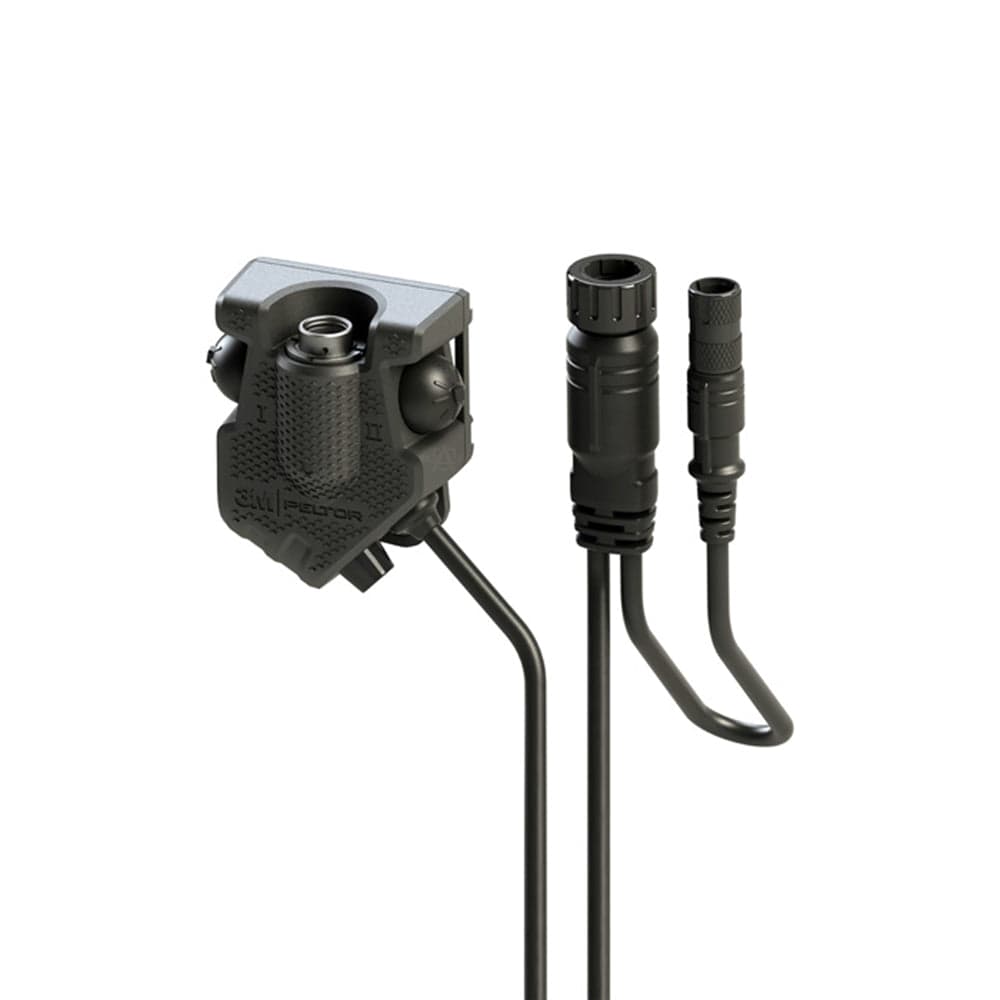

• Bridge Data and Voice with the Integrated EUD Interface: Select models feature a dedicated port for End-User Devices (EUD), allowing you to connect smartphones or tablets for data communication via a separate cable. This gives you the tactical advantage of using situational awareness tools like ATAK alongside your standard voice comms.
• Maximize Gear Space with a 1.18" Small Footprint: This non-powered unit measures approximately 2.17" x 3.15" x 1.18", making it one of the smallest dual-comms adapters on your rig. Its compact size prevents snagging on obstacles and saves valuable space on your plate carrier for other critical gear.
• Operate in Any Environment with IP68 Waterproofing: The FL7000 is built to survive immersion in 6.5 feet of saltwater for 30 minutes and is tested to MIL-STD-810H standards. It remains fully functional in extreme temperatures ranging from -40°F to 131°F, ensuring your comms never fail due to rain, dust, or desert heat.

3M Peltor FL7000 Review

3M Peltor FL7000 Features & Specifications

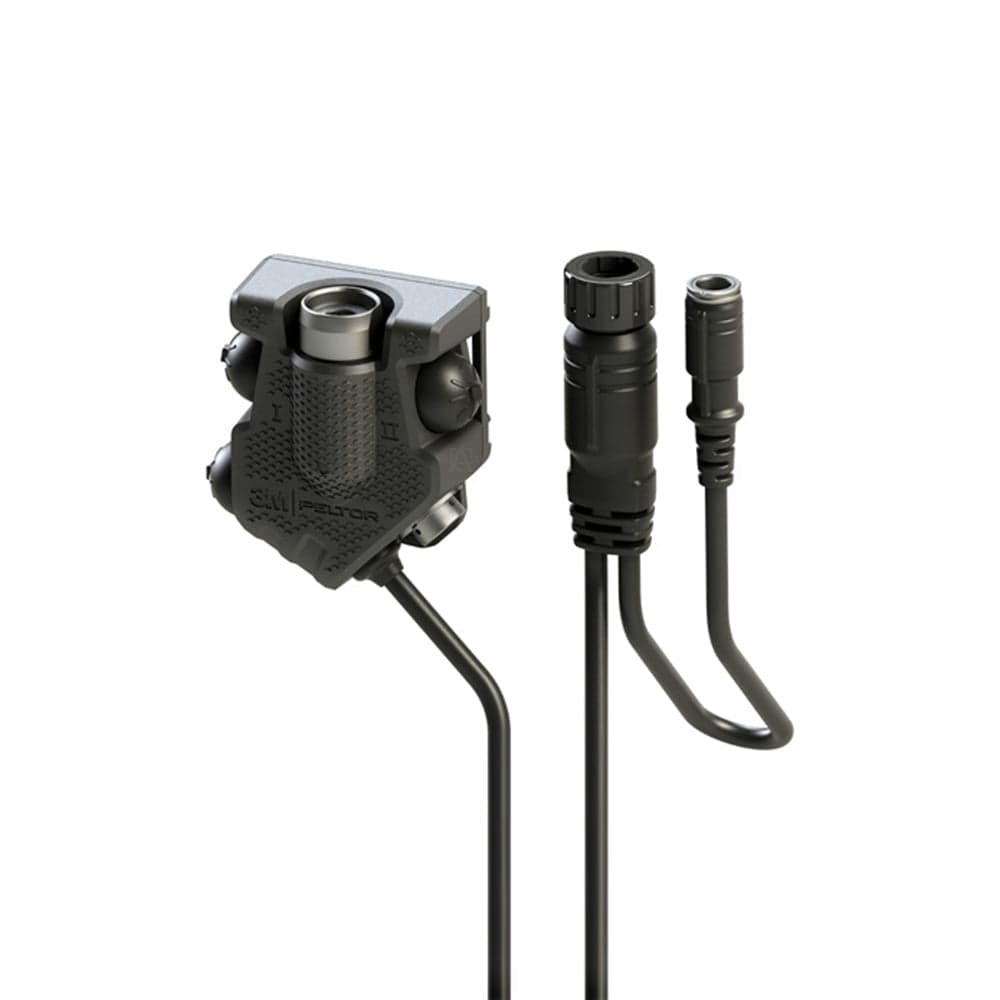

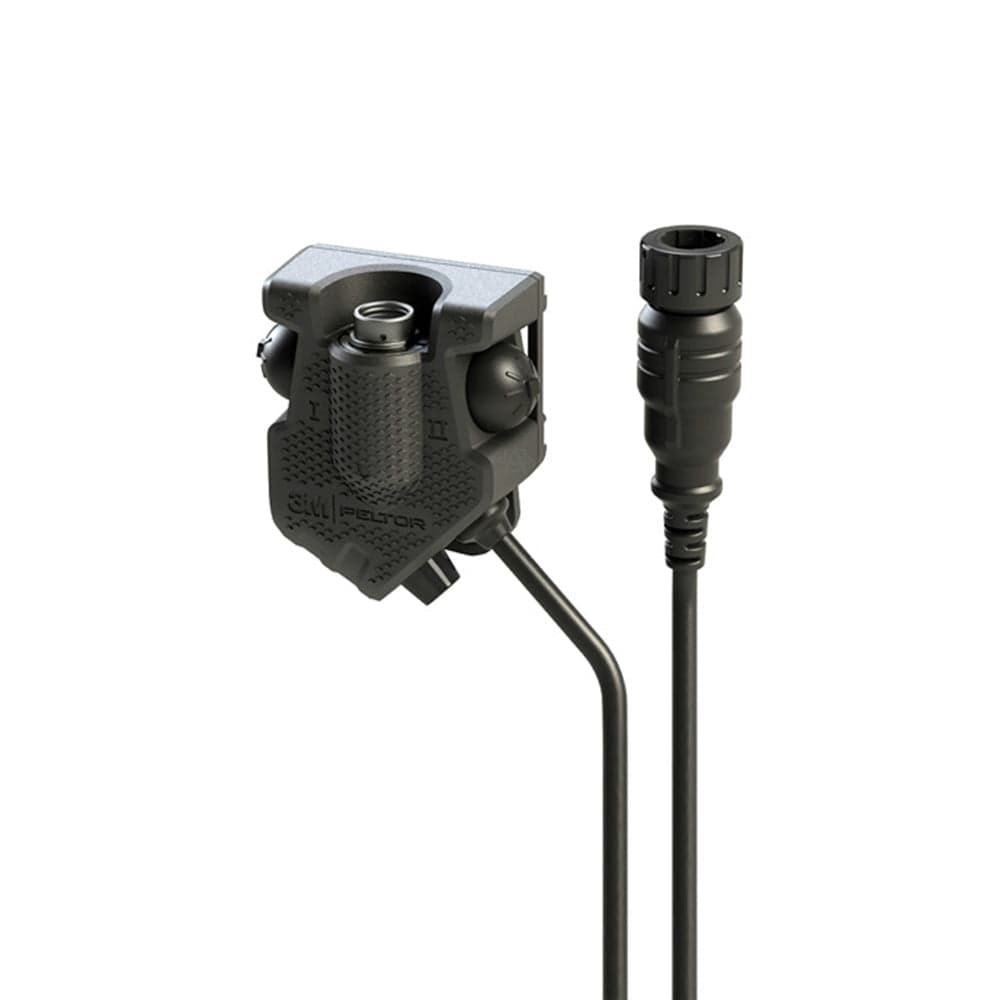

The 3M Peltor FL7000 Series Dual Push-to-Talk (PTT) Adapter is an essential hub for tactical operators who need to coordinate complex communications across multiple teams. Unlike standard single-channel adapters, this non-powered unit allows you to manage multi-channel or dual single-channel radios through a single Peltor ComTac headset without the added weight or failure points of batteries. Its rugged, IP68-rated design ensures your comms remain active in the most extreme conditions. Select models also feature a specialized EUD Interface to bridge traditional voice traffic with modern digital mission data like ATAK.

Key Features

• Multi-Comm Operation: Features two dedicated buttons to manage communication on separate radio channels or one multi-channel radio simultaneously.
• Audio Management: Includes a manual toggle switch to select between Mix mode (audio heard in both ears) or Single mode (audio split between left and right) for better situational awareness.

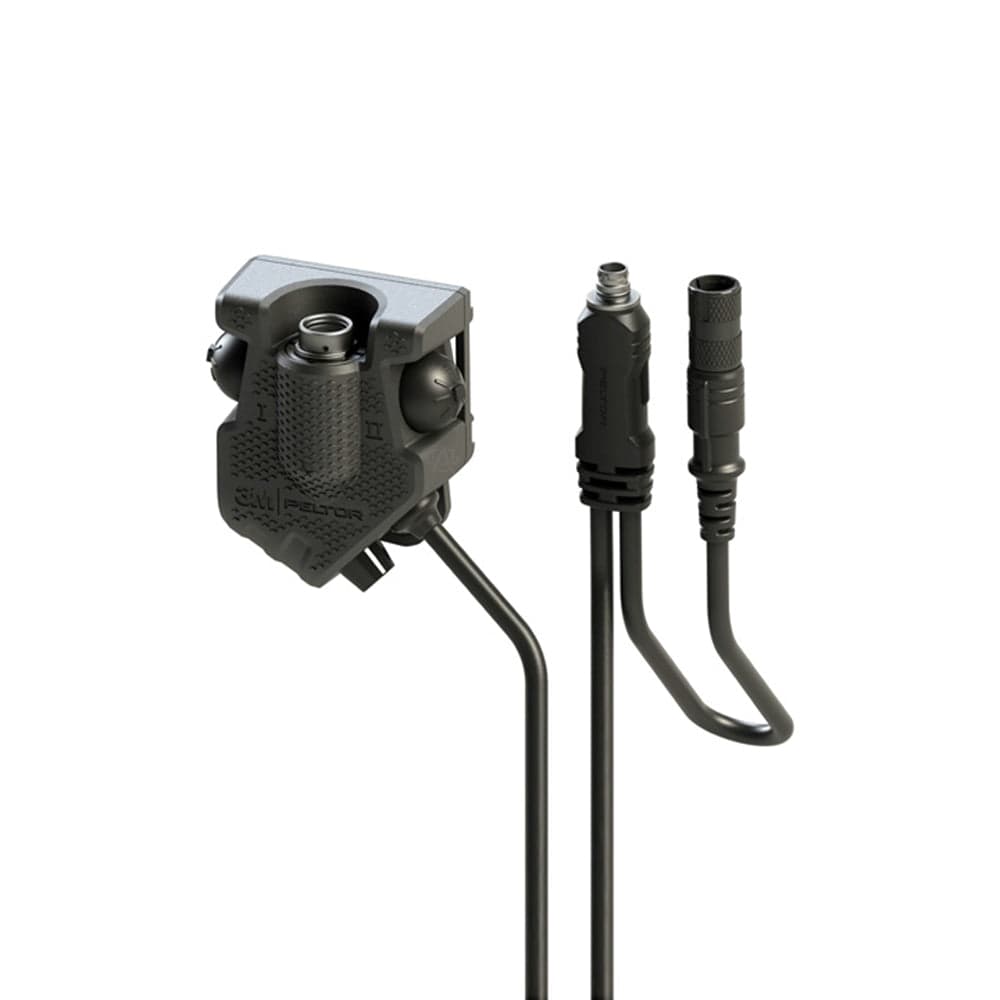

• EUD Interface: Integrated data port on select models allows for direct connection to smartphones or tablets for situational awareness apps via a separate cable.
• Headset Compatibility: Specifically engineered to work with Peltor ComTac series headsets for a plug-and-play tactical setup.
• Radio Compatibility: Supports a wide range of professional radios, including the L3Harris AN/PRC-163, AN/PRC-152A, AN/PRC-148C, Motorola APX7000, and TrellisWare TW-950.

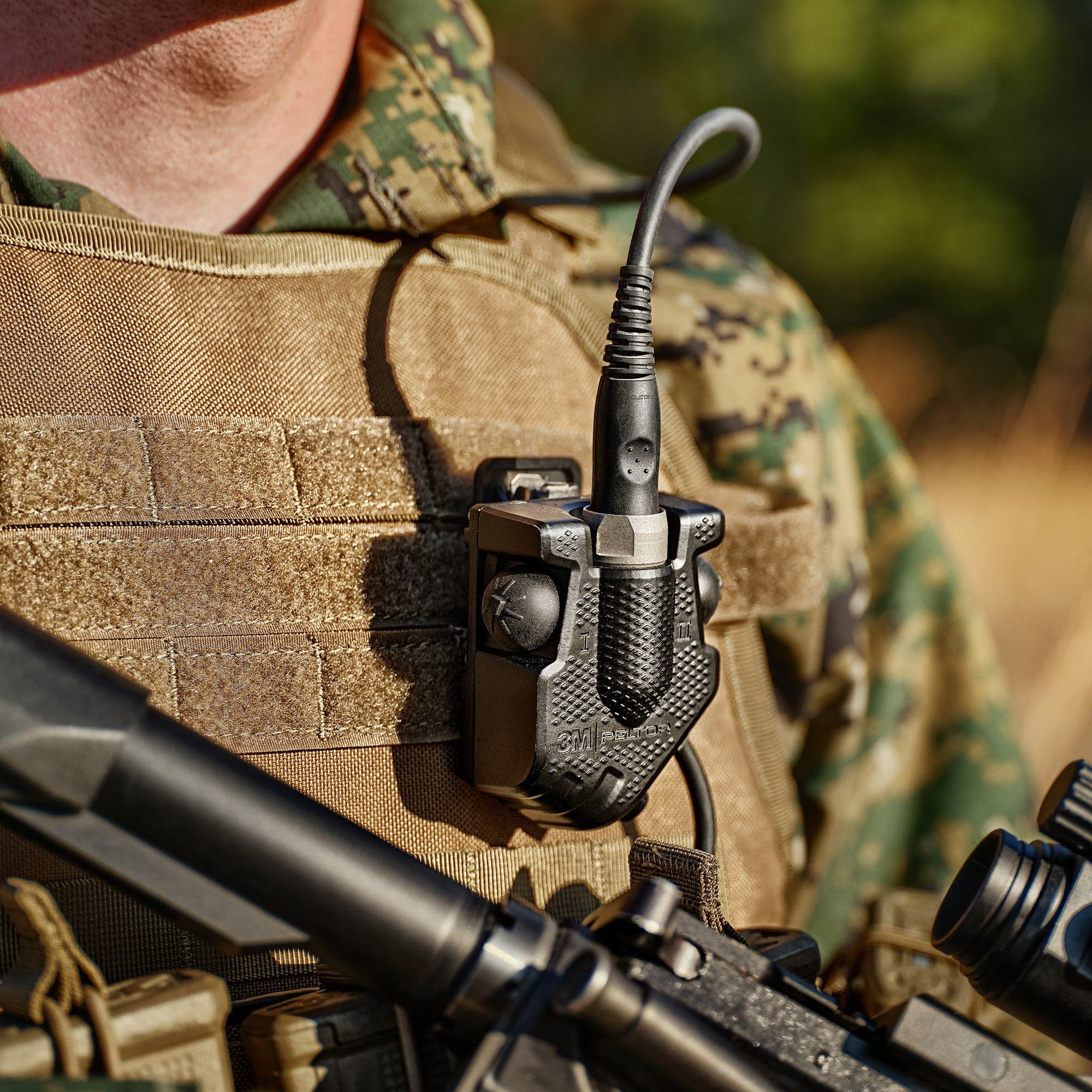

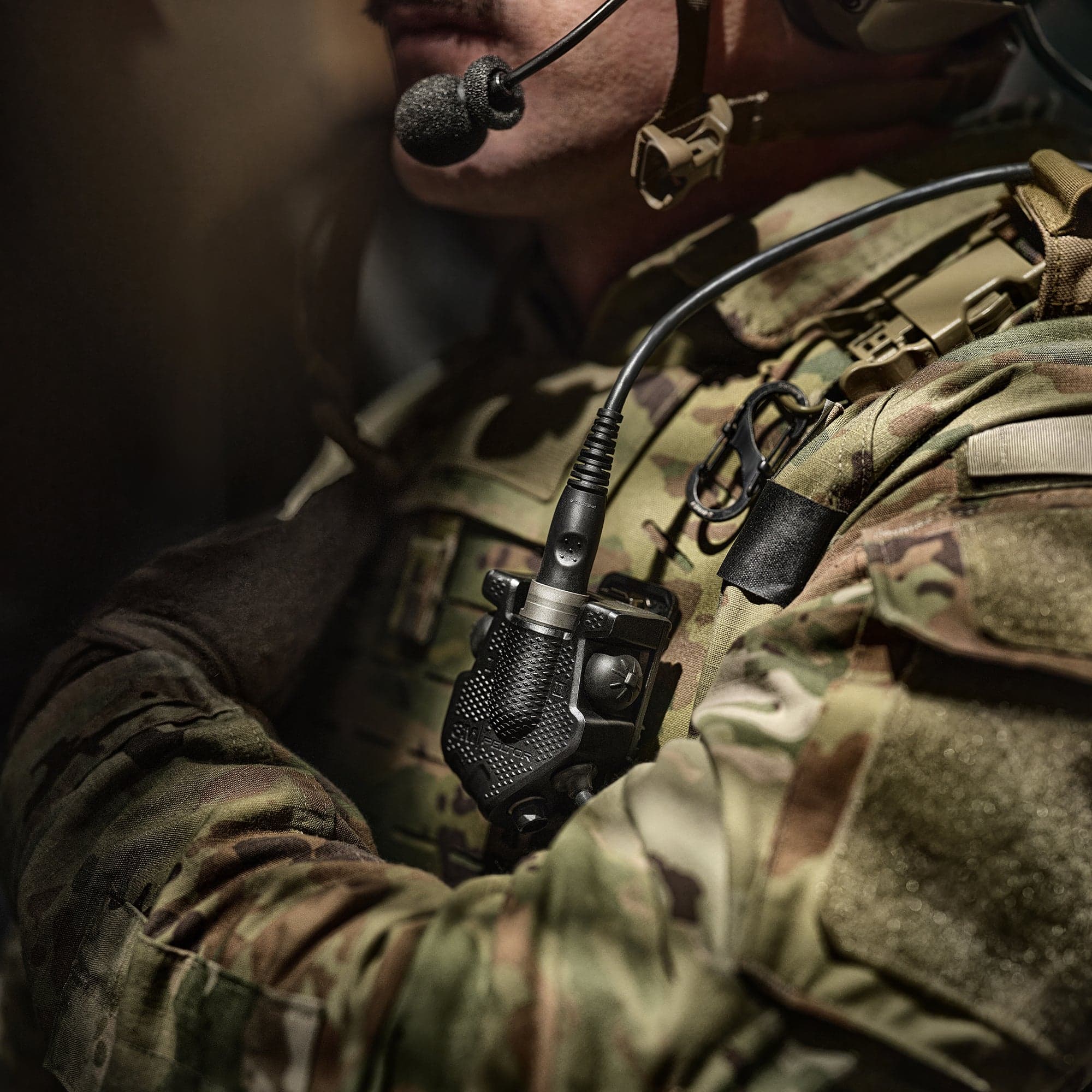

• Mounting Versatility: Comes with multiple attachment options, including a rotatable clip, fixed clip, or zip tie loops for secure placement on a plate carrier or chest rig.

Specifications

• Waterproofing: IP68 rated, tested to withstand saltwater immersion at 2 meters for 30 minutes.
• Military Standards: Tested in accordance with MIL-STD-810H for environmental performance and MIL-STD-461G for electromagnetic interference.
• Dimensions: Approximately 2.17" x 3.15" x 1.18" (55mm x 80mm x 30mm).
• Operating Temperature: From -40°F to 131°F (-40°C to 55°C).
• Storage Temperature: Ranges from -67°F to 159.8°F for short-term and -4°F to 104°F for long-term storage.
• Cable Length: Standard radio downlead length is approximately 25.6 inches (650 mm).
• Product Lifetime: Recommended replacement within 5 years of manufacture.
• Housing Material: Durable PA (Polyamide).
• Power Source: Passive, non-powered design.

What's in the box of the FL7000 Series Push-to-Talk Adapter?

• (1) 3M Peltor FL7000 Series Dual PTT Adapter
• (1) Rotatable Attachment Clip (TKD5011/SP)
• (1) Fixed Attachment Clip (TKD8003/1)
• (1) User Instruction Manual

3M Peltor Dual Push-to-Talk Adapter FAQs

What is a PTT?

PTT stands for "Push-to-Talk". It is a remote button used to control your radio. You press the button when you want to speak and let go when you are done listening.

What does this adapter do?

The Peltor FL7000 series push-to-talk adapter connects your tactical headset to your radios. It is special because it lets you talk on two different radio lines at the same time using just one device.

What are multi-channel and single-channel radios?

A single-channel radio lets you talk to one group of people. A multi-channel radio can handle more than one group at once. This Peltor Dual PTT Adapter works with either two separate single radios or one radio that has many channels.

What is the difference between the 5-pin and 10-pin connectors?

The 5-pin is the standard plug for most headsets used in the USA. The 10-pin is a special plug often used for international systems. The 10-pin version is also able to share power from your radio to help run your headset.

What does the Mix or Single audio switch do?

This switch lets you choose how you hear your team. "Mix" sends all sounds to both ears. "Single" splits the sound so you hear one radio in your left ear and the other in your right ear. This helps you tell who is talking when two people speak at once.

What is the EUD interface?

EUD stands for "End User Device". It is a special plug on some models that lets you connect a smartphone or tablet. This is used for sending digital data or maps while you use your radio for voice.

Which radios work with this PTT?

The 3M Peltor FL7000 PTT works with many professional radios used by police and military. It is compatible with models like the L3Harris AN/PRC-163, AN/PRC-152A, AN/PRC-148C, and Motorola APX Series.

What headsets can I use?

The Peltor FL7000 Push-to-talk adapter is made to work perfectly with 3M Peltor ComTac headsets. It uses the correct plugs to make sure your sound is clear and the connection stays waterproof.

Why is the "small footprint" such a big deal?

"Small footprint" means the device is very tiny. It is only about 2 inches by 3 inches in size. Because it is so small, it stays out of your way and will not snag on your gear or environment while you are moving.

Where can I purchase the 3M Peltor FL7000?

If you are looking for the 3M Peltor FL7000 for sale, the best place to purchase is directly from Atomic Defense. As an authorized dealer of 3M products, Atomic Defense ensures you receive top-quality, genuine gear that meets strict performance standards for critical communication. By choosing an established partner like Atomic Defense for your 3M Peltor FL7000 Dual PTT Adapter for sale, you get reliable, knowledgeable customer support and expert assistance with any inquiries about your tactical setup.
