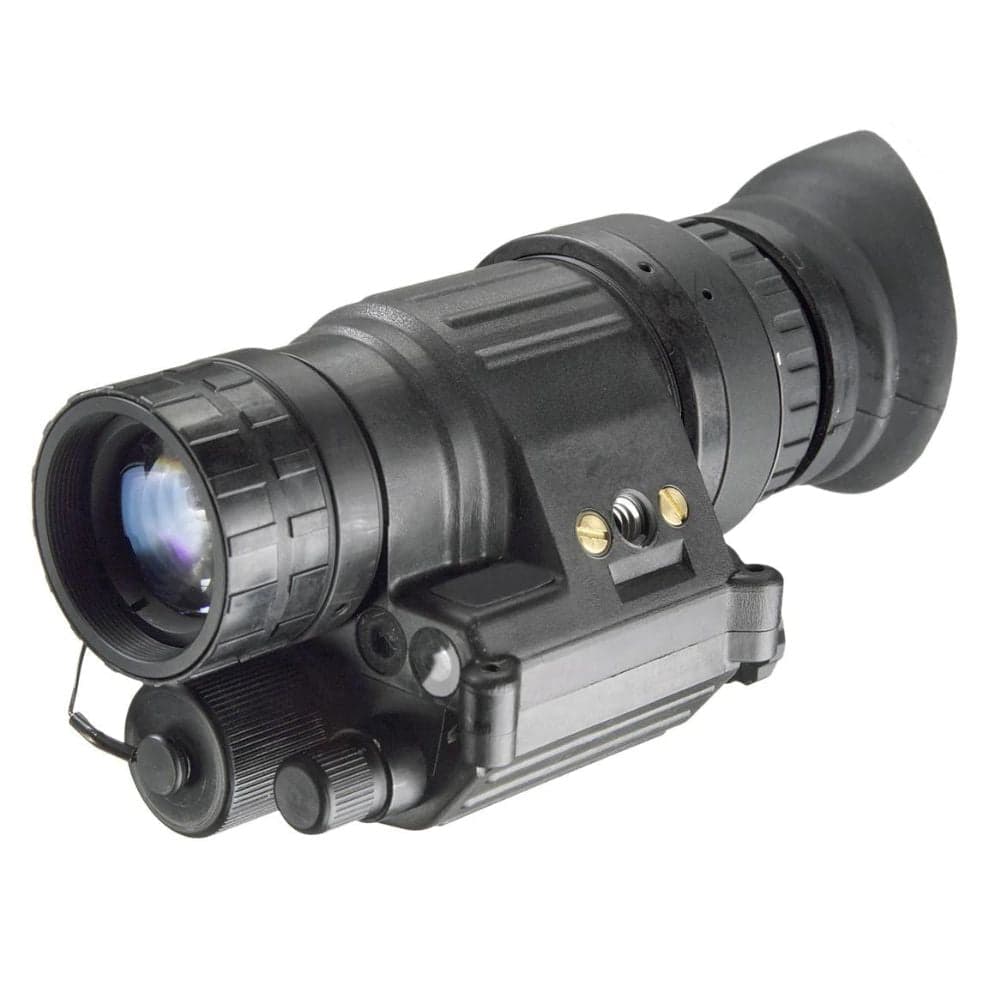

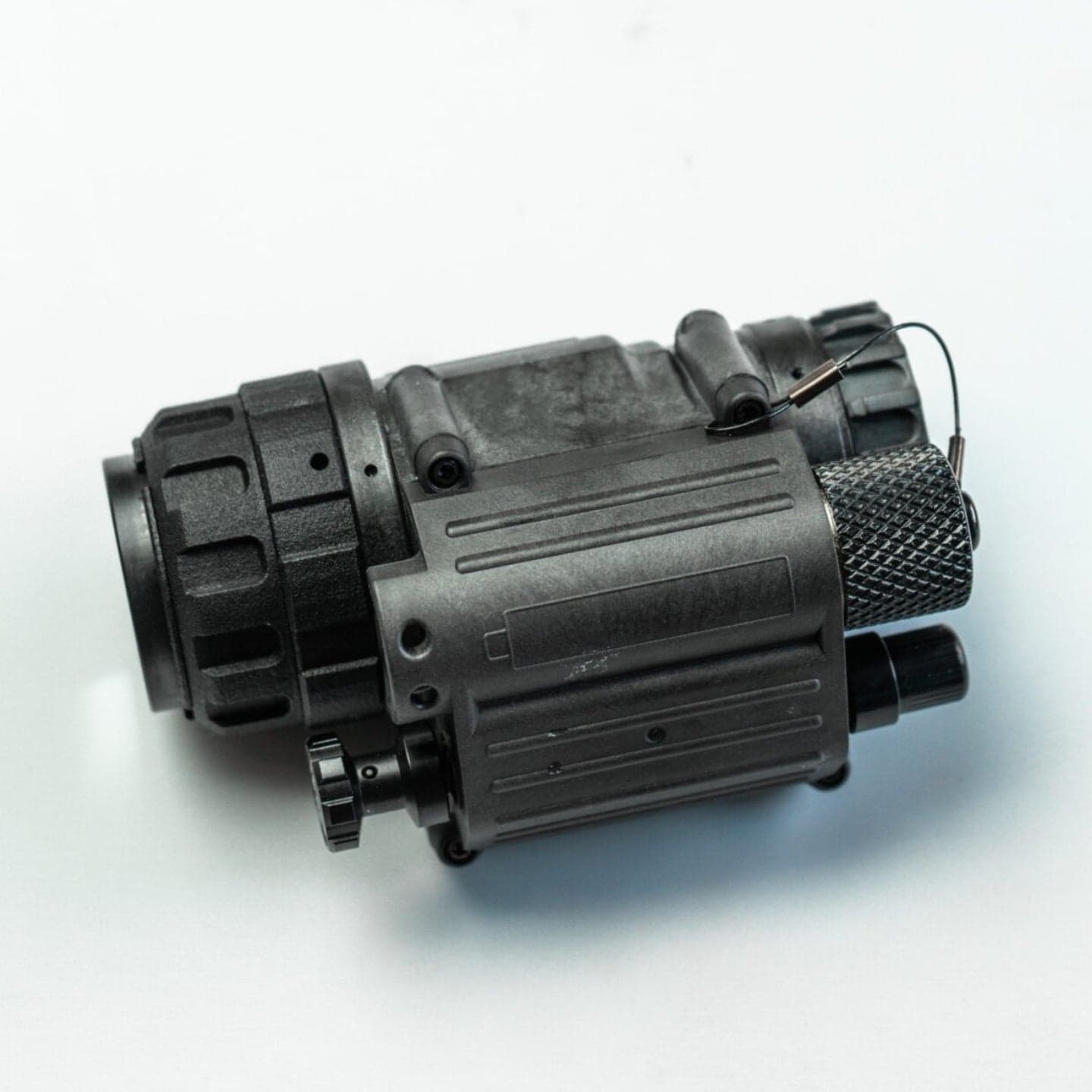

AN/PVS-14 Gen 3 Night Vision: The Professional White Phosphor Monocular to See Clearly and Identify Targets in Total Darkness
- The AN/PVS-14 is the industry-standard monocular night vision device used by the U.S. Military and NATO allies to dominate the dark. This Mil-Spec NVG provides elite situational awareness for search and rescue, tactical movements, and night hunting. You can mount it to your helmet or weapon to maintain a clear view of the field in nearly total darkness.
- Works from -60°F to 120°F: Built for the Elements: This PVS-14 is built to work in freezing mountain snow or blistering desert heat without fogging up or shutting down. You can trust your gear to stay clear and functional during heavy rain or high-humidity missions.
- See in High-Definition Gen 3 White Phosphor: Ditch the Fuzzy Green Image: These advanced intensifier tubes show the world in crisp black and white instead of the old-school green glow. The PVS 14 white phosphor upgrade gives you much better depth perception, making it easier to spot hidden targets and navigate rough ground in total darkness.
- Dial in Your Perfect View (Manual Gain Control) for Total Brightness Control: Stop squinting in low light or being blinded by sudden bright spots. This feature lets you turn the brightness up or down with a simple knob so you can see every hidden detail in the woods without straining your eyes.
- System Options Available: For a more budget-friendly choice, the MH-14 housing kit provides a reliable auto-gain system compatible with standard PVS-14 components. For users demanding peak performance, the RVM-14 is an upgraded aluminum monocular that is 30% lighter than a standard PVS-14 and offers over 90 hours of battery life.
PVS-14 Review
What are some common accessories to add to the PVS-14?
Recommended Helmets
- Galvion Caiman Ballistic: Choose this for a tough, mission-ready shell that is built to support the weight of your PVS14 without shifting or wobbling.
- Ops-Core FAST SF Gen 2: Pick this if you want the lightest setup possible. It cuts down on neck fatigue and provides a rock-solid mounting point for fast, dynamic movement.
- Team Wendy Exfil SL: This is best for a streamlined fit. The built-in mount makes it easy to snap your gear on and head out immediately.
Essential Mounting
- Wilcox J Arm: This is the bridge between your eye and your helmet. It lets you move your PVS 14 night vision goggles exactly where you need them so you can see clearly without straining your neck.
Stability and Balance
- Ops-Core Counterweight: Use this to stop your helmet from tilting forward. It balances the front-heavy PVS 14 night vision so the system feels level and stays in place.
- Team Wendy Counterweight: Specifically designed for Team Wendy helmets, this kit evenly distributes weight to help prevent headaches and neck pain on long nights.
Stealth and Detection
- Agilite Mitznefet: This cover breaks up your silhouette. It hides the round shape of your helmet so you don't give away your position when using the PVS-14 Gen 3 in the woods.
- iRay RH25 V2: This adds thermal "heat vision" to your kit. It helps you spot targets hidden in thick brush or fog that your PVS-14 might not see.
- RIX RIP-3C: This combines heat sensing with a laser pointer. It helps you aim your weapon accurately in total darkness while looking through your PVS 14 NVG.
AN/PVS-14 Features & Specifications
The AN/PVS-14 is the most trusted night vision tool used by professionals because it turns pitch-black environments into clear, navigable scenes. Unlike standard green-tinted goggles, our upgraded white phosphor versions provide a high-definition view that makes it easy to identify people, animals, or obstacles from a distance. This single-eye system is essential because it leaves your other eye free to maintain its natural night vision, giving you total situational awareness in high-stakes environments.
PVS 14 Gen 3 Key Features
- Advanced White Phosphor Tubes: You can choose between different high-performance intensifier tubes like the L3Harris PVS 14 unfilmed options or Elbit thin-filmed tubes. These tubes provide a crisp black and white image that is much easier on your eyes than old-school green night vision.
- Professional Mil-Spec Lenses: This system uses high-quality f/1.2 objective lenses and 26mm eyepieces. These specialized lenses are built to pull in every bit of available light while staying clear from edge to edge without any blurry distortion.
- Total Brightness Control: The manual gain knob on the L3Harris M914A style housing lets you dial the light levels up or down with your fingers. You can dim the image when you are near streetlights or boost the power when navigating deep, dark woods.
- Versatile Mounting Options: This NVG PVS 14 monocular is built to move with you. You can wear it on a head harness, snap it onto a ballistic helmet, or even mount it behind a red dot sight on your rifle as part of a PVS 14 kit.
- Built for Combat: This PVS14 NVG system is fully waterproof and shock-resistant. It is designed to keep working through heavy rain, thick mud, and rough handling in the field without failing.
PVS 14 Gen 3 Specifications
- Magnification: 1x (Shows everything at its true size)
- Field of View: 40 degrees
- Focus Range: 9.8 inches to infinity
- Diopter Adjustment: +2 to -6 (Adjusts to match your specific eyesight)
- Battery Type: One AA battery
- Battery Life: Up to 50 hours of continuous use
- Weight: 12.4 ounces (Lightweight at less than one pound)
- Operating Temperature: -60°F to 120°F
- Waterproof Rating: Safe in water up to 66 feet deep for one hour
What's in the box of the PVS-14?
- (1) AN/PVS-14 night vision monocular
- (1) Pelican-style hard case
- (1) Set of spec sheets for your specific unit
PVS-14 night vision FAQs
What is the AN/PVS-14?
The PVS-14 is a small tool that lets you see clearly when it is very dark. You can hold it in your hand, mount it to a rifle, or wear it on a helmet. It is the most popular night vision tool because it is light and very tough.
How do I know the night vision is built correctly?
Every AN PVS 14 is put through precision alignment and nitrogen purging on professional Hoffman ANV-126A equipment. This process provides a clear image without eye strain so the gear is ready for real-world use.
Why is it bad to use rechargeable batteries in the PVS-14?
Do not use batteries that you charge over and over. These batteries often leak acid. This acid can eat the metal parts inside your PVS 14 night vision and break it forever.
What type of batteries should I use for my PVS14?
It is highly recommended to use lithium AA batteries. Lithium batteries are very stable and they do not leak like other types. They also work better in extreme cold or heat, ensuring your PVS14 NVG stays powered when it matters most.
What should I do if my NVG PVS 14 does not turn on?
First, check the battery direction. Look inside the battery cap to see which way the plus (+) and minus (-) ends go. If that does not work, replace the current battery with a brand-new lithium one from your PVS 14 kit.
What is FOM in night vision?
FOM stands for Figure of Merit. Think of it like a final grade for your PVS 14 tube. It is a number we get by multiplying how sharp the picture is by how clean it looks. A higher FOM number means the tube is better at showing you details in the dark.
What does SNR mean?
SNR stands for Signal-to-Noise Ratio. This measures how much "good light" the tube sees compared to the "snow" or graininess you see in the dark. A high SNR means you get a smooth, clear picture instead of a fuzzy one when it is pitch black outside.
Can I use my night vision during the day?
No. You should never turn on your PVS-14 gen 3 in bright light. Even with the protective cap on, bright sun can burn the PVS 14 tube inside. Only use it at night or in very dark rooms.
What is the benefit of the white phosphor view?
The PVS 14 white phosphor shows the world in black and white rather than green. This makes it much easier to see the difference between a person and a tree, providing a much cleaner image for the operator.
How do I keep my gear safe when I am not using it?
Always take the battery out of your PVS-14 night vision if you are going to store it for more than a few days. Keep it in a cool, dry place inside its hard case to prevent damage.
How can I get different housing colors or special lenses?
You can order your AN/PVS-14 in different colors like Tan or Green to match your other gear. We also offer high-end lenses like the RPO 4.0 for a lighter setup or the Boomslang 50-degree lenses for a wider view. For these special orders, you will need to submit a request for a quote here.
What are the different "Zones" in my night vision?
The view through the PVS 14 tube is broken into three circles. Zone 1 is the center where you look most. Zone 2 is the middle ring, and Zone 3 is the outer edge. Most tubes have a few small dark spots in the outer zones, which is normal.
Why does a tube with no dots cost more?
It is very hard to make a PVS 14 tube that is perfectly clear. If a unit has almost zero spots, it is much more expensive. Sometimes users might misspell the name as psv14, but regardless of the name, a clear tube is the sign of a high-end system.
Where can I find an AN/PVS-14 for sale?
You can purchase the AN/PVS-14 for sale directly through Atomic Defense. As an authorized distributor, we ensure that every system is a professional-grade tool ready for immediate field use. When you look for a PVS-14 for sale, you want to know the gear has been handled correctly by experts. Choosing Atomic Defense for your PVS 14 for sale gives you a high-performance device backed by technical support and a full warranty.
