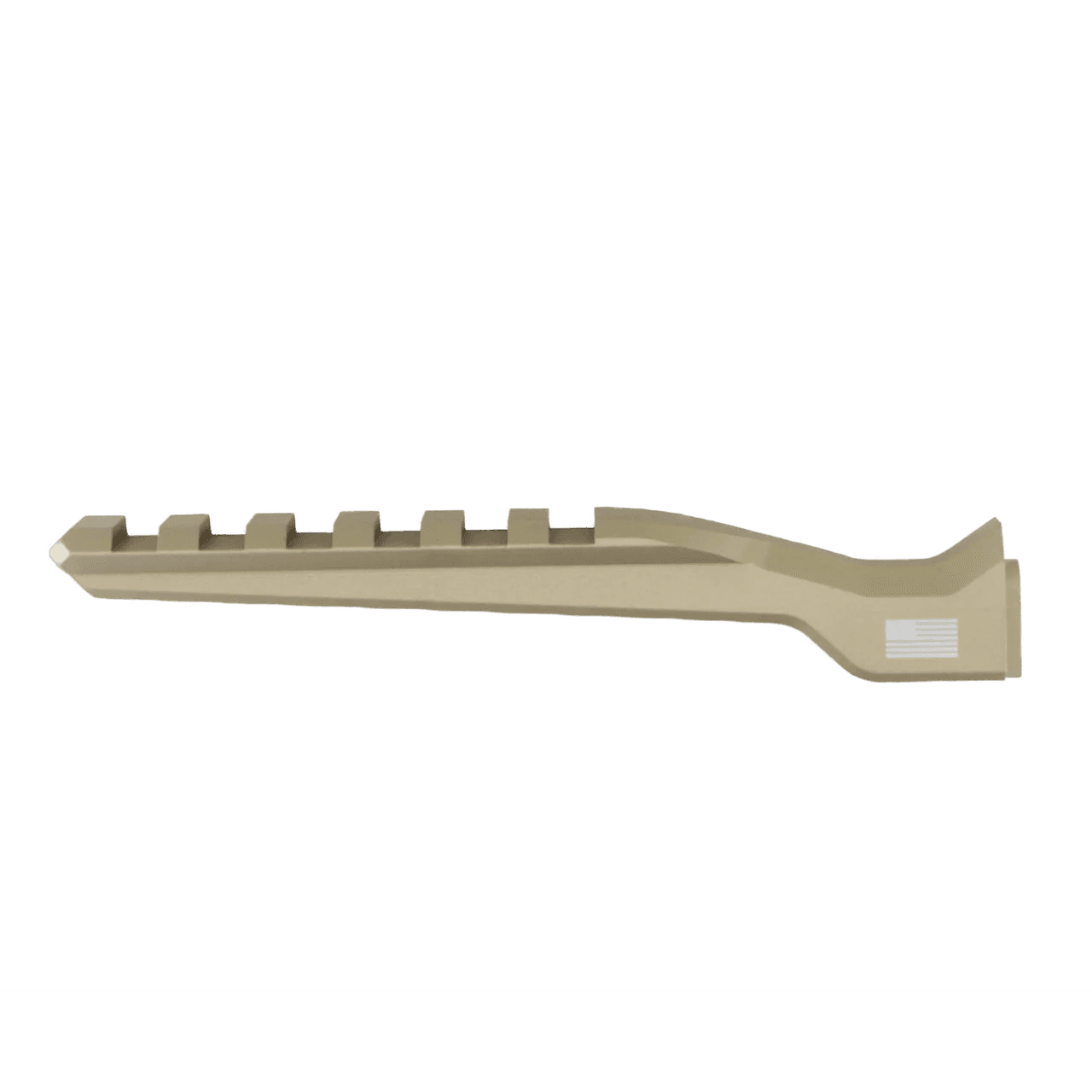

Dot ACRO Mount Diving Board - Holds Zero for IR Lasers - Made in USA

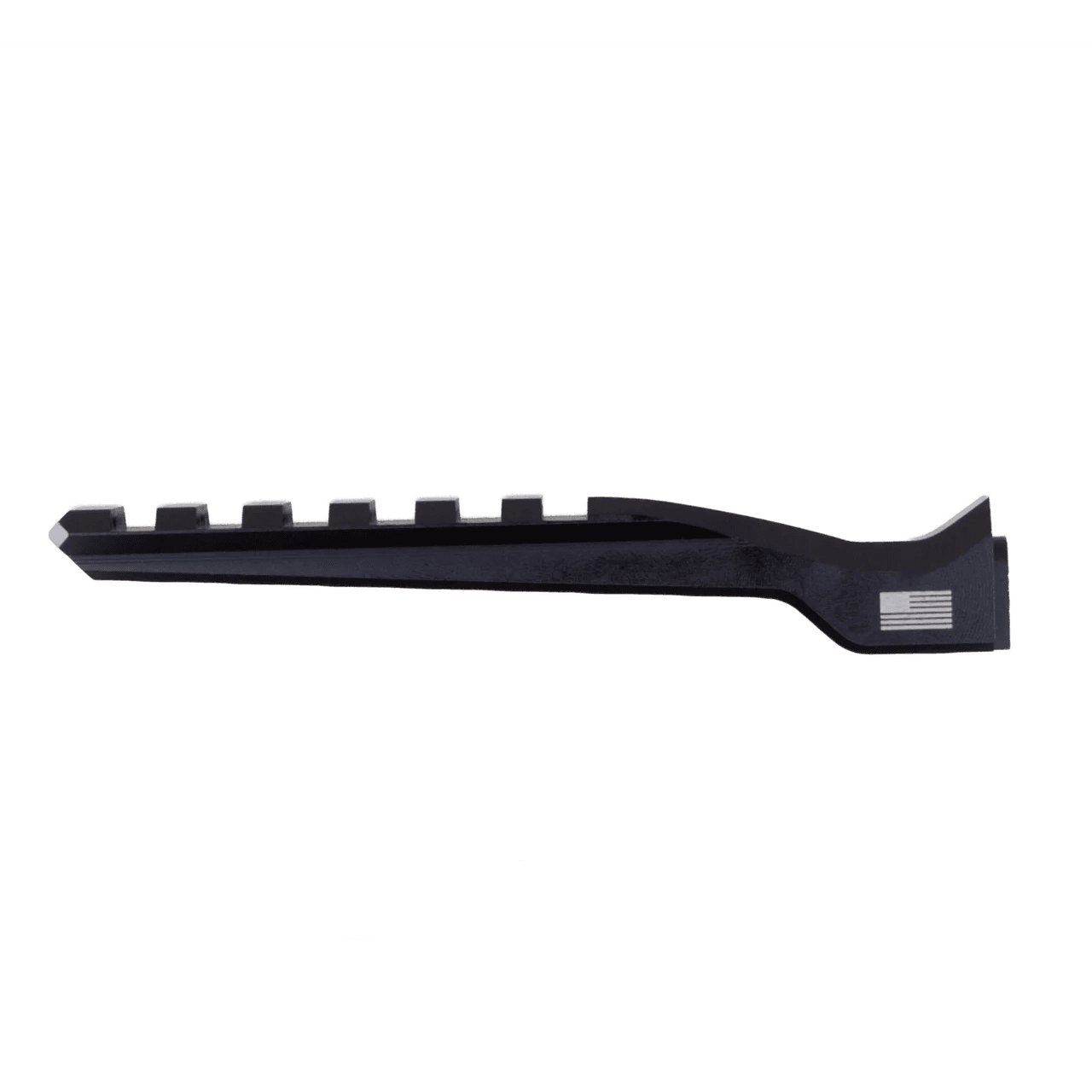

Dot ACRO Mount Diving Board Attachment: The Ultimate Forward Mount to Free Up Handguard Space

• The Dot ACRO Mount Diving Board Attachment is a forward-extension platform designed to reclaim critical rail space on compact PDW and SBR setups. Manufactured in the USA, this mount allows operators to position IR illuminators and thermal devices directly in front of their optic. This configuration ensures a balanced weapon system and maintains a clear line of sight during close-quarters or low-light missions.
• Survive Heavy Impacts with 7075-T6 Aluminum: Machined from high-strength aerospace-grade aluminum, this ACRO Diving Board handles harsh field abuse without bending or shifting zero. It features a Type III MIL-SPEC hardcoat anodized finish to resist deep scratches, moisture, and corrosion in extreme environments.
• Mount Heavy Lasers on a 4.40-Inch Platform: The M1913 Picatinny rail interface provides exactly 4.40 inches of depth and 0.85 inches of width to securely attach your targeting devices. This pushes the laser unit forward, clearing up valuable handguard space so you can maintain a proper grip on short-barreled rifles.
• Align IR Devices Directly with the ACRO Mount Diving Board: This platform connects straight to your existing optic base to keep your laser and red dot on the exact same plane. It completely removes the need to bridge optics across handguard rails, keeping your primary weapon system lightweight and snag-free.

What are some common accessories to add to the DOT ACRO Mount Diving Board?

Optic Integration for the Dot ACRO Mount Diving Board Attachment

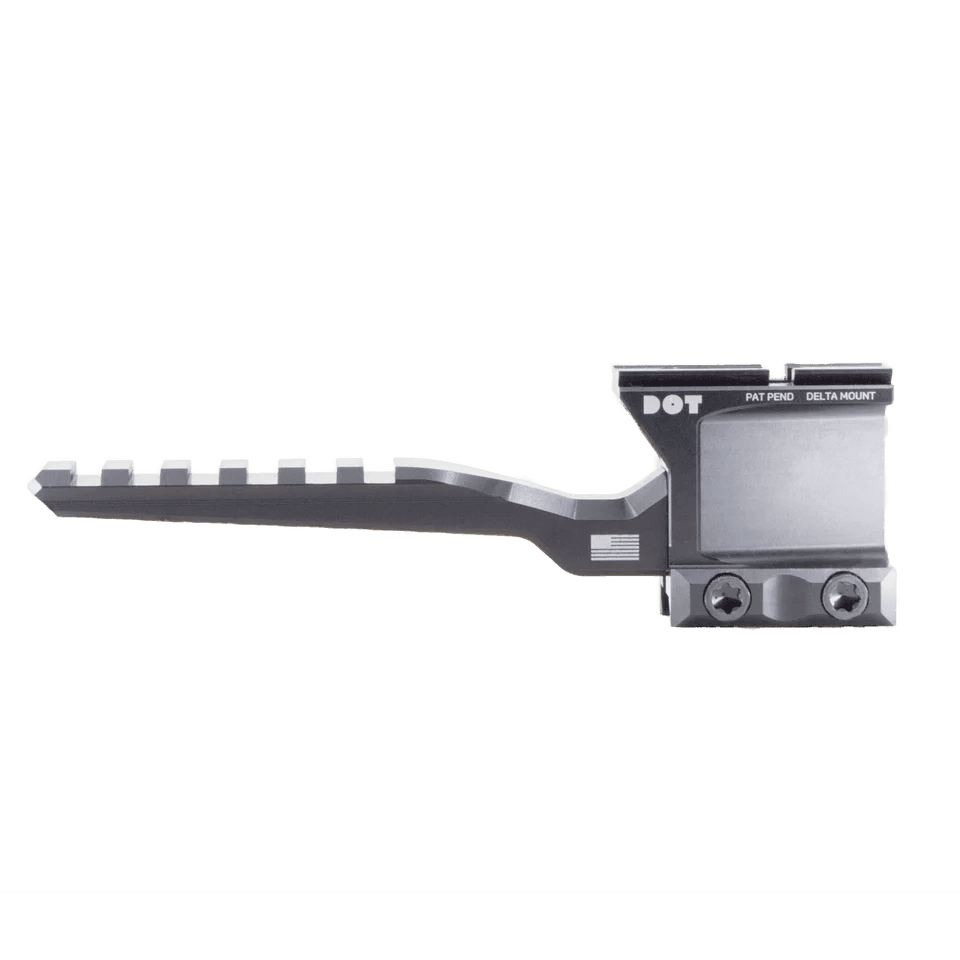

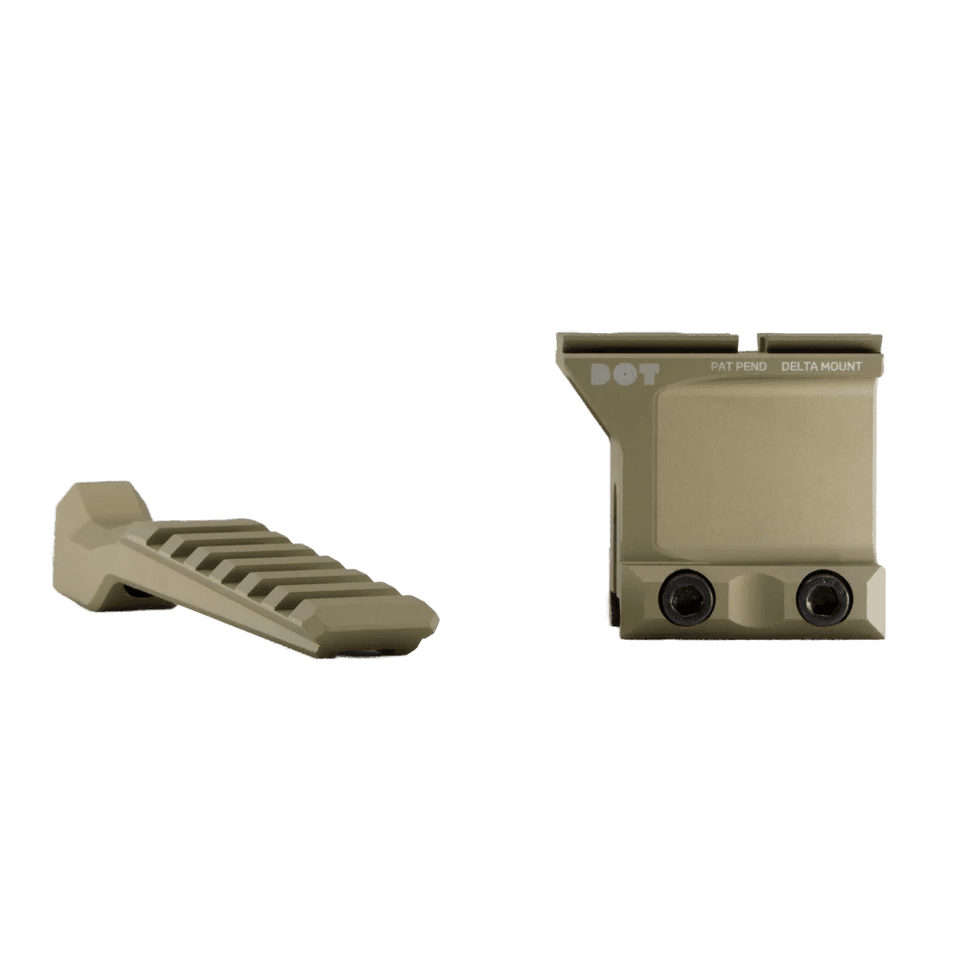

• Delta ACRO Mount: This is the primary optic base required to secure your Aimpoint ACRO to the rifle receiver. It serves as the direct connection point for the Diving Board Attachment, ensuring your primary red dot and forward-mounted laser remain locked together on the exact same visual plane without shifting under recoil.

DOT ACRO Diving Board Features & Specifications

The Dot ACRO Mount Diving Board Attachment perfectly aligns your IR laser and red dot on the same visual plane while reclaiming vital handguard space. Engineered for short-barreled rifles and compact PDWs, this forward-extension platform attaches directly to your optic base to eliminate the need for bridging rails. This provides a rock-solid, zero-holding foundation for heavy aiming devices, allowing you to maintain a proper, unobstructed grip on your weapon system during high-stress operations.

Key Features

• Survive Heavy Impacts with 7075-T6 Aluminum: Machined from aerospace-grade aluminum and protected by a Type III MIL-SPEC hardcoat anodized finish to resist deep scratches, moisture, and extreme field abuse.
• Mount Heavy Lasers on a 4.40-Inch Platform: The integrated M1913 Picatinny rail extends forward to secure targeting devices, instantly freeing up crowded handguard space.
• Align IR Devices Directly with Your Optic: Connects straight to the Delta ACRO Mount to lock your laser and red dot onto the exact same plane, preventing the zero-shift that occurs when bridging upper receivers and handguards.
• Rely on U.S.A. Manufacturing: Built and machined entirely in the United States to ensure reliable, duty-ready performance.

Specifications

Specification

Data

Material

7075-T6 Aluminum

Finish

Type III MIL-SPEC Hardcoat Anodized

Rail Interface

M1913 Picatinny

Depth (Length)

4.40 inches

Width

0.85 inches

Height

1.00 inches

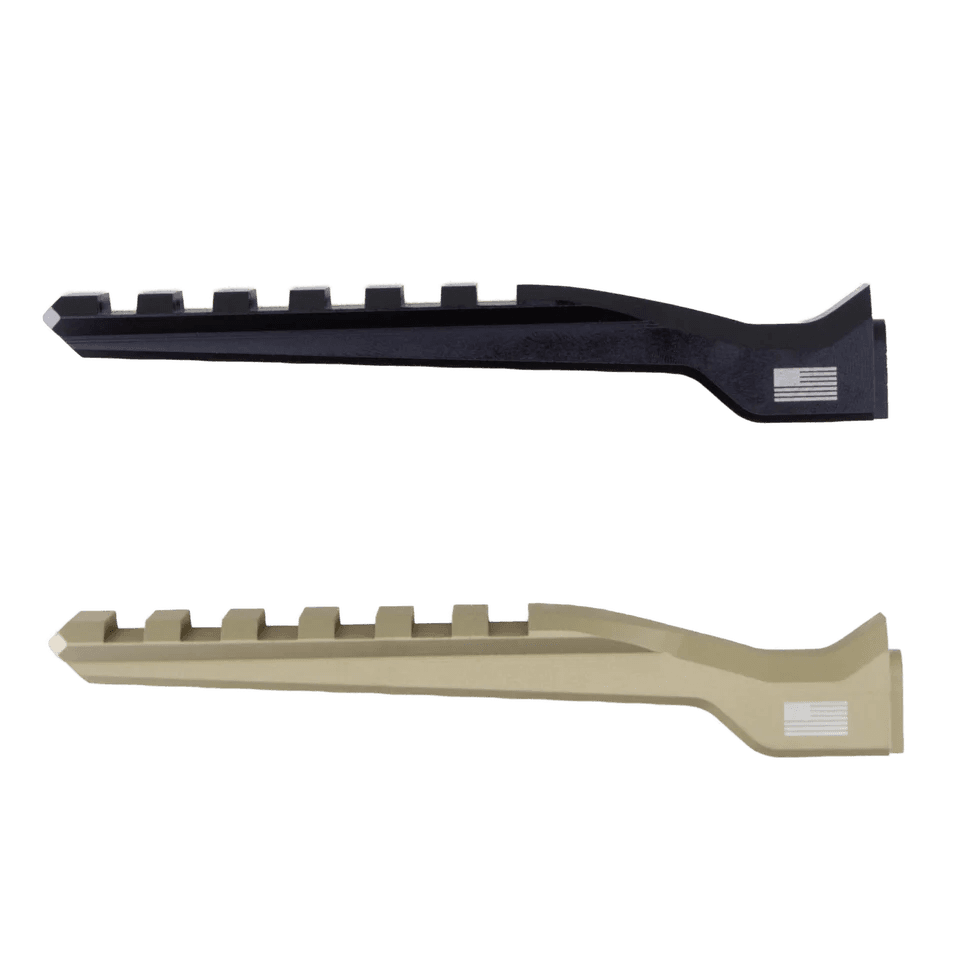

Colors Available

Black, FDE (Flat Dark Earth)

Origin

Manufactured in the U.S.A.

System Compatibility

Delta ACRO Mount

What's in the box of the ACRO Mount Diving Board Attachment?

• (1) Dot ACRO Mount Diving Board Attachment
• (1) Mounting Hardware Kit

ACRO Diving Board FAQs

What is a red dot riser with forward rail?

It is a special mount for your rifle. It holds your main red dot sight and adds a rail that sticks out the front. This "diving board" gives you extra room to attach other tools without crowding where you put your hands.

Why do I need an IR illuminator rail?

Short rifles do not have a lot of space. An IR illuminator rail gives you a rock-solid place to put your laser or night vision light. It moves the gear forward so you can grip your rifle safely and comfortably.

What fits on the DOT Delta ACRO diving board?

The rail is 4.40 inches long and uses a standard M1913 Picatinny design. This means it fits almost any standard heavy laser, IR illuminator, or thermal targeting device.

How to align a laser with an ACRO P-2 optic?

This mount does the hard work for you. Because the forward rail connects straight to the main optic base, your laser and your ACRO P-2 sit on the exact same piece of metal. You just attach them, and they stay perfectly lined up without shifting.

Where can I purchase the Dot ACRO Mount Diving Board Attachment?

If you are looking to find the Dot ACRO Mount Diving Board Attachment for sale, you can purchase it directly from Atomic Defense. We provide helpful customer support and guarantee you receive a high-quality, duty-ready mount for your rifle.
