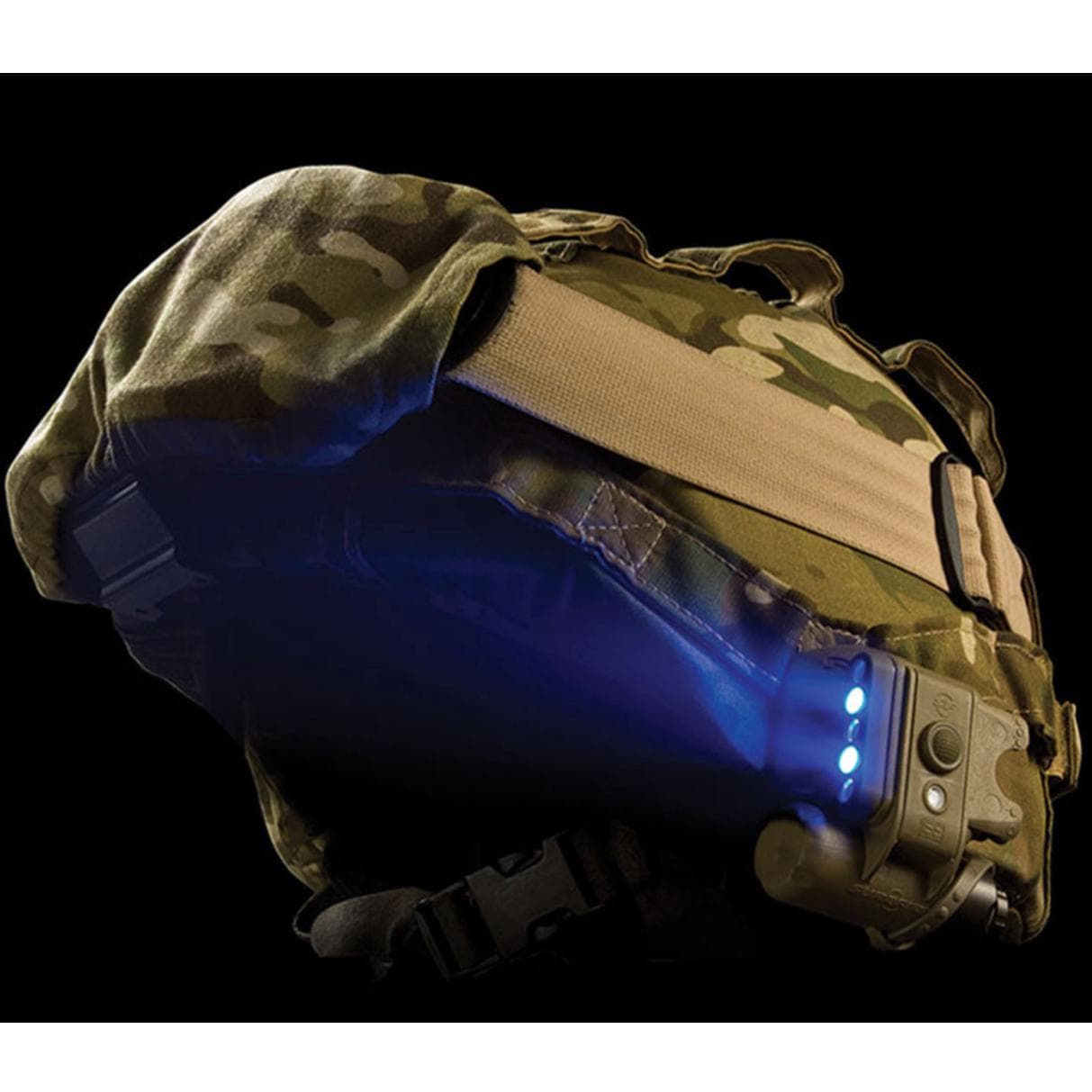

Go Head To Head With Darkness. The compact, variable-output HL1 HelmetLight features primary and secondary LEDs and one infrared Identify Friend or Foe (IFF) beacon.
The primary LEDs are perfect for general-purpose close-work illumination. The colored secondary LEDs serve the same purpose but in a low-signature, dark-adapted-vision-friendly color.

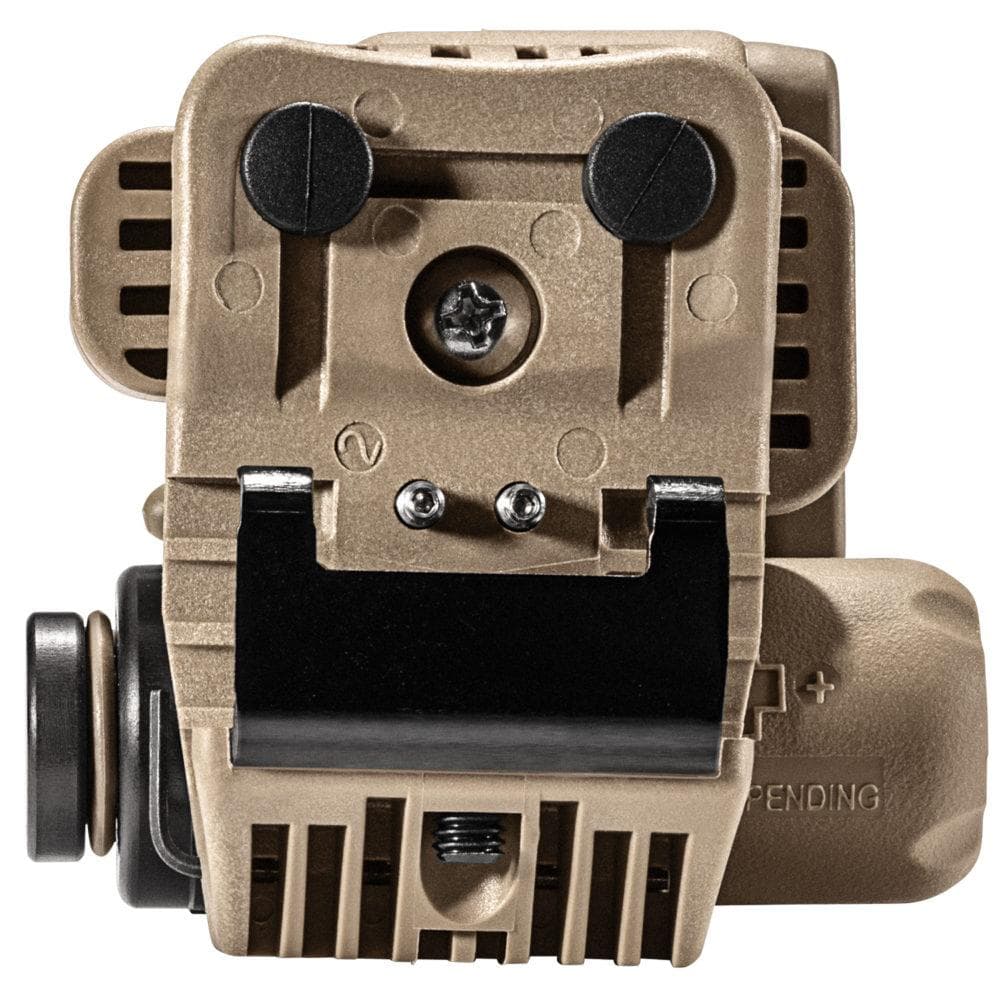

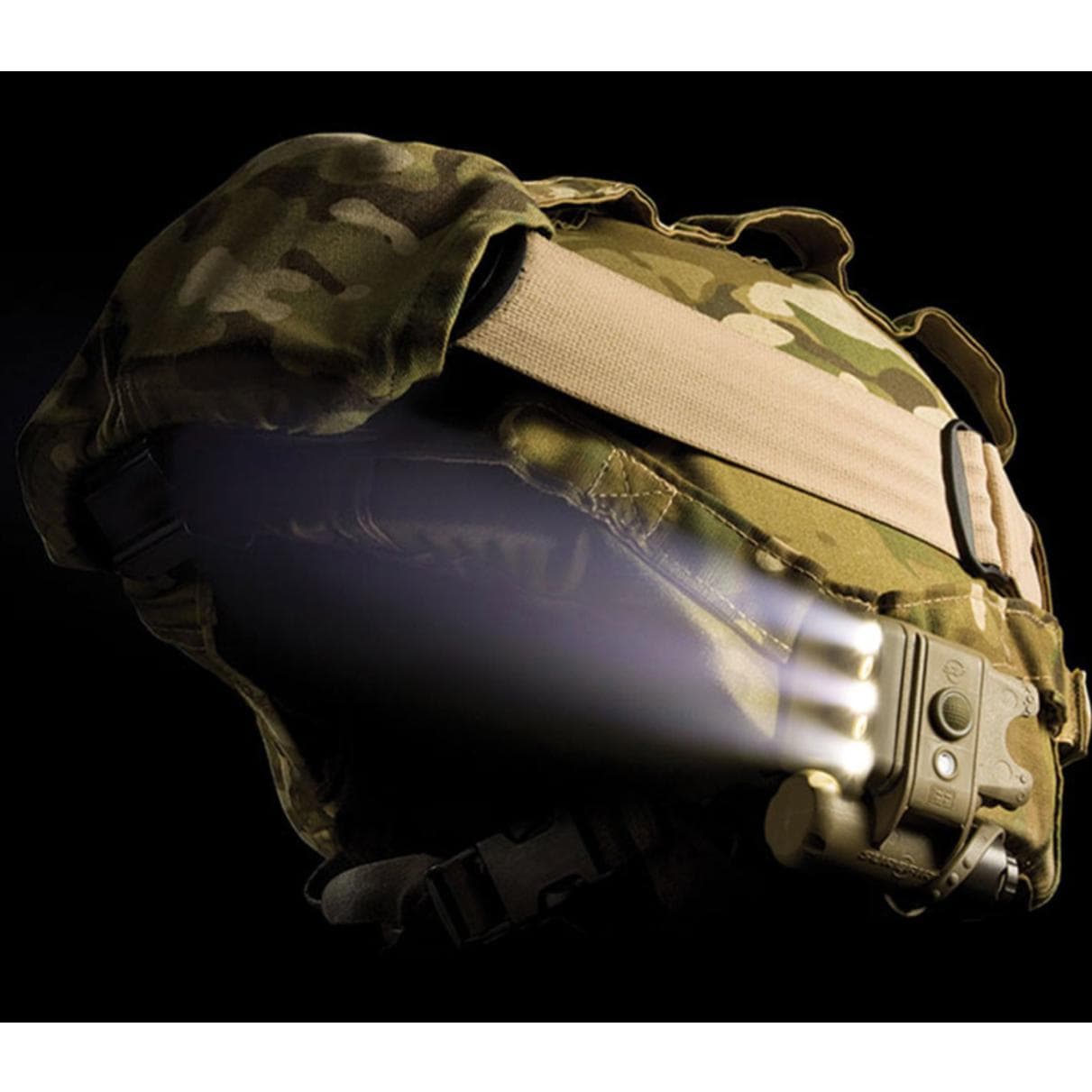

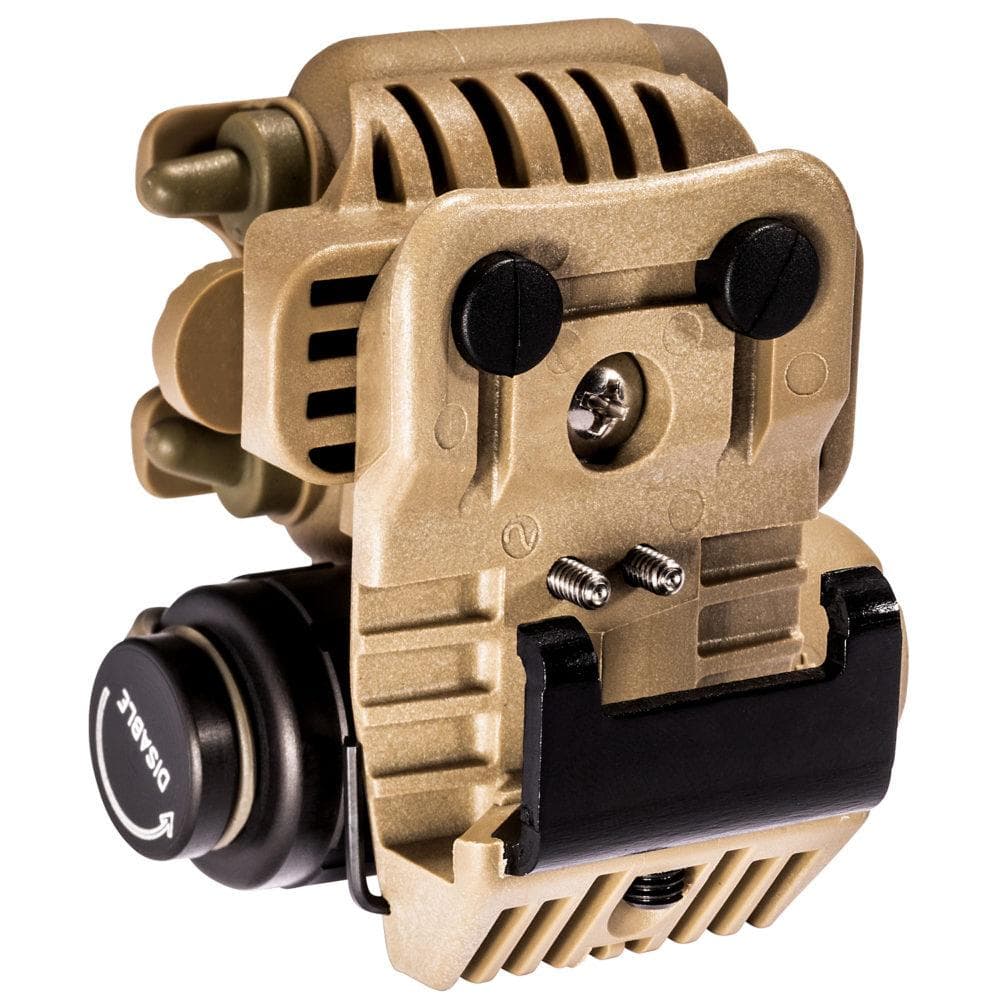

Its durable, watertight polymer body attaches to any Modular Integrated Communications Helmet (MICH) via an included ambidextrous mount with 20 preset positions for true 360-degree rotation. With the mount in place, the HelmetLight can be quickly and securely attached. Pressing a lever on the mount unlocks the light for quick removal. An optional Z71 carry clip mounts the light to any MOLLE or ALICE vest.
The HL1 is a highly versatile illumination tool for military, law enforcement, and tactical use.
- The ideal compact HelmetLight, with SureFire performance and durability
- Fast, secure mounting and easy removal; can be used on MOLLE or ALICE vests
- Multiple task-specific LEDs, with included personal Identify Friend or Foe (IFF) beacon

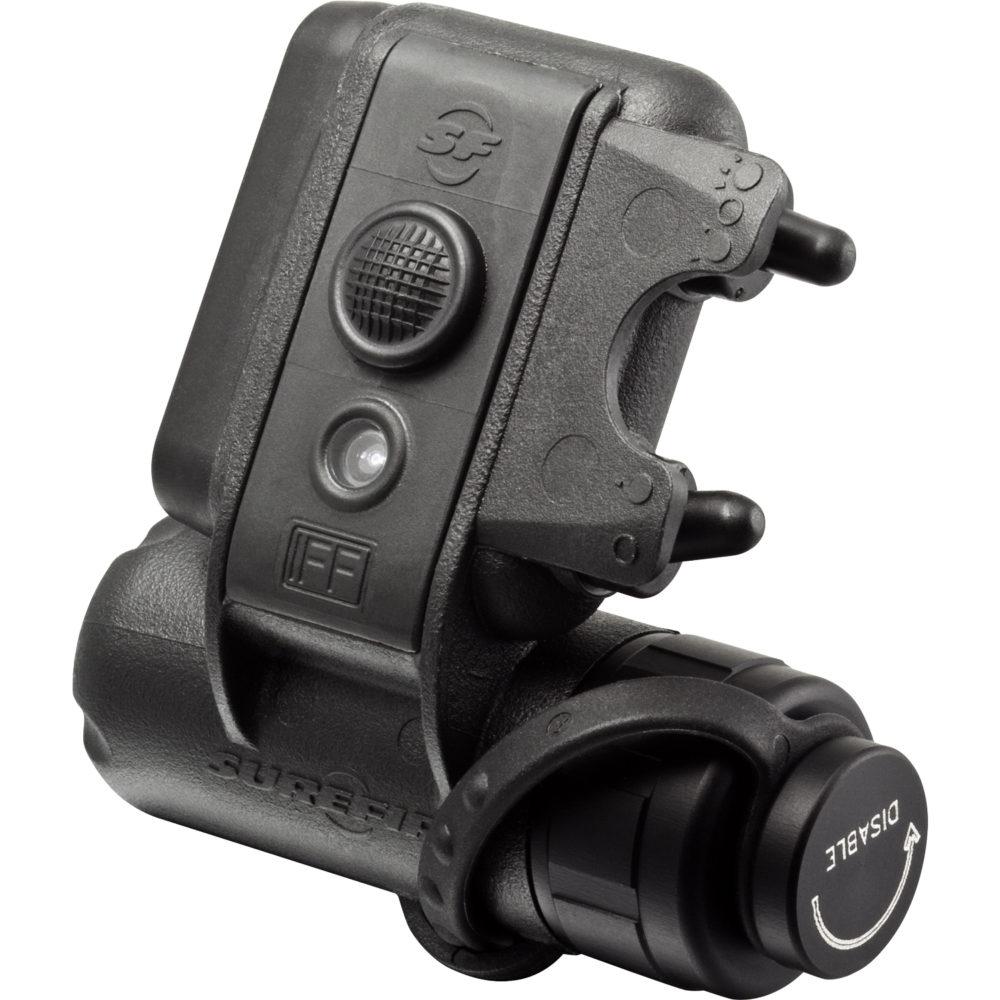

HL1-A-BK:Black Body, 3 White, 2 Blue, 1 Infrared IFF

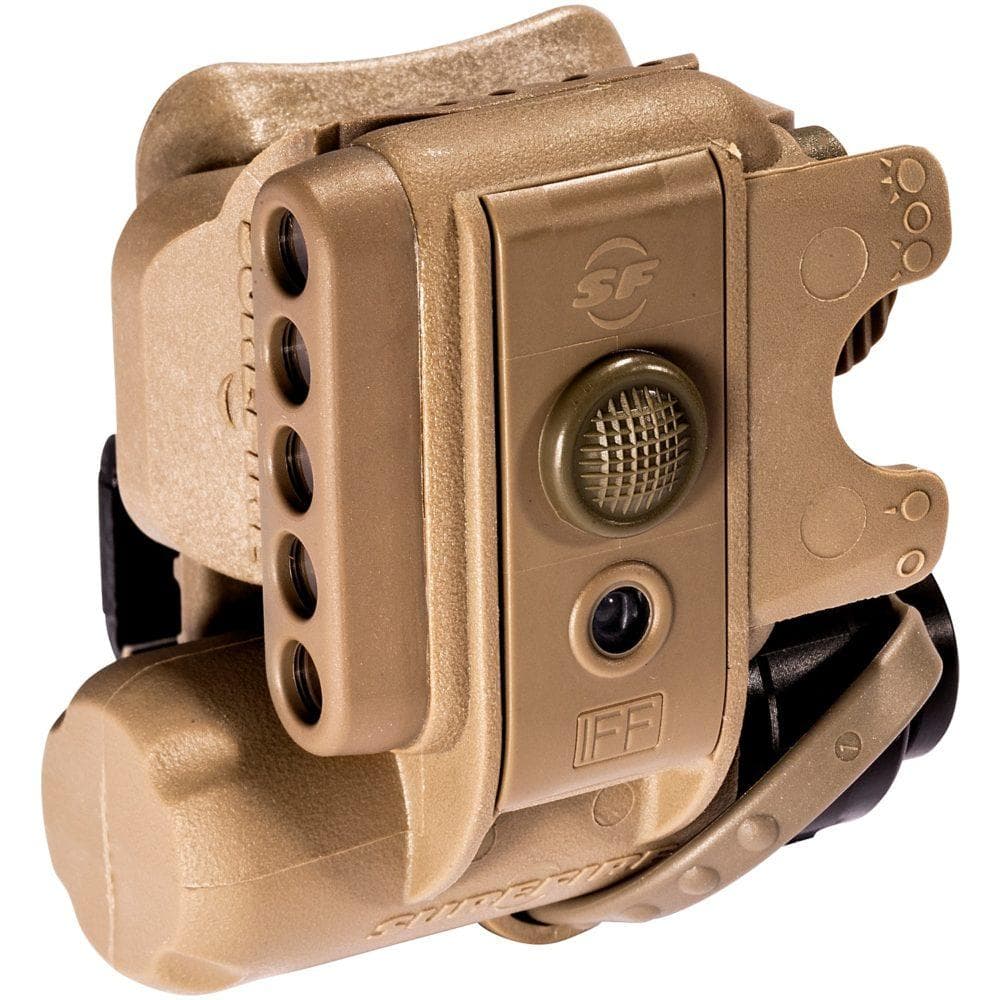

HL1-C-TN:Tan Body, 3 White, 2 Red, 1 Infrared IFF
SPECIFICATIONS:
FEATURES:
- White and night-vision-friendly colored LEDs for close-quarter activities
- Blinking infrared LED serves as IFF beacon (all models)
- Infrared LEDs (some models) for use with night vision devices
- Two toggle switches and a pressure switch for total control
- Constructed of durable glass-filled nylon polymer and neoprene
- Easily removable for servicing or transfer to other helmets (Z71 mount required)
- O-ring sealed, watertight body for dependable all-weather service

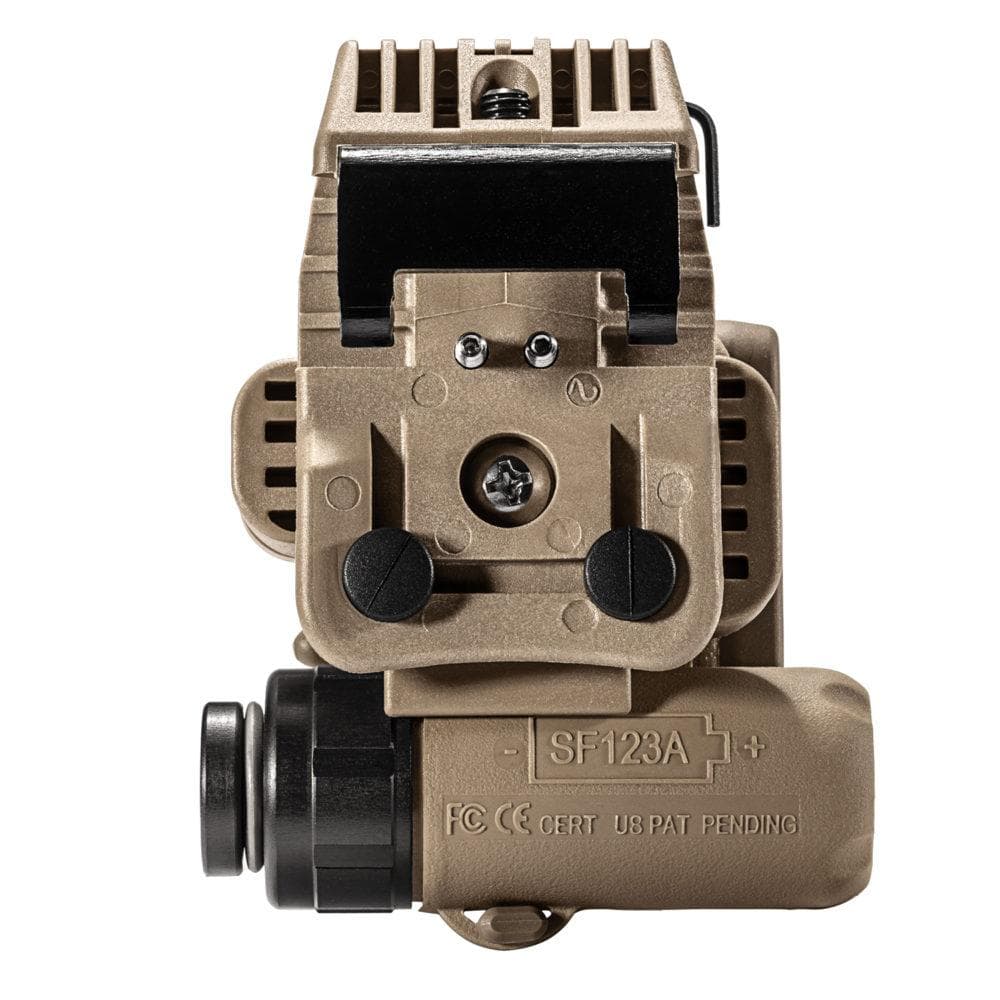

- Long runtime from a single 123A battery with 10-year shelf life
KEY ATTRIBUTES:
- High Output -19.2 lumens (white; yellow green) / 2.5 lumens (blue; red) / 30.5 milliWatts (IR)
- High Runtime -48 hours (Low: white; yellow/green) / 96 hours (Low: red; blue) / 44 hours (Low: IR)
- Batteries -One 123A lithium (incl.)
- Switching -Toggle and dome switch
OUTPUT:
- White Output - High: 19.2 / Med: 5.0 / Low: 1.4 lumens
- White Runtime -High: 6 / Med: 28 / Low: 48 hours
- Yellow/Green Output -High: 19.2 / Med: 5.0 / Low: 1.4 lumens
- Yellow Green Runtime -High: 20 / Med: 48 / Low: 96 hours
- Red Output -High: 2.5 / Med: 0.8 / Low: 0.3 lumens
- Red Runtime -High: 20 / Med: 48 / Low: 96 hours
- Blue Output -High: 2.5 / Med: 0.8 / Low: 0.3 lumens
- Blue Runtime -High: 20 / Med: 48 / Low: 96 hours
- IR Output -High: 30.5 / Med: 10 / Low: 2.0 milliWatts
- IR Runtime -High: 6 / Med: 17 / Low: 44 hours
- IR IFF Strobe Output -1.7 milliWatts
- IR IFF Strobe Runtime -120 hours
BODY:
- Construction -High-impact polymer
- Weight w/ Batteries -Light: 2.4 oz (68 g); Light + Mount: 4.0 oz (113 g)
- Dimensions -2.2 in x 3.2 in x 2.4 in (5.6 cm x 8.1 cm x 6.1 cm)
NSN:
- HL1-A-BK -6220-01-594-0581
- HL1-A-TN -6220-01-549-4174
- HL1-B-TN -6220-01-549-4184
- HL1-C-TN -6220-01-549-4203
- HL1-D-TN -6220-01-549-4218
