This model has been discontinued. (Purchasing this product will now upgrade you for FREE to: iRay RH25 V2: Which can be purchased by clicking here).

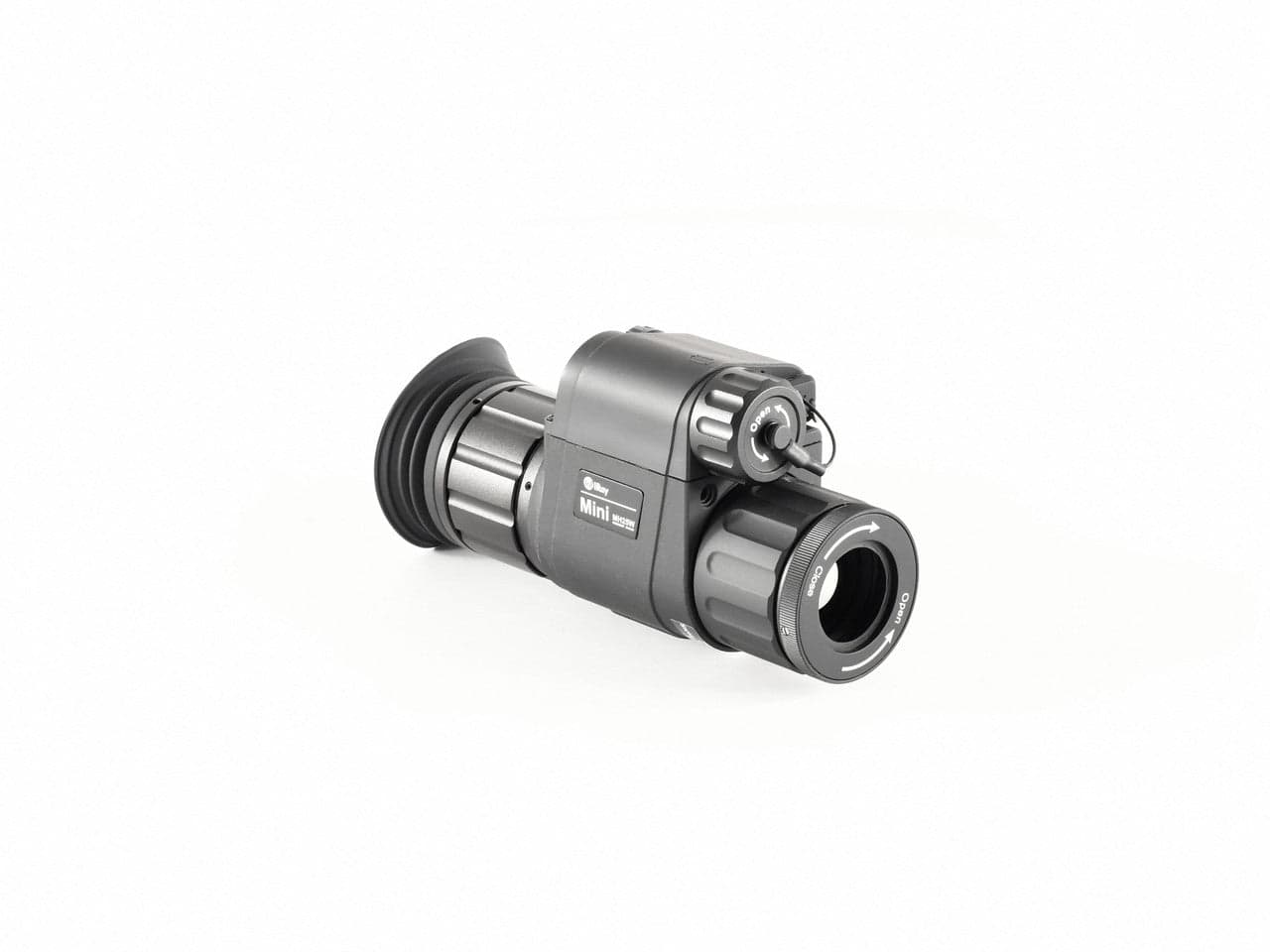

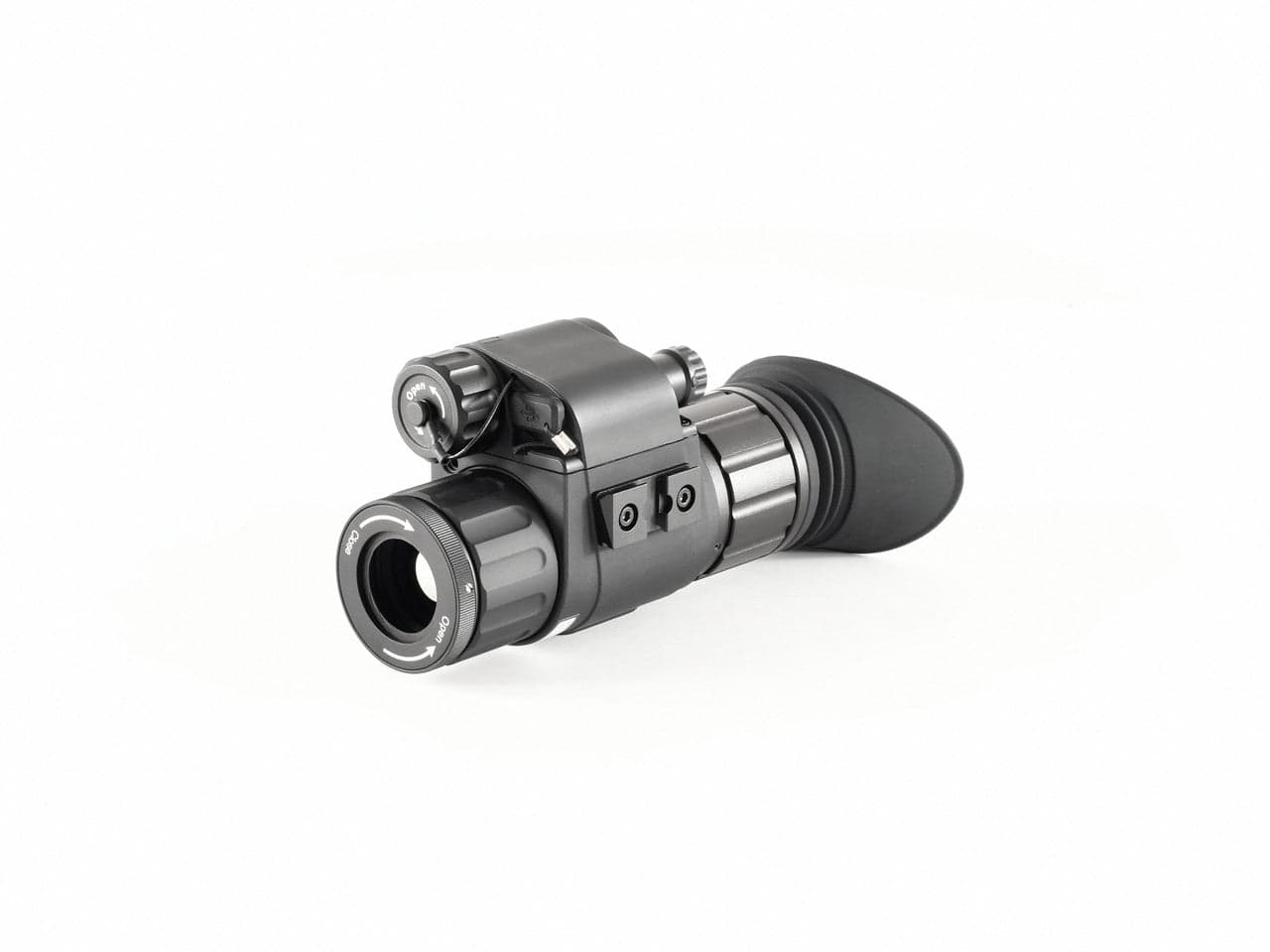

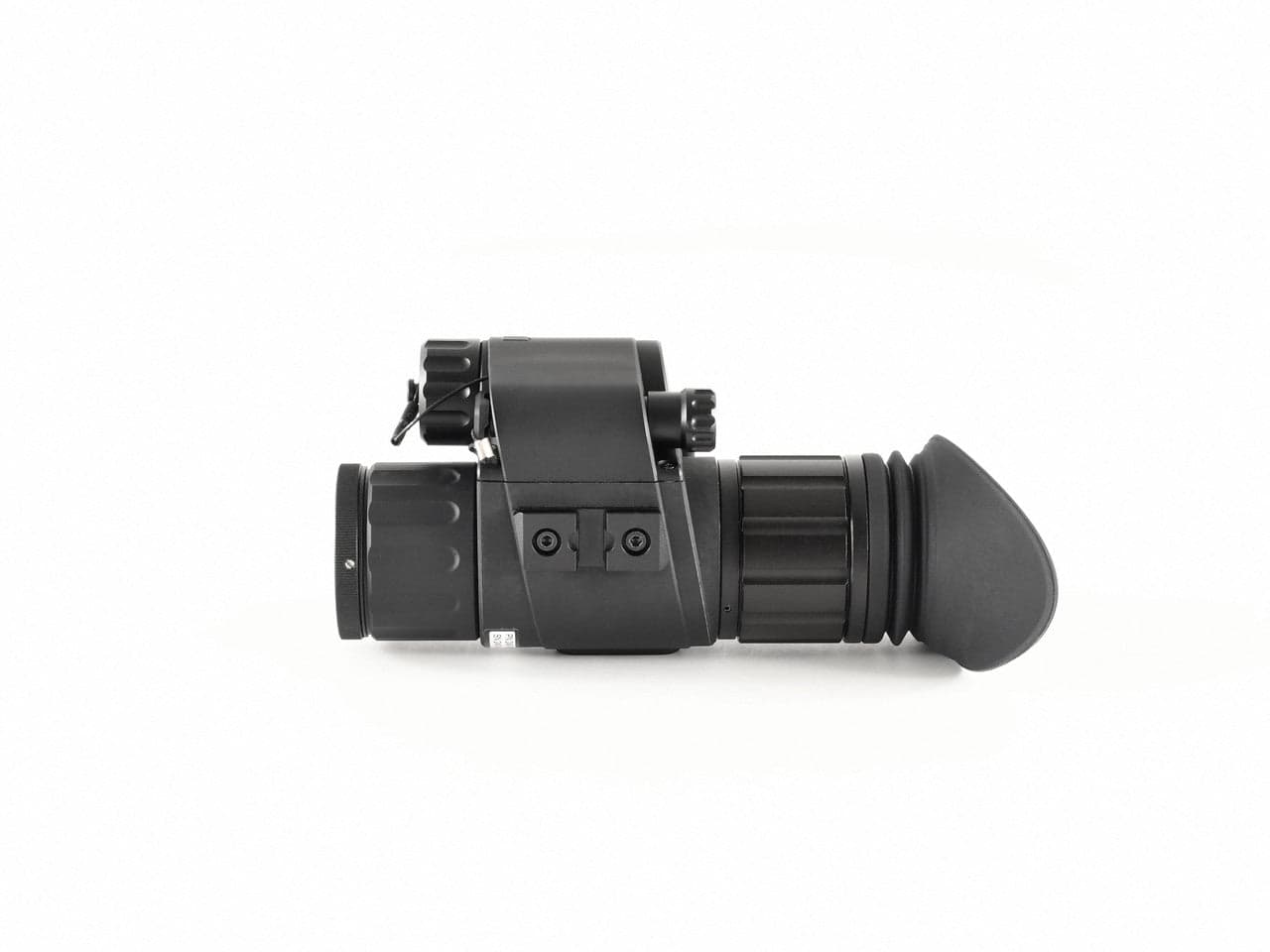

iRay MH25 Mini Thermal Monocular
- The iRay Mini MH25 is a compact thermal monocular designed for optimal performance and convenience.
- It boasts a manual, automatic, and semi-automatic Non-Uniformity, Correction (NUC), ensuring high-quality thermal imaging.
- The device comes with a 640x512 sensor resolution and a frame rate of 50hz, delivering clear and steady images.
- The Mini MH25 operates on a 16340 battery, with an impressive run time of 2.5+ hours.
- An external USB-C power source can be used to extend the device's operation time.
- The device is robustly built with an Aluminum/ABS housing and is mounted via a MUM Rail.
- It features Bluetooth and Wi-Fi capabilities, allowing for seamless connectivity.
iRay Mini MH25 Features
- The iRay Mini MH25 is powered by a 16340 Battery.
- It provides a video output of Analog RS-170/NTSC.
- The device features image capture capabilities.
- It comes with onboard recording functionality.
- The Mini MH25 is Bluetooth and WiFi-enabled.
- The product carries a 5-year warranty.
- Featuring a connector type of USB-C, the device has a run time of 2.5+ hours.
- The iRay MH25 Mini Thermal Monocular is compatible with a mobile app and provides color palettes such as White Hot, Black Hot, Red Hot, and Rainbow.
- It includes user-updatable firmware and has a storage capacity of 32GB.
- The device can be powered by an external source through USB-C.
- The Mini MH25 is designed with environmental specifications that include an ingress protection of IP67 and operates in a temperature range of -4°F~122°F.
- The physical specifications reveal a housing material of Aluminum/ABS, a MUM rail mounting interface, and a weight of 12.1 units.
- The iRay MH25 Mini Thermal Monocular boasts a thermal imaging device technology and a sensor resolution of 640×512.
- The sensor pixel size is 12μm and the device offers a sensor frame rate of 50hz.
- Its thermal sensitivity is less than 50mk and its spectral response lies between 8-12 microns.
- The sensor type is InfiRay MICRO II and it provides non-uniformity correction (manual, automatic, semi-automatic).
What's in the box of the iRay Mini MH25?
- iRay Mini MH25 Thermal Monocular
- 16340 Battery
- USB-C Cable for Charging
- Protective Lens Cap
- MUM Rail for Mounting
- User Manual

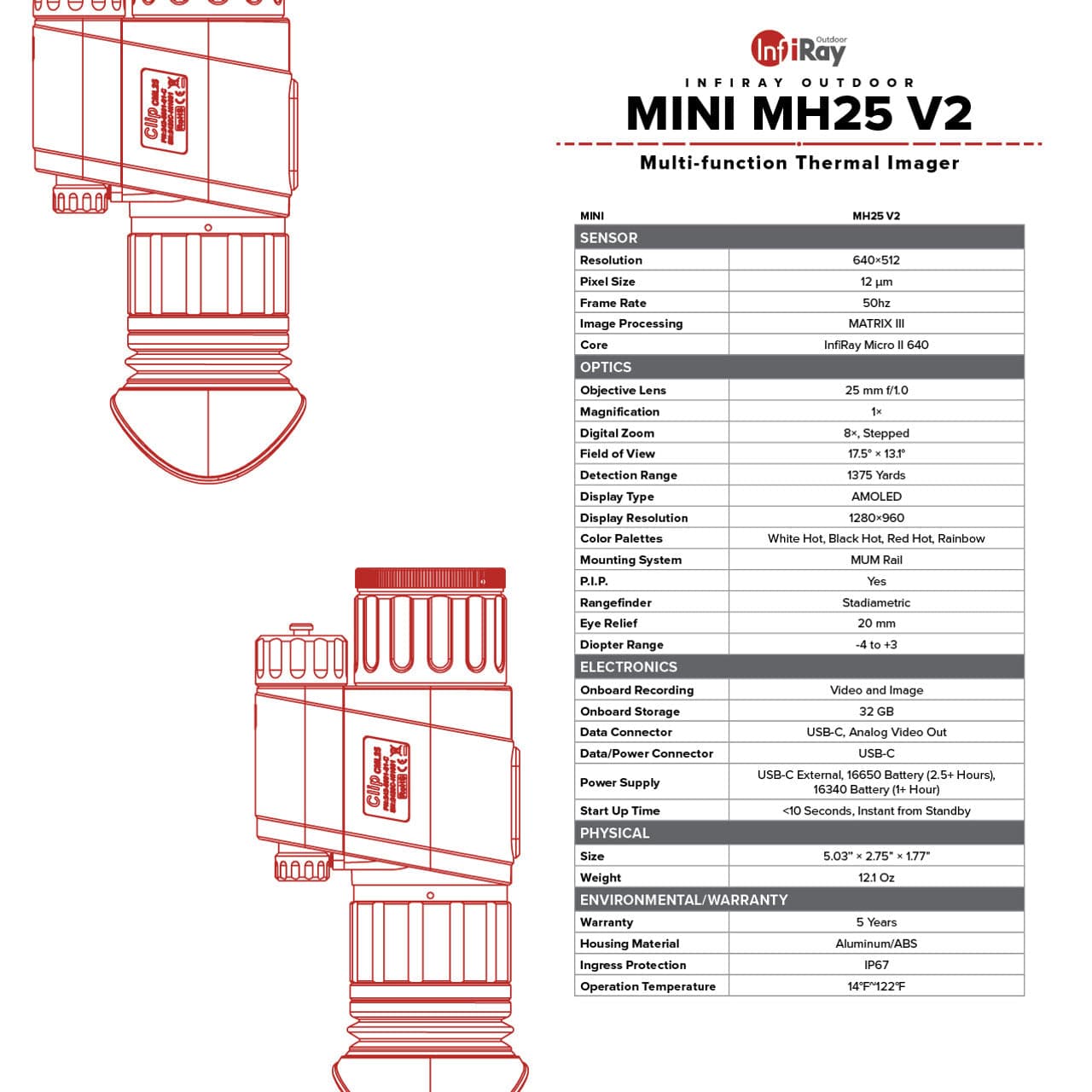

iRay Mini MH25 Specifications
- Device Name: iRay Mini MH25
- Device Technology: Thermal Imaging
- Sensor Resolution: 640×512
- Sensor Pixel Size: 12μm
- Sensor Frame Rate: 50hz
- Thermal Sensitivity: <50mk
- Spectral Response: 8-12 Microns
- Sensor Type: InfiRay MICRO II
- Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
- Optical Magnification: 1X
- Digital Magnification: 4X, stepped
- Objective Focal Length: 25mm
- Objective Diameter: 25mm
- Objective Focusing Range: 2 meters to infinity
- Horizontal Angular Field of View: 17.5
- Vertical Angular Field of View: 13.1
- Detection Range: 1375 Yards
- Eyepiece Focal Length: 27mm
- Eye Relief: 20mm
- Exit Pupil: 14mm
- Diopter Range: -4 - +3
- Display Type: AMOLED
- Display Resolution: 1280×960
- Power Source: 16340 Battery
- Startup Time: Under 10 Seconds
- Warranty: 5 Years
- Run Time: 2.5+
- Connector Type: USB-C
- Mobile App: Yes
- User-Updatable Firmware: Yes
- Storage Capacity: 32GB
- Environmental Specifications: Ingress Protection IP67, Operating Temperature Range -4°F~122°F
- Physical Specs: Housing Material - Aluminum/ABS, Mounting Interface - MUM Rail, Weight - 12.1, Height - 1.77, Width - 2.75, Length - 5.30.
iRay Mini MH25 FAQs
What power supply options are available for the iRay Mini MH25?
The iRay Mini MH25 is compatible with CR123A, CR123, 16340, and 16650 batteries. A power cable is also included for use with a 10,000-mesh USB battery.
What is the run time of the iRay Mini MH25?
With a 16650 battery, the iRay Mini MH25 will run for three hours. If you use the included power cable with a 10,000-mesh USB battery, it will run for 18 hours.
What is the detection range of the iRay Mini MH25?
The iRay Mini MH25 thermal monocular has a detection range of 1375 yards.
Does the iRay Mini MH25 have onboard recording?
Yes, the iRay MH25 Mini Thermal Monocular has onboard recording capabilities.
Does the iRay Mini MH25 support Bluetooth and Wifi connectivity?
Yes, the iRay MH25 Mini Thermal Monocular supports both Bluetooth and Wifi connectivity.
Can the firmware of the iRay Mini MH25 be updated by the user?
Yes, the iRay MH25 Mini Thermal Monocular supports user-updatable firmware.
What is the ingress protection rating of the iRay Mini MH25?
The iRay Mini MH25 has an ingress protection rating of IP67, making it dust-tight and resistant to water.
What is the thermal sensitivity of the iRay Mini MH25?
The iRay Mini MH25 monocular has a thermal sensitivity of less
