This model has been discontinued. (Purchasing this product will now upgrade you for FREE to: iRay RH25 V2: Which can be purchased by clicking here).

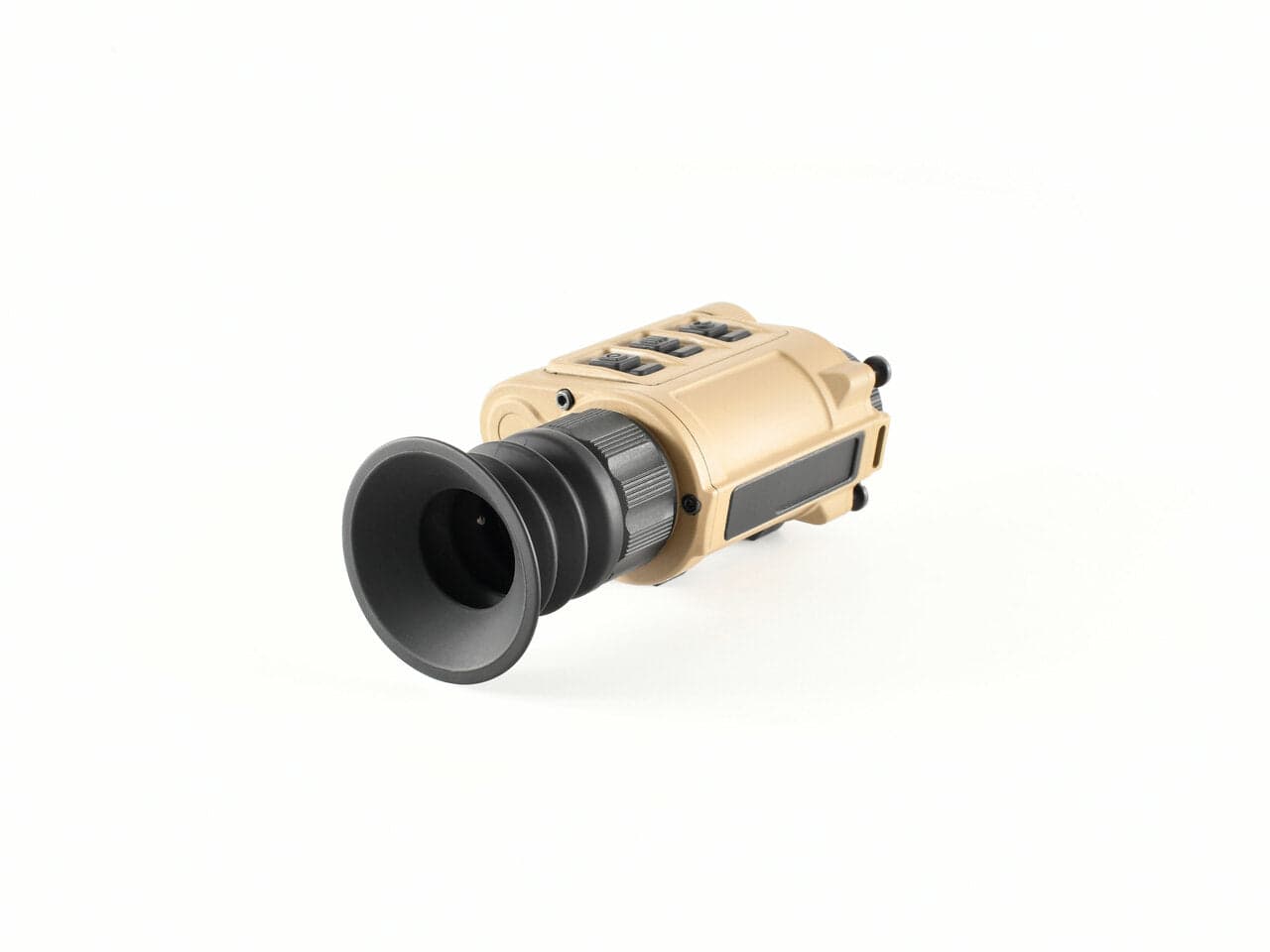

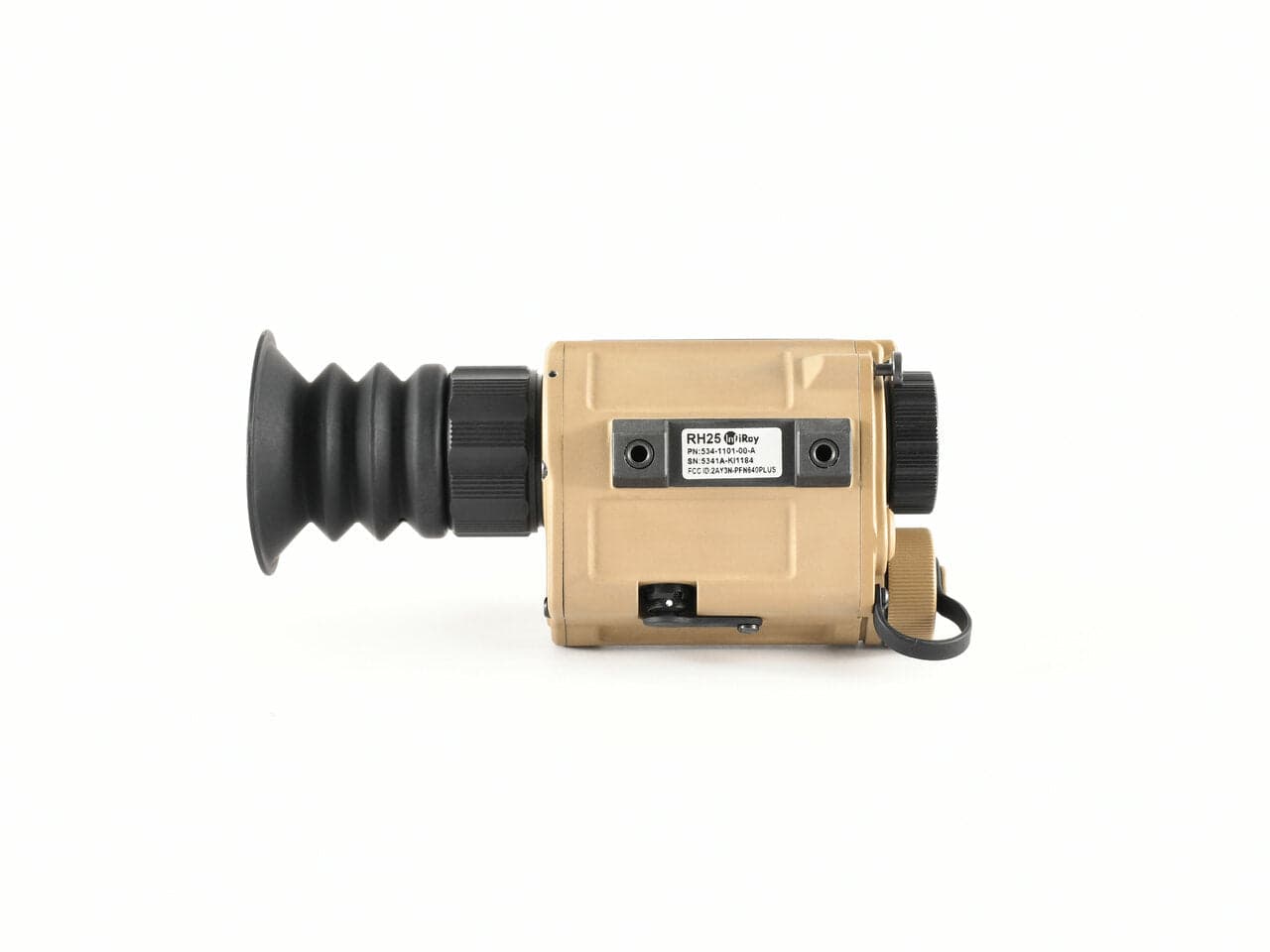

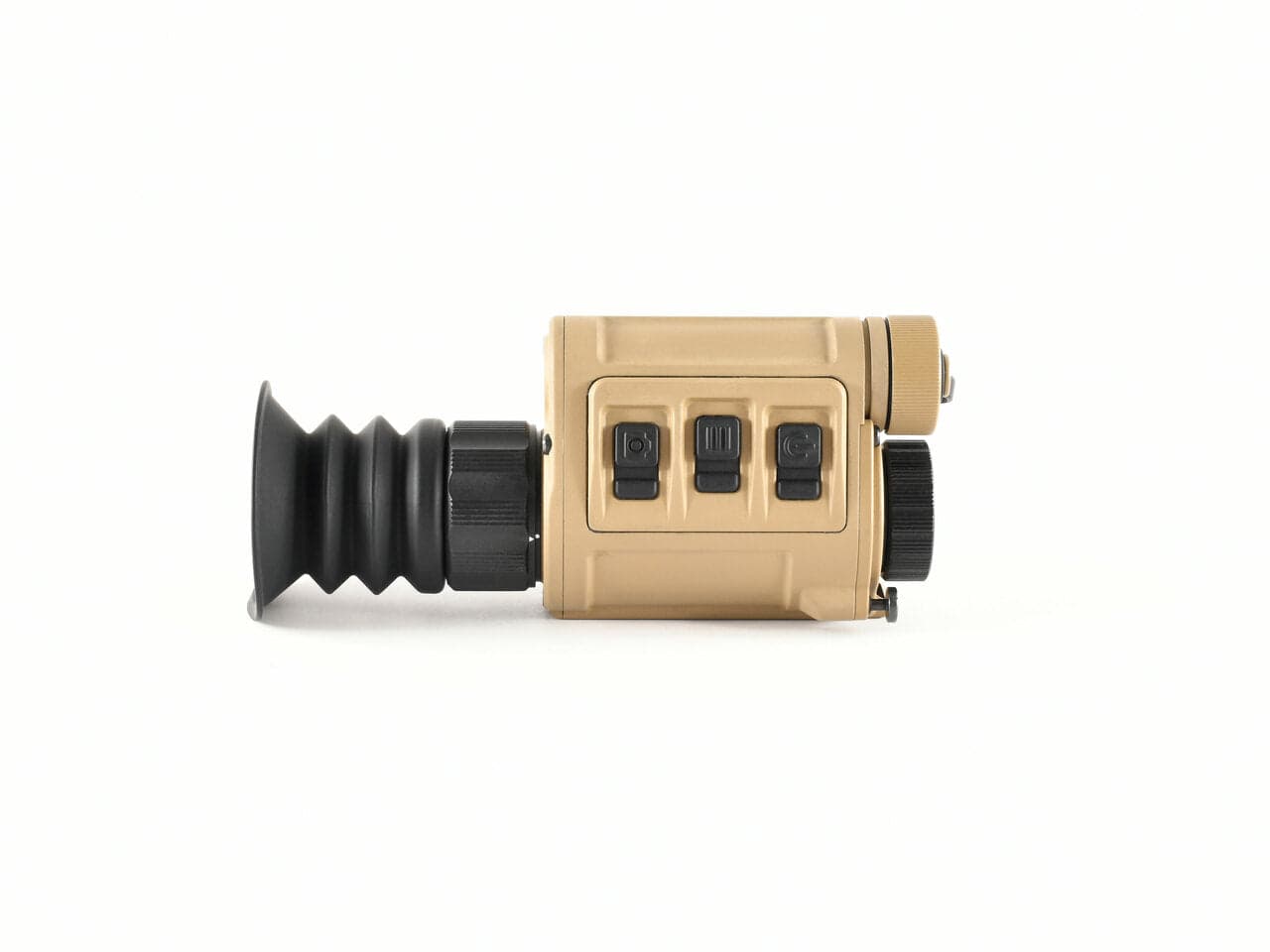

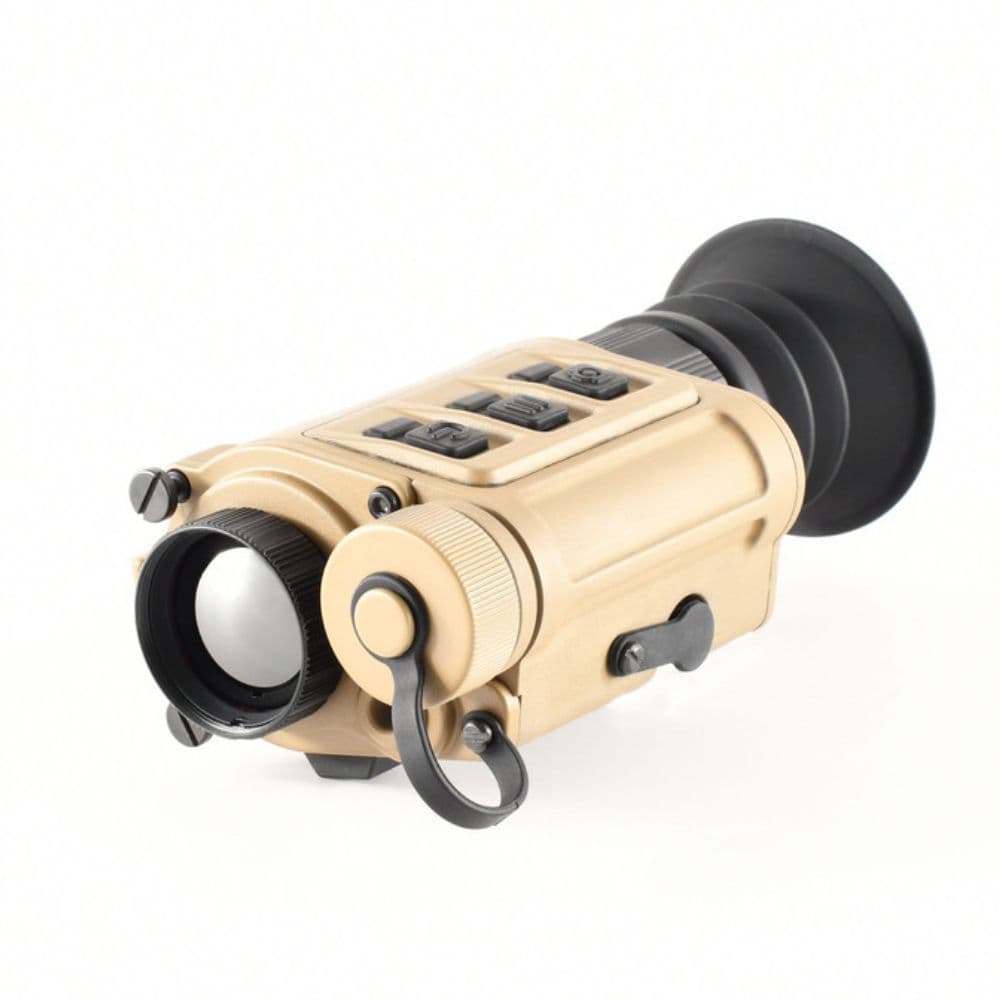

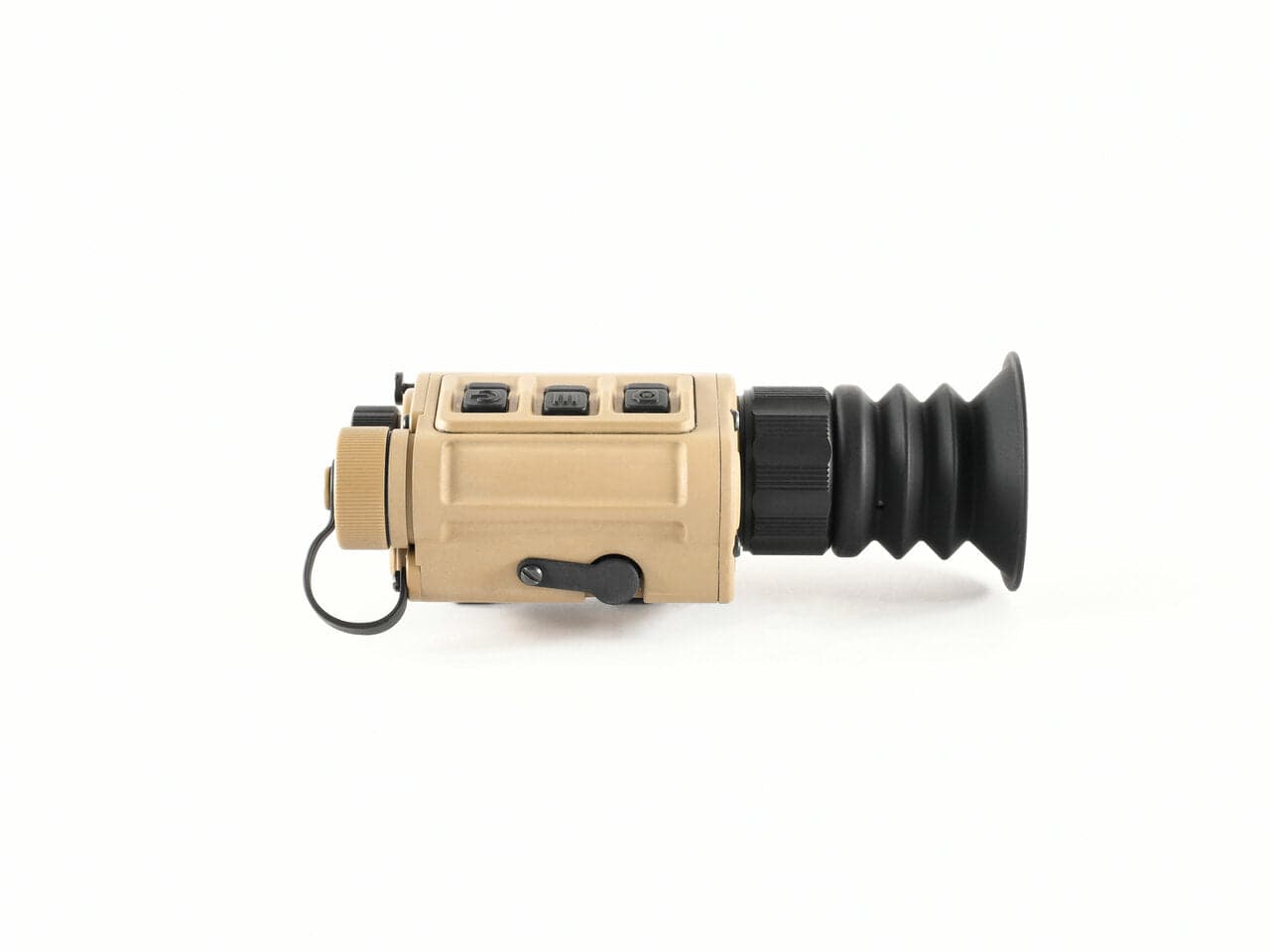

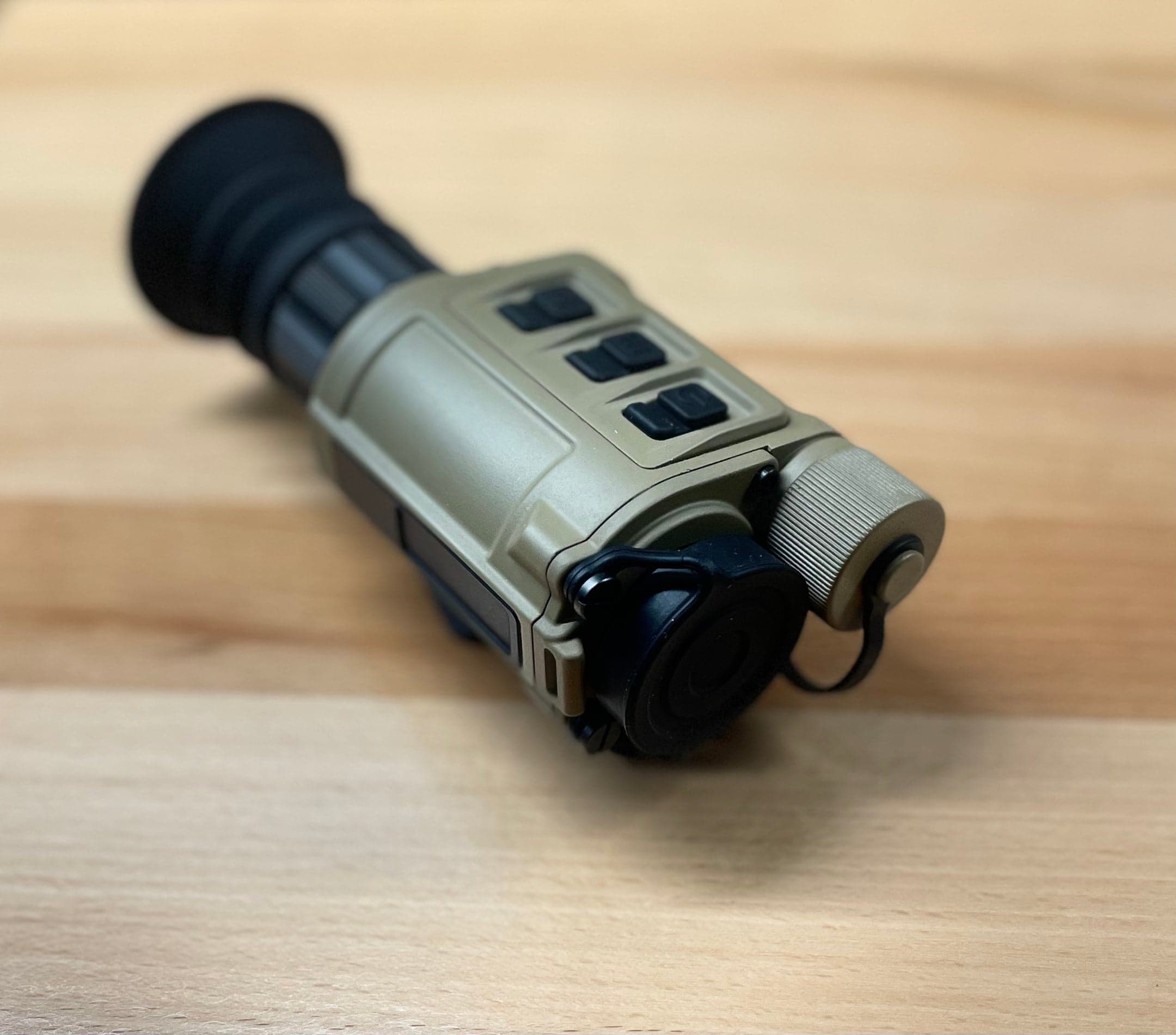

iRay RH25 | Multi-Purpose Thermal Monocular
- TheiRay RH25 is part of the RICO MICRO Series, a state-of-the-art electro-optic device designed for versatility with four modes of operation: handheld, helmet mount, weapon mount, and clip-on.
- Weighing less than a pound, the iRay RH25 is compact and portable, fitting comfortably into the palm of your hand.
- It is equipped with InfiRay's latest high-performance 640x512, 12 μm sensor technology, MATRIX III processing, and a manual-focus f/1.0 objective lens, delivering unmatched image quality.
- The device features onboard recording and video playback on a high-definition AMOLED display.
- The iRay RH25 has a detection range of 1375 yards and an optical magnification of 1x, with a digital magnification of 4x.
- It is designed with a manual focus and a diopter range from -4 to +4.
- The iRay RH25 comes with a storage capacity of 64GB, enabling ample space for video and image recordings.
- It is capable of running for 4 hours on a single charge, powered by an 18650 rechargeable battery.
iRay RH25 Review
iRay RH25 Features
- Lightweight and versatile, the iRay RH25 can be handheld, helmet-mounted, weapon-mounted, and used as a clip-on.
- Features a high-performance 640x512, 12 μm sensor technology, MATRIX III processing, and a manual-focus f/1.0 objective lens for high-quality imaging.
- Comes with onboard recording and video playback capabilities on a high definition AMOLED display.
- Allows for digital magnification up to 4X.
- Provides a detection range of up to 1375 yards.
- Equipped with a manual focus, 25mm f/1.0 objective lens.
- AMOLED display with a resolution of 1024×768 for clear, sharp images.
- Offers 7 reticle options and color palettes including White Hot, Black Hot, Red Hot, and Color.
- Comes with a mobile app for easy control and feature access.
- Has a storage capacity of 64GB for ample recording space.
- Offers WiFi connectivity and analog output.
- Features a startup time of less than 10 seconds, and an instant startup from standby mode.
- Can be powered by a 18650 rechargeable battery or an external power source.
- Comes with a 5-year warranty.
- Has an operating temperature range of -4°F to 122°F and an ingress protection rating of IP67.
- Easy to mount using the MUM rail/Picatinny STD-1913 rail, PICTAIL optional.
- Built with a durable aluminum housing.
- Measures 4.52 in length, 2.55 in height, and 1.88 in width, and weighs only 12.7 oz.

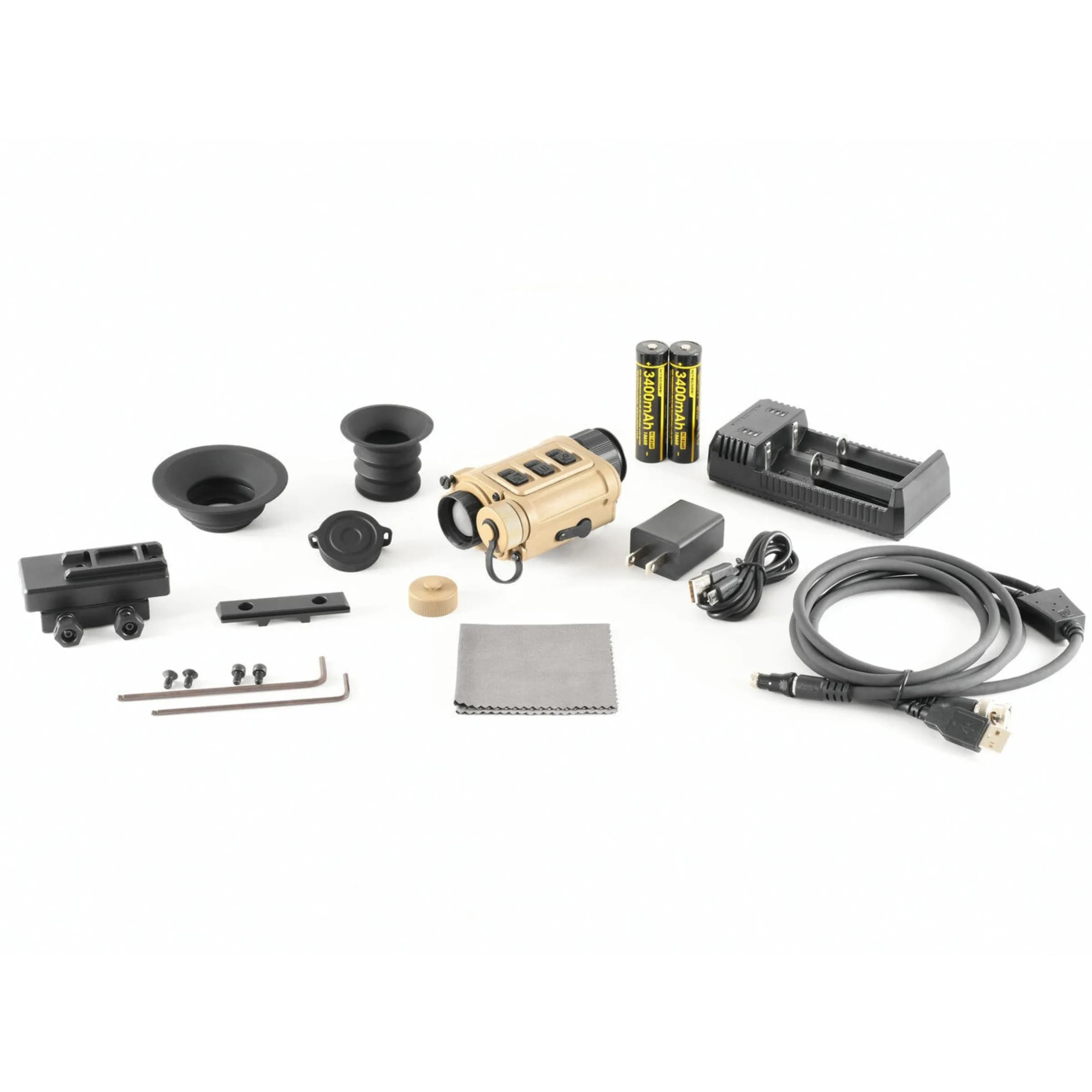

What's in the box of the iRay RH25?
- iRay RH25 thermal imaging monocular
- Standard dovetail helmet mount

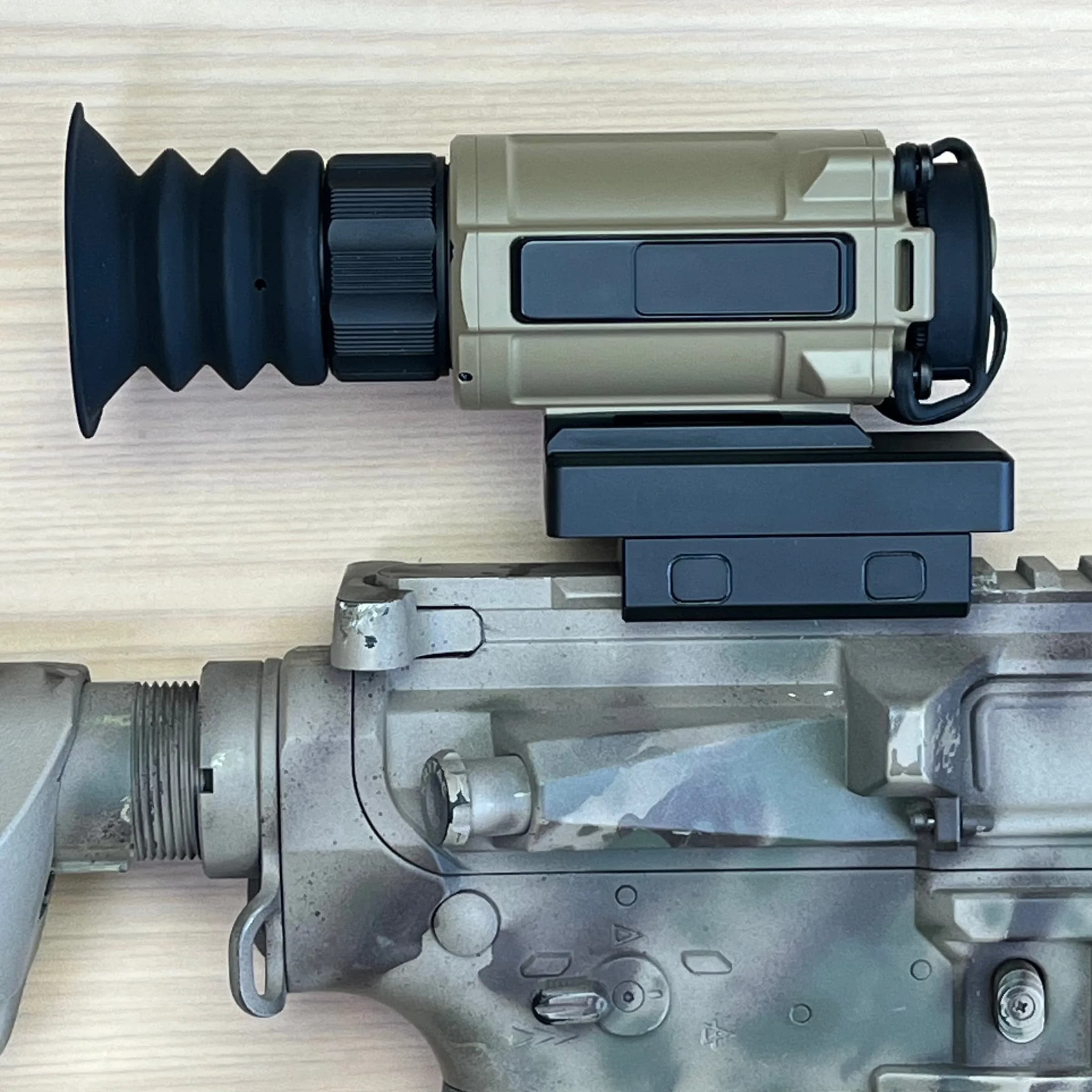

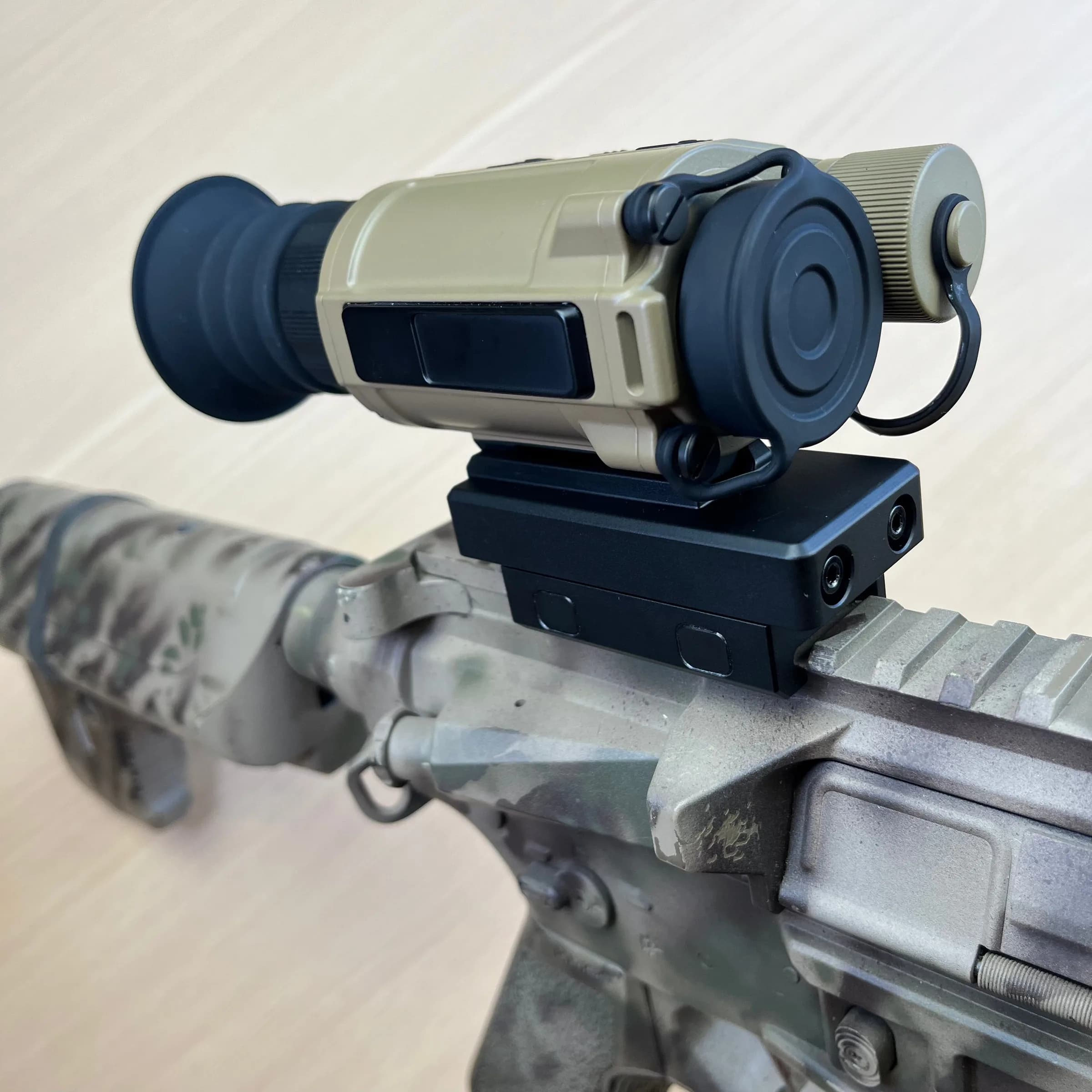

- Rifle mount for stand-alone weapon sight application
- Data Cable with USB, BNC, and 7-Pin Connectors
- 18650 Rechargeable Battery
- User Manual
- Warranty Card
iRay RH25 Specifications
- Device Technology: Thermal Imaging
- Sensor Type: InfiRay MICRO II
- Sensor Resolution: 640×512
- Spectral Response: 8-12 Microns
- Sensor Frame Rate: 50hz
- Sensor Pixel Size: 12μm
- Thermal Sensitivity: <50mk
- Optical Magnification: 1X
- Digital Magnification: 4X
- Objective Lens Material: Germanium
- Objective Focal Length: 25mm f/1.0
- Objective Diameter: 25mm
- Focusing Mechanism: Manual Focus
- Eye Relief: 35mm
- Display Type: AMOLED
- Display Resolution: 1024×768
- Onboard Recording: Video and Image
- Image Capture: Yes
- External Power Source: Yes, 7-Pin to USB 5V
- Power Source: 18650 Rechargeable
- Warranty: 5 Years
- Operating Temperature Range: -4°F to 122°F
- Ingress Protection: IP67
- Mounting Interface: MUM rail/Picatinny STD-1913 rail, PICTAIL optional
- Housing Material: Aluminum
- Length: 4.52 in
- Height: 2.55 in
- Width: 1.88 in
- Weight: 12.7 oz
- Run Time: 4 Hours
- Mobile App: Yes
- Storage Capacity: 64gb
iRay RH25 FAQs
What is the iRay RH25 Micro?
The iRay RH25 Micro, part of the RICO MICRO Series, is a versatile, multi-purpose monocular. It can function as a handheld device, helmet mount, weapon mount, and clip-on. It features InfiRay’s latest high-performance 640x512, 12 μm sensor technology, MATRIX III processing, and a manual-focus f/1.0 objective lens.
What is the weight and dimensions of the RH25 iRay?
The RH25 by iRay weighs just 12.7 oz (less than a pound) and has dimensions of 4.52" x 2.55" x 1.88".
Is the iRay Rico Micro RH25 capable of recording?
Yes, the iRay Rico Micro RH25 has onboard recording capability for both video and image. It also supports onboard video playback.
How does the iRay RH25 Clip On perform in terms of magnification and object detection?
The iRay RH25 Clip On offers 1X optical magnification and 4X digital magnification. Its detection range is up to 1375 yards.

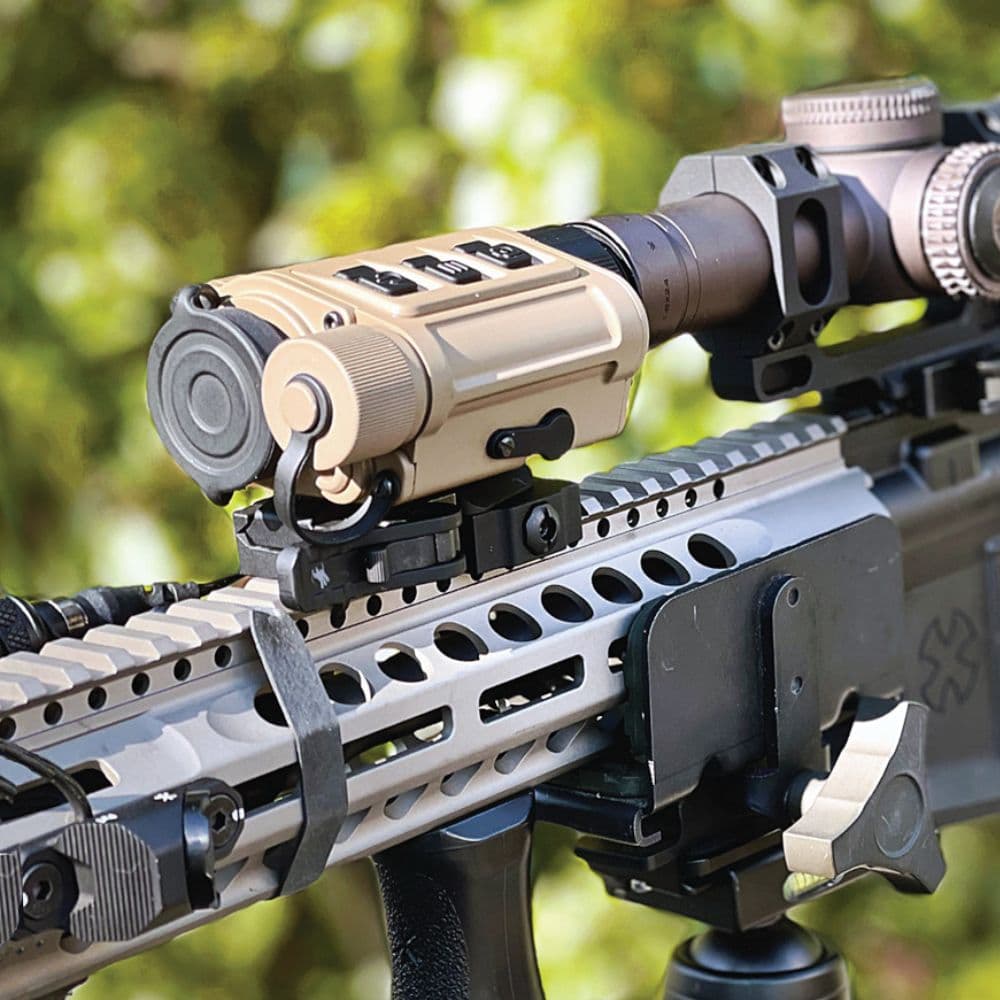

Can the iRay Micro RH25 Clip On Thermal be used in conjunction with a day scope?
Yes, the iRay Micro RH25 Clip On Thermal can work in tandem with your day scope to function as a clip-on optic.
What is the power source for the iRay Micro RH25 Clip On Thermal?
The iRay Micro RH25 Clip On Thermal is powered by a 18650 rechargeable battery and has a runtime of about 4 hours. It can also be powered from an external source through a 7-Pin to USB 5V connection.
Is the iRay Micro RH25 built to withstand harsh environments?
Yes, the iRay Micro RH25 is made from durable Aluminum, comes with an Ingress Protection rating of IP67, and operates in temperatures ranging from -4°F to 122°F.
