Maztech X4 Diving Board Mount: Mount Your LRF & Accessories Above Your Scope
- The Maztech X4 Diving Board Mount helps you add more gear above your scope. It replaces the front ring of your current scope mount, giving you a solid top rail for tools like a laser rangefinder. This lets you add important gear without cluttering your rifle.
- A Perfect Fit for Your 30mm Scope Mount: This mount is built to work with popular Geissele and Reptilia 30mm scope mounts, replacing the front ring for a secure fit.
- 8 Picatinny Slots to Mount More Gear: It gives you eight standard rail slots, providing plenty of space to attach a laser rangefinder or other important accessories.
- Aircraft-Strong, Weighs Only 2 Ounces: Made from tough 7075-T6 aluminum, this mount is strong enough for hard use but weighs just 2 ounces, so it won’t slow you down.
- 100% Designed and Made in the USA: You can trust the quality of this mount because it is designed and built entirely in the United States.
What are some common accessories to add to the Maztech Diving Board Mount?
Core System Integration
- X4-LRF: The X4 Laser Rangefinder is the primary payload for the X4 Diving Board Mount. The mount provides an ideal, elevated position above the scope's objective bell, ensuring a clear line of sight for accurate ranging.

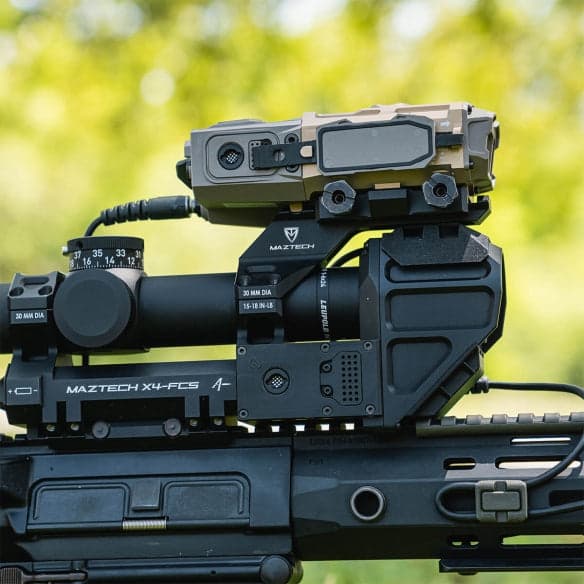

- X4-FCS: The X4 Diving Board Mount is engineered to directly replace the front scope ring of the X4-FCS (Fire Control System). This creates a seamless and rigid platform, fully integrating your optic and rangefinder into one cohesive unit.
- X4 FCS-to-LRF Cable: This cable serves as the critical data link between the X4-FCS and the X4-LRF when they are assembled using the Diving Board Mount. It enables the complete functionality of the fire control system.
Remote System Control
- X4 Rail-Mounted Remote: This remote switch allows the operator to activate the functions of the mounted X4-LRF without removing their support hand from the rifle's forend. It enhances reaction time and maintains operational readiness.
- X4 Low-Profile Remote: Offering the same core function as the Rail-Mounted Remote, this low-profile version provides a smaller footprint for operators with limited rail space or specific ergonomic preferences. It ensures full control of the mounted LRF system in a minimalist package.
Maztech Diving Board Mount Features & Specifications
The Maztech X4 Diving Board Mount provides a dedicated, elevated platform for mounting a laser rangefinder or other accessories above your scope. Its unique design integrates seamlessly with popular high-end scope mounts by replacing the front scope ring, creating a single, robust unit. This mount is built for demanding environments from a solid billet of aircraft-grade 7075-T6 aluminum, ensuring maximum strength and durability while adding only 2 ounces of weight to your system. Designed and manufactured in the USA, it offers a reliable, lightweight solution for expanding your rifle's capabilities without compromising its balance or performance.
Key Features
- Allows the X4-LRF™ or other accessories to be mounted above a scope.
- Compatible with X4-FCS™, Geissele®, and Reptilia® 30mm scope mounts.
- Features eight standard Picatinny rail slots for attaching a variety of accessories.
- Manufactured from a solid billet of aircraft-grade 7075-T6 aluminum for durability.
- Finished with a black Type III hard anodized coating.
- Designed to meet MIL-STD-810 environmental specifications.
- Includes four 8-40 fasteners and a T15 Torx tool for installation.
- Proudly designed and manufactured in the USA.
Specifications
- Compatibility: Geissele Super Precision and Reptilia AUS 30 mm mounts; STANAG 4694, 2324 / Picatinny MIL-STD-1913 accessories.
- Material: 7075-T6 billet aluminum.
- Finish: Black Type III hard anodizing.
- Weight: 2 oz (56 g).
- Dimensions (LxWxH): 4 x 1.7 x 1.5 in (102 x 45 x 39 mm).
- Scope Ring Diameter: 1.2 in (30 mm).
- Maximum Scope Objective Diameter: 2.3 in (58 mm).
What's in the box of the Maztech Secondary optic mount?
- (1) X4 Diving Board Mount
- (4) 8-40 fasteners for installation
- (1) T15 Torx tool
X4 Secondary optic mount FAQs
What does this mount actually do?
This mount lets you add more gear on top of your scope. It creates a sturdy platform that is perfect for putting a laser rangefinder or other tools where you need them.
Will this fit on my rifle?
This mount is designed for specific scope mounts, not directly onto the rifle itself. It works by replacing the front scope ring on popular 30 mm mounts from Geissele, Reptilia, and the Maztech X4-FCS.
What is it made of?
It is built from a solid piece of aircraft-grade 7075-T6 aluminum. This makes the mount very strong and able to handle tough conditions, but it is also very light, weighing only 2 ounces (56 g).
What can I attach to the top rail?
The mount has eight standard Picatinny rail slots on top. This gives you plenty of space to add the Maztech X4-LRF or other rail-mounted accessories you may want to use.
Does it come with everything I need to install it?
Yes, it comes with the hardware needed for installation. In the box, you will find four 8-40 fasteners and the T15 Torx tool used to tighten them.
