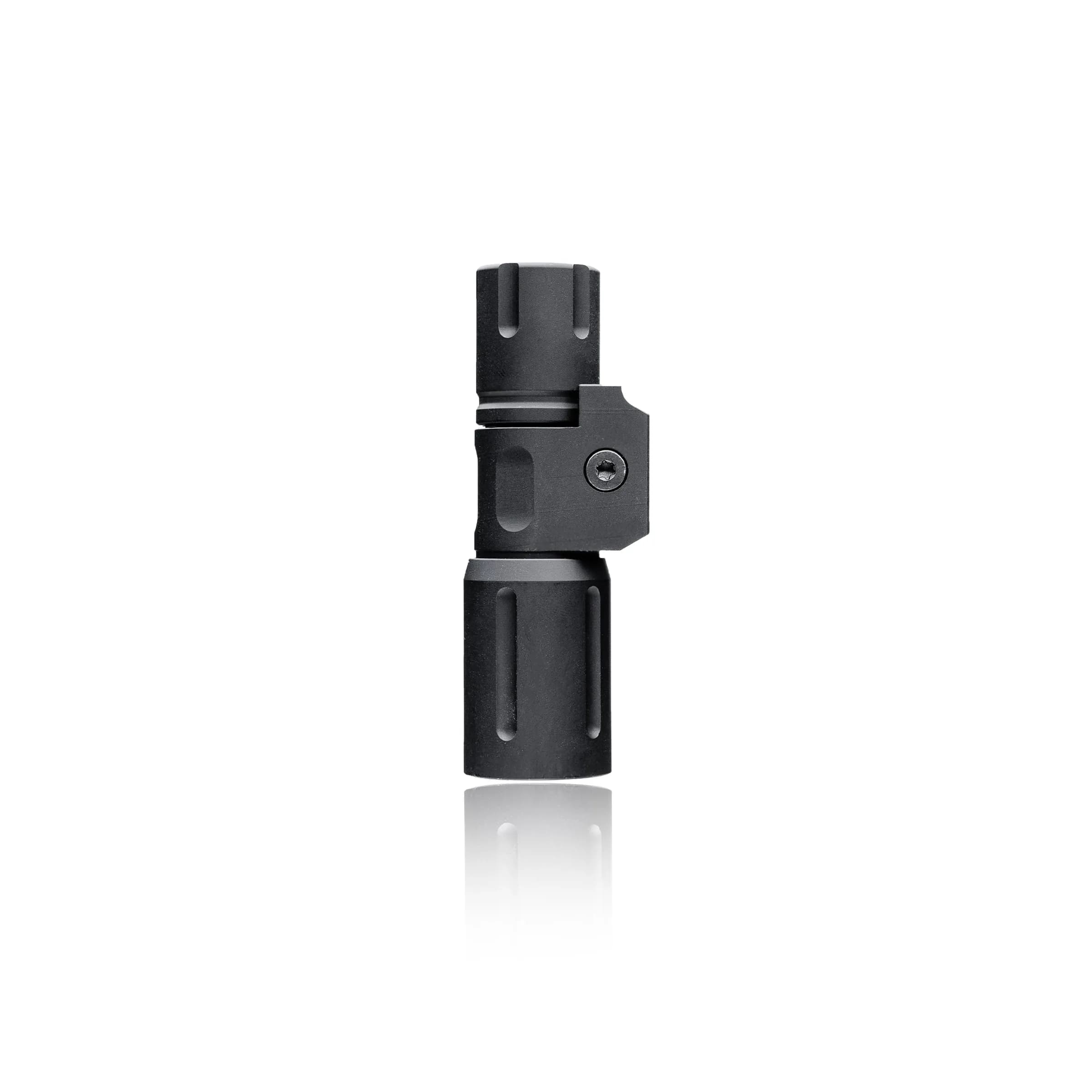

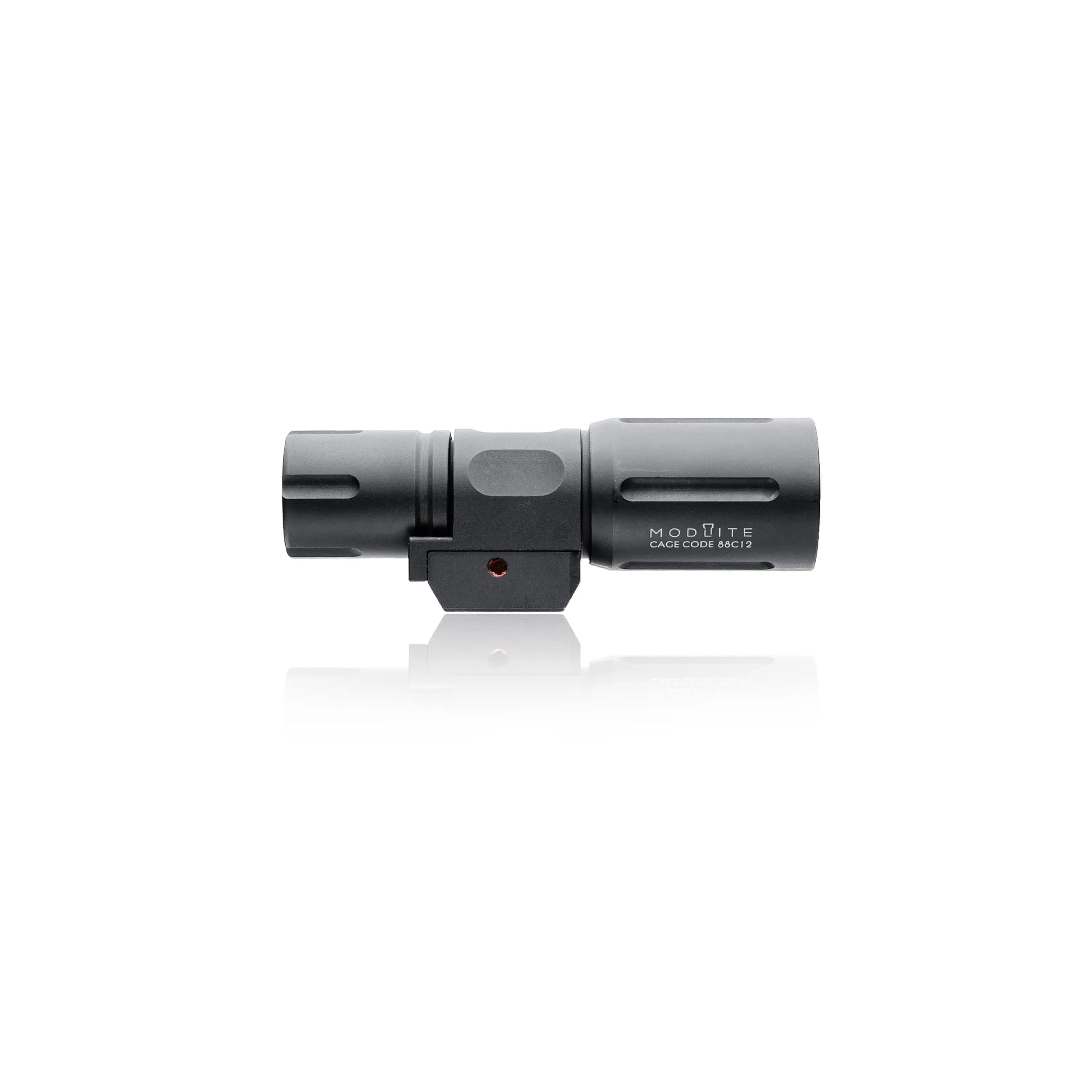

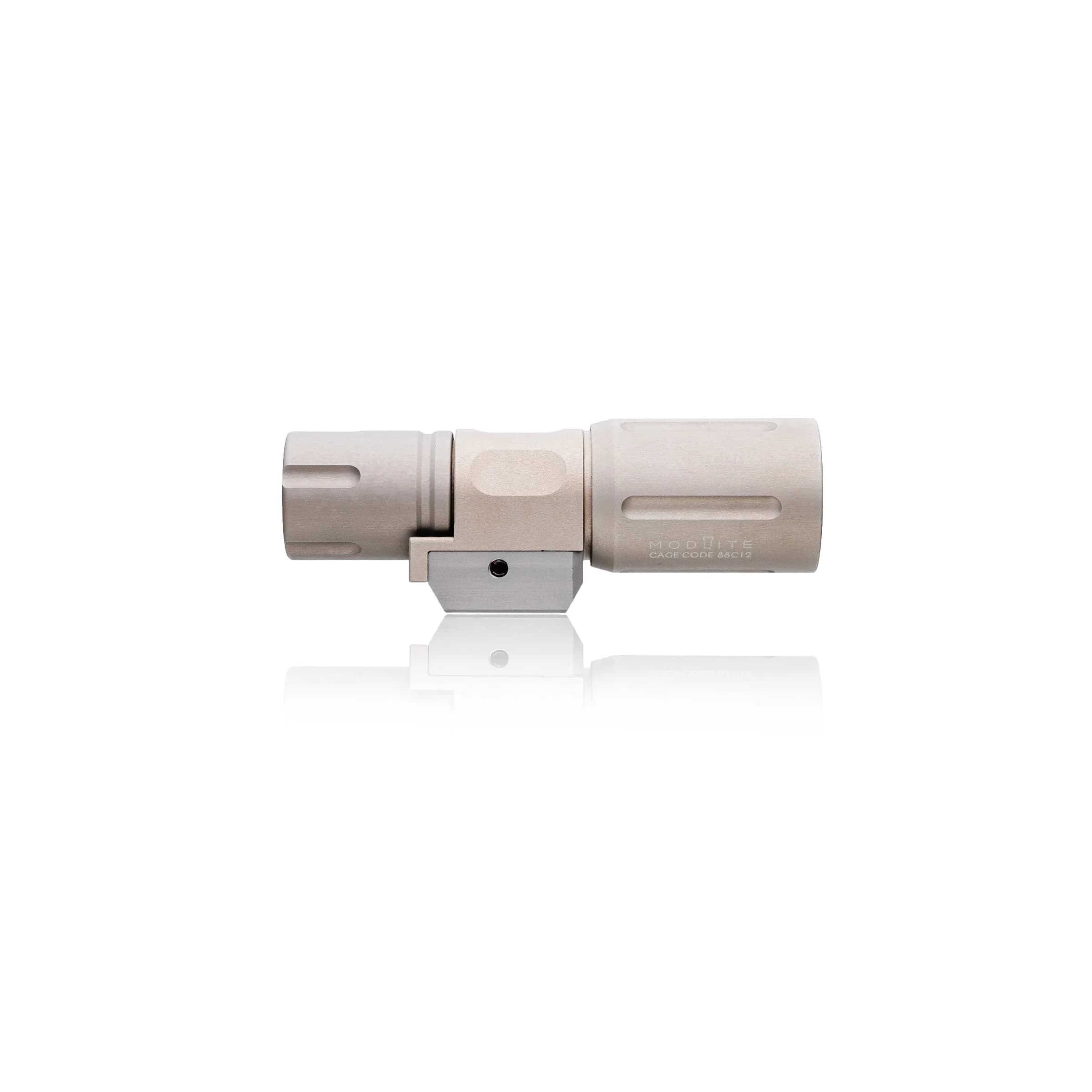

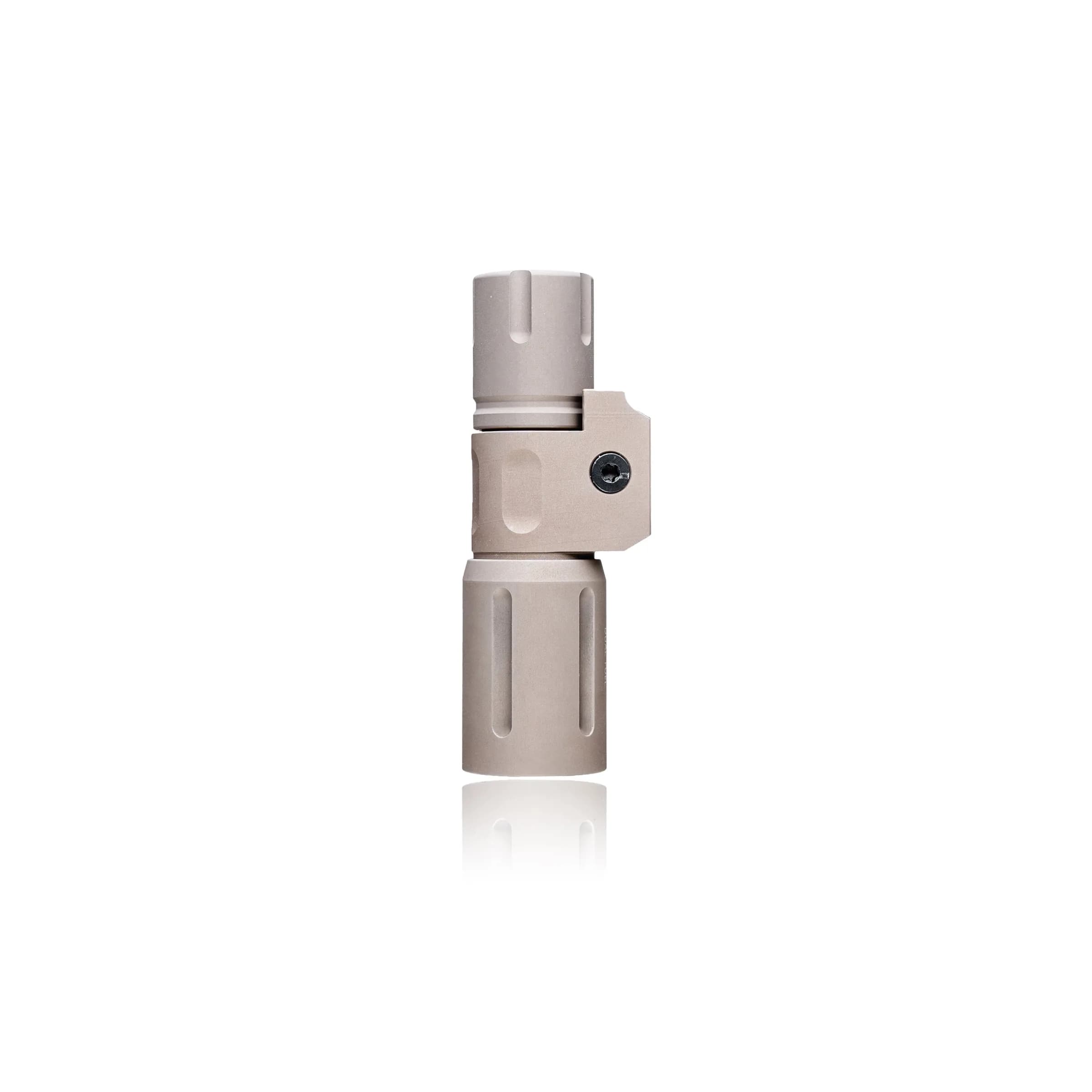

Modlite PDW350 Light Package - Up To 95,000 Candela Output - Picatinny Rail Compatible - Made in USA

Modlite PDW350 Light Package: The Rifle Light for Snag-Free Picatinny Rail Mounting

• The Modlite PDW350 Light Package is a specialized rifle light built for compact weapons used in close-quarters and low-light environments. Made in the USA from 6061-series aerospace aluminum, it features a built-in Picatinny rail mount that keeps it perfectly flat at the top of your handguard. This single-piece design provides operators with a snag-free profile without the need for extra rings or brackets.
• Punch Through Light Barriers with 95,000 Candela: Choose the Modlite OKW V2 head to deliver 1,300 lumens of focused light, easily identifying targets through streetlights or vehicle windows. If you clear rooms, the Modlite PLHv3 head balances 1,500 lumens and 60,000 candela to fill dark corners with a wider beam.
• Withstands Select-Fire SCAR 17 Recoil:The internal electronics use a fully potted design that locks the circuit boards in place in solid resin. This protects the system from the violent recoil of heavy-caliber weapons, meaning your light will not flicker or fail during rapid-fire engagements. It also features an ultra-clear BOROFLOAT lens that easily resists massive heat spikes from nearby muzzle blasts.
• Swap 18350 Batteries in Seconds:The front-loading design lets you change the Modlite 18350 battery by simply unscrewing the light head, no tools required. You never have to remove the light body from your weapon or risk losing the exact zero of your rail accessories. Each rechargeable lithium-ion battery delivers constant, high-drain power for 35 to 40 minutes of peak brightness.

Modlite PDW350 Light Package OKW V2 Overview

Modlite PDW350 Light Package Features & Specifications

TheModlite PDW350 Light Package redefines compact tactical illumination by eliminating bulky, multi-piece mounting hardware. With an integrated mount that attaches directly to a 12 o'clock Picatinny rail, this streamlined rifle light sits flush with your handguard, keeping your weapon perfectly balanced and snag-free.

Key Features

• Integrated Mounting:Attaches straight to your Picatinny rail or quad rail without needing extra brackets, rings, or articulating arms.
• 12 O'Clock Optimization: Sits perfectly centered over the barrel for ambidextrous thumb activation and clear illumination over barricades.
• Front-Loading Battery: Swap out your Modlite 18350 battery simply by unscrewing the light head, ensuring your rail zero remains completely intact.
• Extreme Recoil Resistance: Fully potted internal electronics are tested and proven to survive the violent, continuous recoil of the select-fire SCAR 17.
• Thermal Defense Lens:The ultra-clear BOROFLOAT glass lens easily withstands intense heat spikes and acoustic shockwaves from nearby muzzle blasts.
• Total Modularity:Fully compatible with standard Surefire Scout tail caps, advanced remote switches, and interchangeable light heads.
• Tactical Tail Cap:Includes a factory switch featuring a firm, constant-on click and a light half-press for momentary activation.

Specifications

Specification

Modlite OKW V2

Modlite PLHv3

Total Output (Lumens)

1,300

1,500

Peak Intensity (Candela)

95,000

60,000

Color Temperature

5700K (Cool White)

5700K (Cool White)

Primary Tactical Application

Extreme distance engagement and overcoming dense photonic barriers (e.g., vehicle headlights)

Next-generation balance, combining enhanced volumetric spill for room clearing with highly capable throw

Operational Runtime

~35 to 40 minutes

~35 to 40 minutes

Power Source

One Rechargeable 18350 Lithium-Ion Battery

One Rechargeable 18350 Lithium-Ion Battery

Battery Restrictions

Lithium CR123 primary cells are not supported (causes excessive heat or fire/explosion)

Lithium CR123 primary cells are not supported (causes excessive heat or fire/explosion)

Primary Structural Material

6061-T6 Series Aerospace Aluminum

6061-T6 Series Aerospace Aluminum

Surface Protective Finish

Mil-Spec Type III Hardcoat Anodizing

Mil-Spec Type III Hardcoat Anodizing

Total System Weight (Loaded)

5.1 oz (144.5 grams)

5.1 oz (144.5 grams)

Total System Weight (Unloaded)

4.2 oz (119.0 grams)

4.2 oz (119.0 grams)

Overall Length

4.00 inches (with included tail cap)

4.00 inches (with included tail cap)

Host Body Width / Diameter

1.00 to 1.02 inches

1.00 to 1.02 inches

Bezel / Head Diameter

1.18 inches

1.18 inches

Mounting Interface

Integrated MIL-STD-1913 Picatinny Rail Grabber

Integrated MIL-STD-1913 Picatinny Rail Grabber

Lens Architecture

Ultra-clear BOROFLOAT glass with 98-99% light transmittance

Ultra-clear BOROFLOAT glass with 98-99% light transmittance

Recoil Survivability

Fully potted drivers tested to withstand select-fire SCAR 17 recoil

Fully potted drivers tested to withstand select-fire SCAR 17 recoil

Origin & Warranty

Made in the USA with a lifetime guarantee

Made in the USA with a lifetime guarantee

Due to the chemical process that occurs during Type 3 Hardcoat, the finish on the product can vary from one to the next, even within the same batch. We strive to create as tight a range as possible, and match parts to the best of our ability, but be aware that there may be slight variations between sections of the light.

Modlite PDW350 Light Package Inclusions

• (1) Modlite PDW350 light body with an integrated Picatinny mount.
• (1) Tail cap featuring a constant-on click and momentary half-press operation.
• (1) Rechargeable 18350 lithium-ion battery.
• (1) Light head emitter of your choice for tailored performance, such as the Modlite OKW V2 or PLHv3 (package dependent).
• (1) 2-cell XTAR charger (optional, depending on your selected package).

Modlite PDW350 Light Package FAQs

How do I attach the Modlite PDW350 to my rifle?

You do not need to buy extra rings or parts. The light has a built-in mount that attaches right to a Picatinny rail or quad rail. This keeps your rifle setup simple and saves you money.

How do I change the battery?

It is very easy, and you do not need any tools. You just unscrew the light's front head to swap the battery. This means you can leave the light attached to your rifle the whole time.

Should I choose the Modlite OKW V2 or the PLHv3 light head?

If you need to see things far away or use a scope, pick the Modlite OKW V2 because it has a very tight and bright beam. If you want a balanced light that fills dark corners inside a room, pick the PLHv3.

Can I use standard CR123 batteries in this light?

No, you cannot use CR123 batteries. Using them can cause the light to get too hot, potentially leading to a fire or explosion. You must use the included rechargeable 18350 battery.

Will the light break from heavy recoil?

No, this light is very tough. The inside parts are fully potted. It has been tested to survive the heavy recoil of a SCAR 17 rifle without breaking.

Why do the colors on my light look slightly mismatched?

The light has a special hard coat to protect it from scratches. Because of the chemicals used to create this tough finish, the colors can look slightly different from one part to the next. This is normal and means your light has a very strong coating.

What is the difference between the Modlite PDW350 and the PDW650?

The main difference is the size of the battery they use. The PDW350 uses a smaller 18350 battery, making it 4.0 inches long and giving it a 35-40-minute runtime. The PDW650 uses a larger 18650 battery, which makes the light 5.28 inches long and gives it a 75-minute runtime. Both lights use the exact same mount and light heads.

Where can I buy the Modlite PDW350 Light Package?

If you are looking for the best rifle light for your setup, you’ve stopped by the right place. The Modlite PDW350 Light Package offers not just the best light coverage, but also a snag-free profile without any additional rings. What’s more is that you can buy the Modlite PDW350 Light Package right here at Atomic Defense. We offer top-quality tactical lights to ensure that you have the best, most reliable tools for your rifle.
