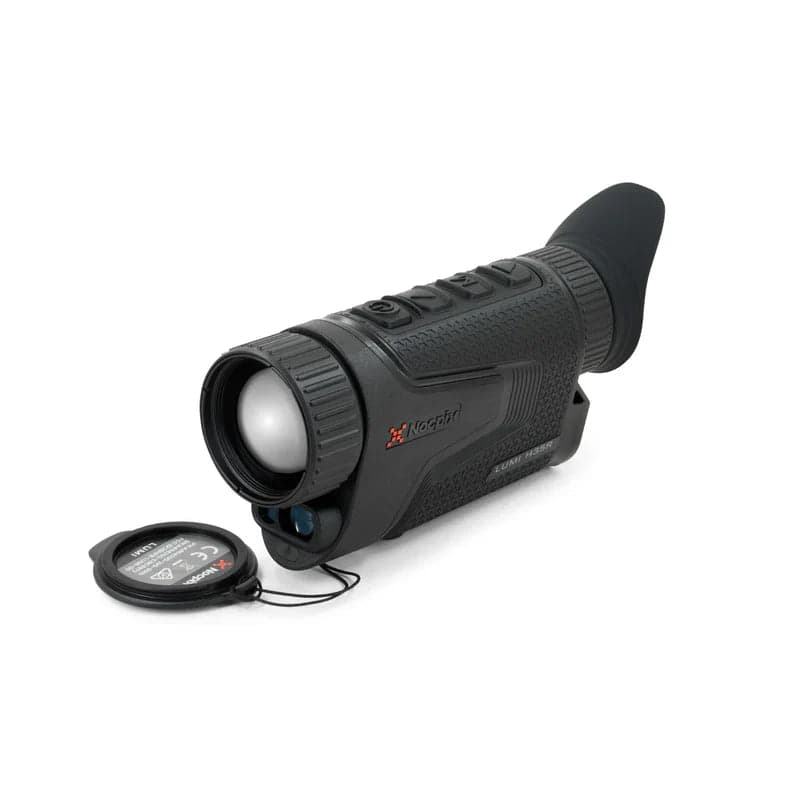

Nocpix LUMI H35R Rangefinding: The Definitive Compact Thermal Optic for 1,970-Yard Detection & Precise 875-Yard Ranging.
- The Nocpix LUMI H35R Rangefinding monocular is built for field operators and hunters who need precise target identification in total darkness. This field-proven optic combines a high-resolution sensor with an integrated laser to deliver exact distance measurements on the fly. It ensures you maintain a critical visual advantage without adding unnecessary bulk to your gear.
- Pinpoint Targets with an 875-Yard Laser Rangefinder: The system delivers accurate distance readings up to 875 yards with a strict +/- 1-yard variance. This instant feedback takes the guesswork out of your shot, making this compact H35R Rangefinder a reliable tool for night operations.
- Detect Heat Signatures Up to 1,970 Yards Away: Equipped with a 640x512 thermal sensor and a fast 35mm f/0.9 lens, the Nocpix LUMI H35R cuts through total darkness, fog, and heavy brush. The crisp 1024x768 AMOLED display provides the detail required to clearly identify targets at long distances, ensuring superior visual clarity in the field.
- Operate for 8+ Hours with Removable 18650 Batteries: This unit runs on standard, rechargeable IRB-2 batteries that provide over 4 hours of continuous power each. A spare battery is included in the box, ensuring your optic stays powered through extended missions without forcing you to carry heavy power banks.
- Survive Harsh Elements with an IP67 Waterproof Rating: Built for demanding environments, the housing is fully sealed against dust and water. It survives being submerged in 1 meter of water for 30 minutes, meaning sudden downpours or drops in the mud will not stop your operation.
LUMI H35R LRF Features & Specifications
The Nocpix LUMI H35R Rangefinding thermal monocular delivers high-resolution thermal detection and exact distance measurement in a single, field-ready unit. Built for operators and hunters who require precision without the penalty of extra weight, this optic integrates a powerful laser rangefinder directly into a compact polymer housing. By combining a 640x512 thermal sensor with an 875-yard laser, the LUMI H35R allows you to spot heat signatures, instantly measure the distance to the target, and make accurate decisions in total darkness or severe weather conditions.
H35R Nocpix Key Features
- Pinpoint Targets at 875 Yards: An integrated laser rangefinder provides real-time distance measurements with a strict +/- 1-yard accuracy, completely removing the guesswork from your shot.
- Detect Heat Signatures at 1,970 Yards: A high-resolution 640x512 thermal sensor and a fast 35mm f/0.9 lens cut through heavy brush, fog, and total darkness.
- Operate on Standard 18650 Power: Powered by common, removable 18650 rechargeable batteries. Each battery provides over 4 hours of continuous run time, and swapping them in the dark is fast and simple.
- Capture Audio and Video: Onboard 32 GB internal storage allows you to record high-quality photos, videos, and audio directly to the device during your operation.
- Survive Total Submersion: The IP67-rated rubberized polymer housing is fully sealed against dust and survives submersion in 1 meter of water for 30 minutes.
- Enhance Vision in Rain or Fog: A specialized Ultra-Clear mode automatically adjusts sensor response to improve image contrast and detail during high humidity or rain.
Specifications
Specification
Data
Sensor Resolution
640x512
Pixel Size
12 µm
Frame Rate
50 Hz
Sensor Sensitivity (NETD)
≤18 mK
Objective Lens
35 mm f/0.9
Native Magnification
2.5x
Digital Zoom
Up to 8x
Field of View
12.5° × 9.4°
Detection Range
1,970 yards
Laser Rangefinder Distance
875 yards
Display Type & Resolution
AMOLED 1024x768
Onboard Storage
32 GB
Power Supply
Removable 18650 Li-ion Battery
Operating Temperature
-4°F to 122°F
Ingress Protection
IP67 (Waterproof/Dustproof)
Weight
13.58 oz
Dimensions
5.63" x 1.85" x 2.91"
What's in the box of the Nocpix H35R?
- (1) Nocpix LUMI H35R Thermal Imaging Monocular
- (1) Objective Lens Cap
- (2) 18650 Rechargeable Batteries
- (1) 18650 Battery Charger
- (1) USB-C Cable
- (1) Carrying Bag and Straps
- (1) Microfiber Lens Cloth
- (1) User Manual
Nocpix LUMI H35R LRF FAQs
How does the Nocpix LUMI H35R help me see in the dark?
It uses a thermal sensor to detect heat instead of light. This means it sees the body heat of targets. It works perfectly in total darkness, heavy rain, or thick brush where regular night vision fails.
What does the LUMI H35R Rangefinding feature do?
It uses an invisible laser to measure exactly how far away a target is. It gives you instant distance readings up to 875 yards. This takes the guesswork out of your shot.
How long does the battery last in the field?
This device uses standard, removable 18650 batteries. Each battery lasts over 4 hours. The box includes two batteries, giving you over 8 hours of power. You can easily swap them in the dark.
Can I use the H35R Rangefinder in bad weather?
Yes. It is fully waterproof and dustproof with an IP67 rating. It can even survive being underwater for 30 minutes. Rain, snow, and mud will not stop it from working.
Where can I find the user instructions?
You can download the complete LUMI H35R digital manual directly from the link: here. It explains how to adjust your settings, record video, and master the device.
Where can I purchase the Nocpix LUMI H35R?
If you want to buy LUMI H35R thermal monoculars, you can find the Nocpix LUMI H35R for sale directly from Atomic Defense. Purchasing from us ensures you receive full customer support and a field-ready unit for your next mission.
