RNV 31 Night Vision | The Upgraded Jerry-31 for Enhanced Situational Awareness

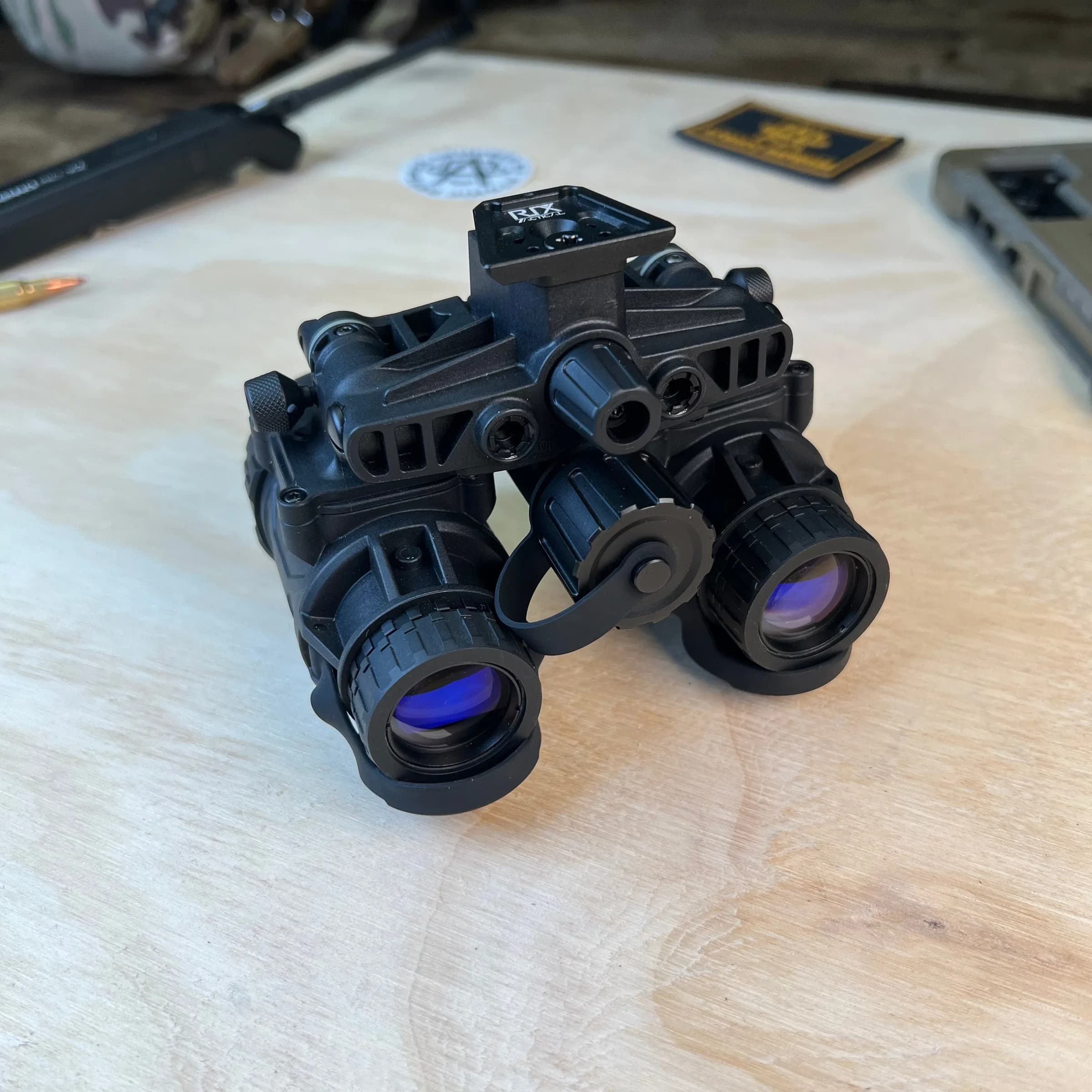

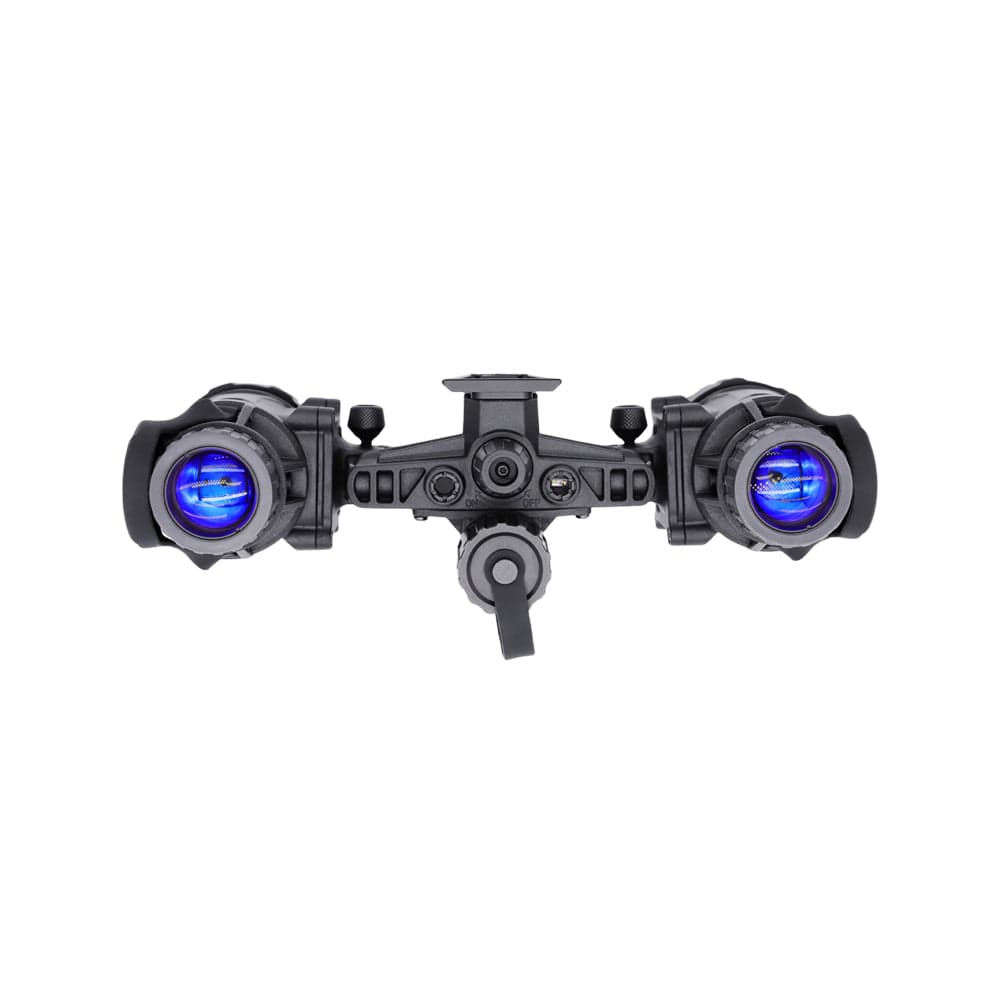

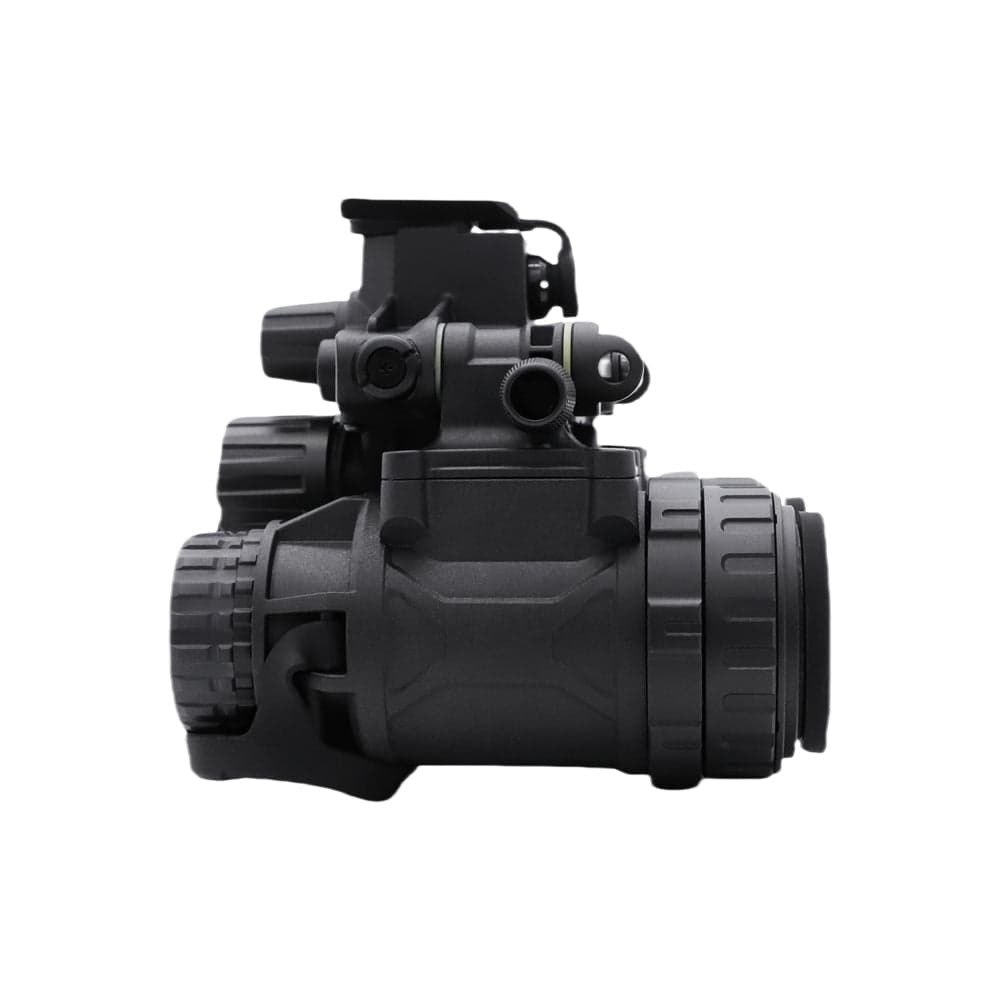

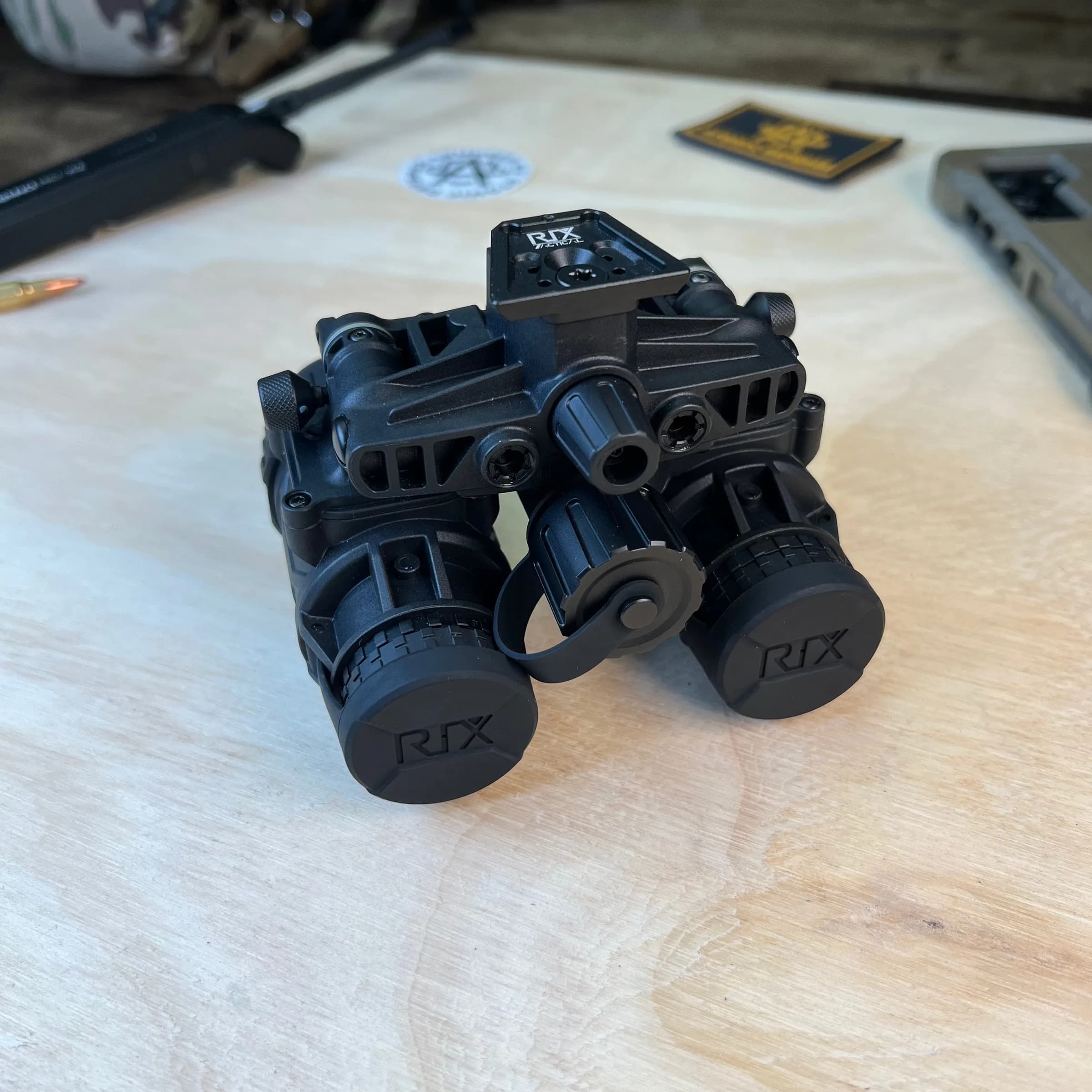

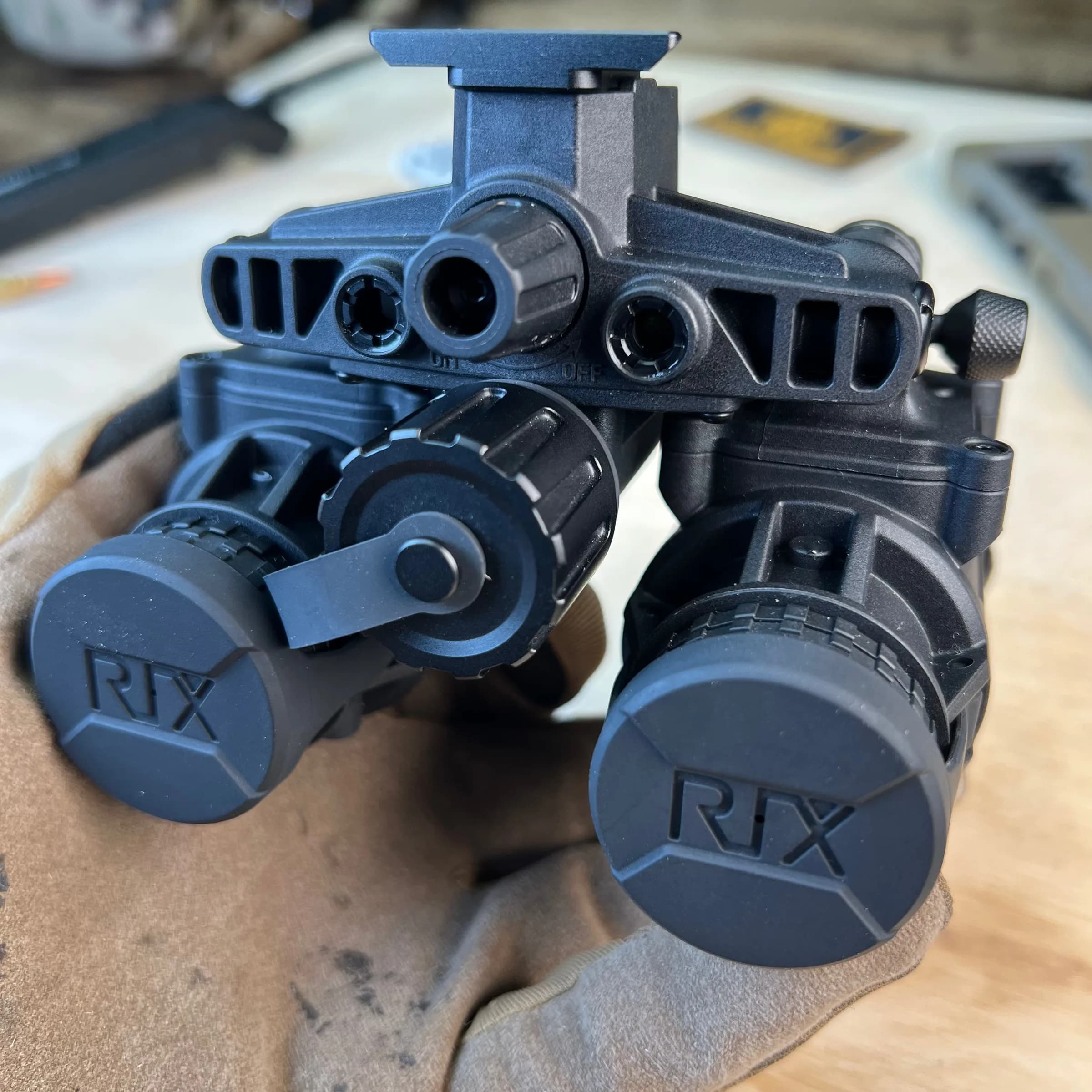

- TheRIX RNV-31 is a night vision goggle that helps you see clearly in the dark. Built as the upgraded version of the Jerry-31, this tool is extremely lightweight and packed with features to keep you safe and aware at night.
- Weighs Just 500g (17.6 oz): This lightweight goggle helps reduce neck strain, allowing you to stay focused and comfortable during long missions.
- Total Control with Manual Gain: Easily adjust the screen's brightness to see targets more clearly, whether it's very dark or there is some background light.
- 20-Hour Runtime on a Single AA: Get extended use from just one AA battery , with smart features like flip-up-to-shut-off to save power when you're not looking through it.
- Fully Waterproof to 10 Meters (32 ft): Made to work in harsh weather, you can rely on this goggle in heavy rain or other wet conditions without it getting damaged.
RIX RNV 31 Review
What are some common accessories to add to the RIX RNV 31?
Headborne Mounting Systems for the RIX RNV-31

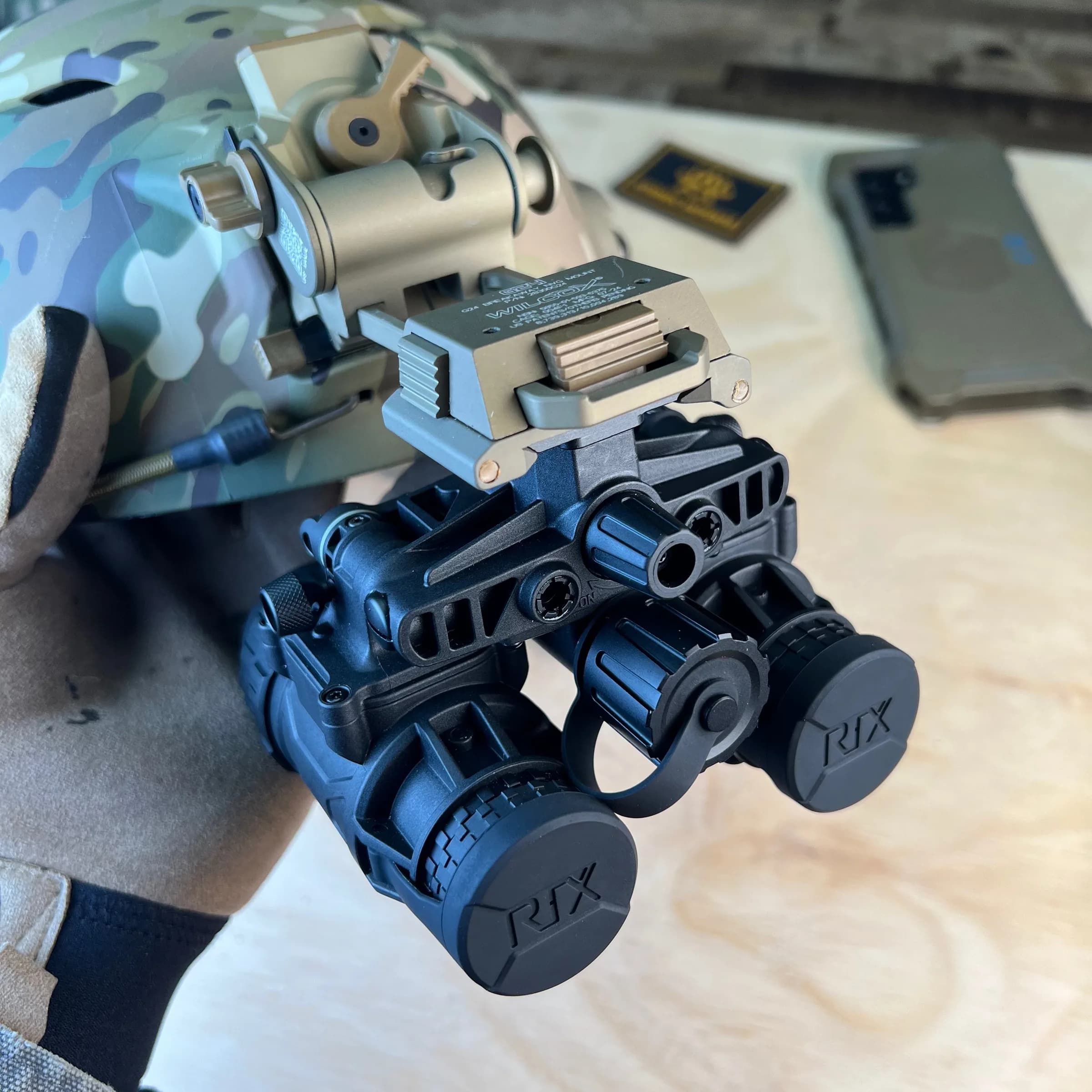

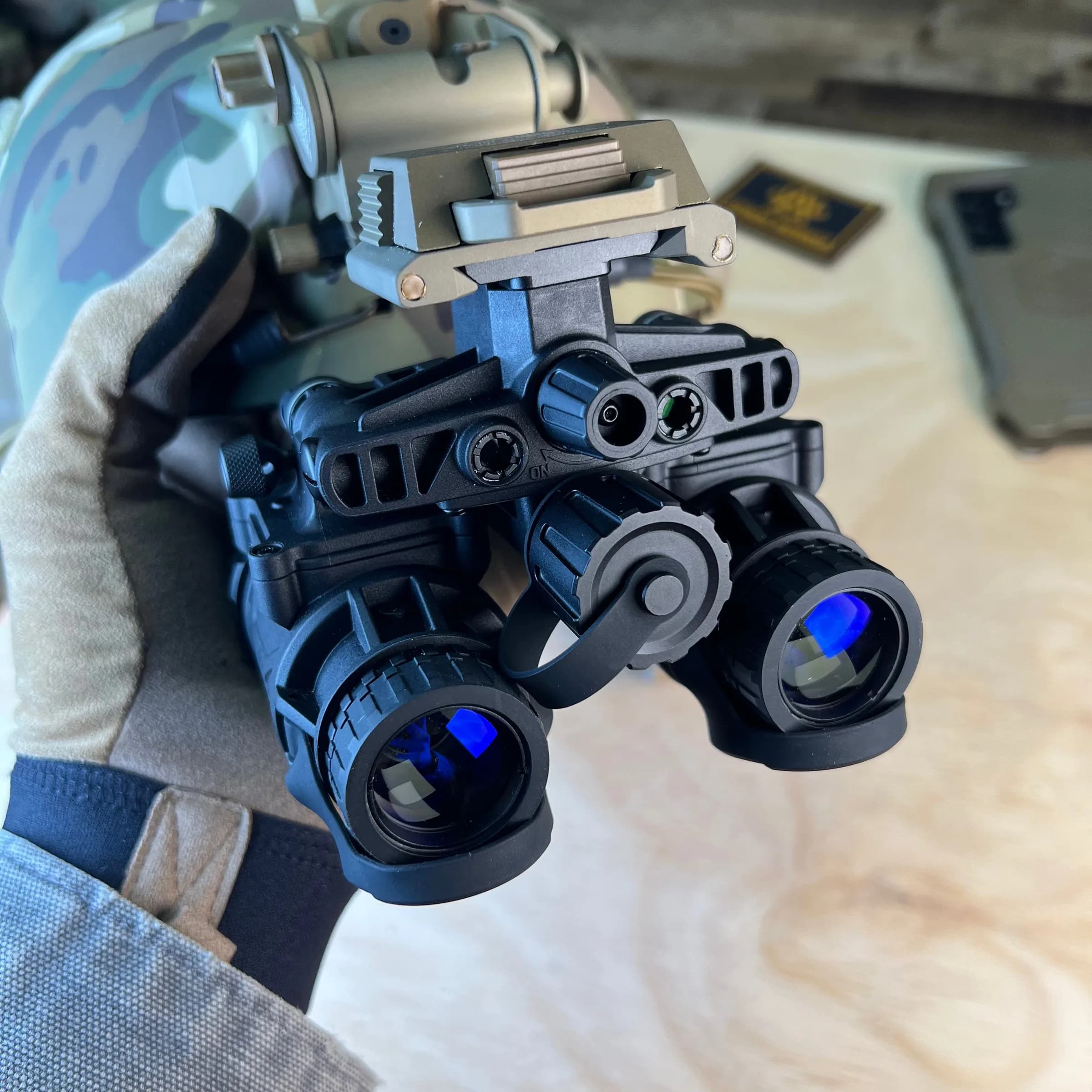

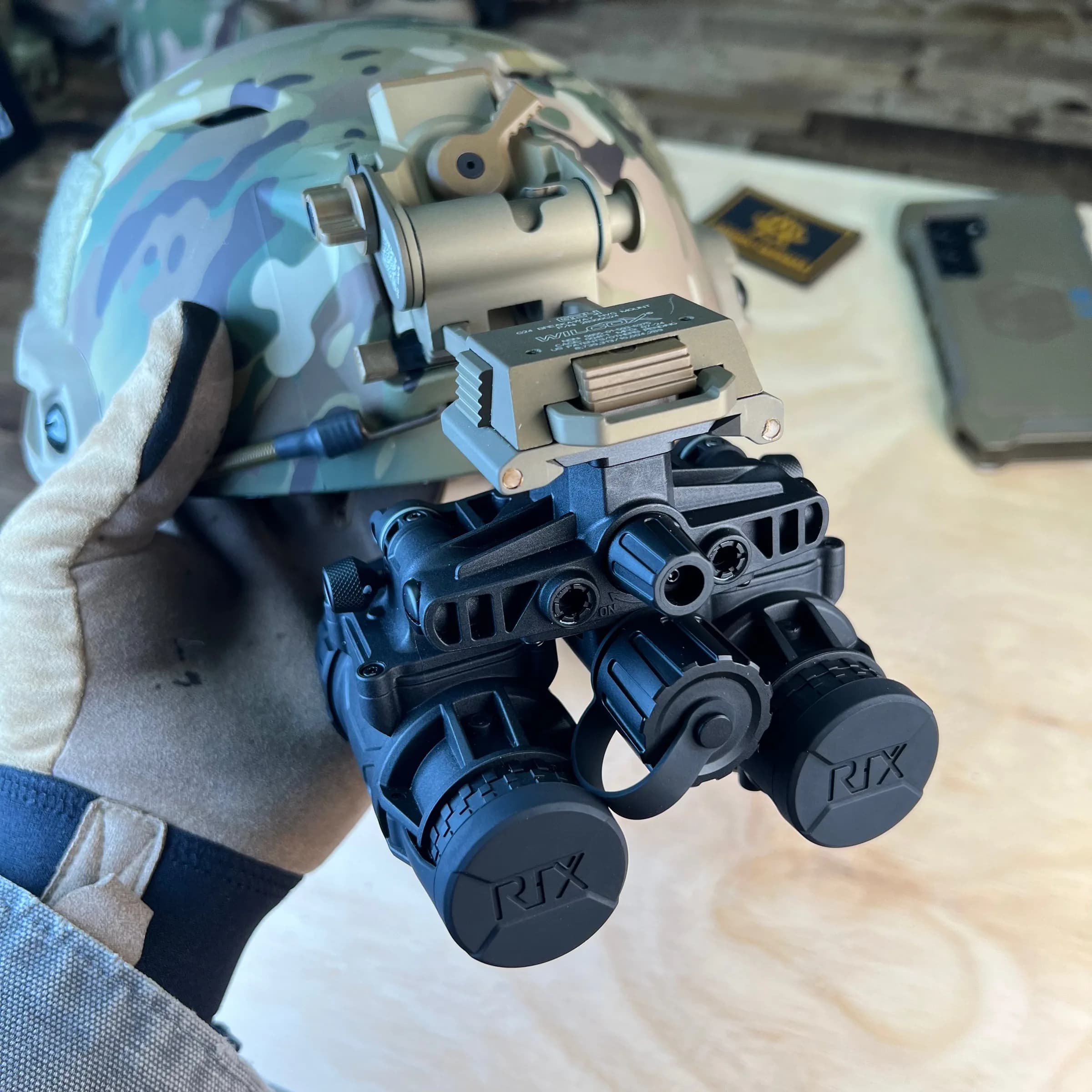

- Wilcox G24: This mount is the critical interface between the RNV-31 and a helmet. Its dovetail shoe directly accepts the RNV-31, while the front plate clips into the helmet's shroud, providing a secure, adjustable, and breakaway connection for the operator.
- Galvion Caiman Ballistic: A ballistic helmet platform designed with a universal shroud that serves as the attachment point for the Wilcox G24 mount, enabling the secure use of the RNV-31.
- Ops-Core FAST SF Gen 2: This high-cut helmet provides an extremely stable and lightweight platform for the RNV-31. Its integrated shroud is optimized for mounts like the Wilcox G24, ensuring a wobble-free fit.
- Team Wendy Exfil SL: A ballistic helmet featuring a Wilcox shroud, making it ready to accept the G24 mount. It provides a secure and comfortable platform for deploying the RNV-31 during extended operations.

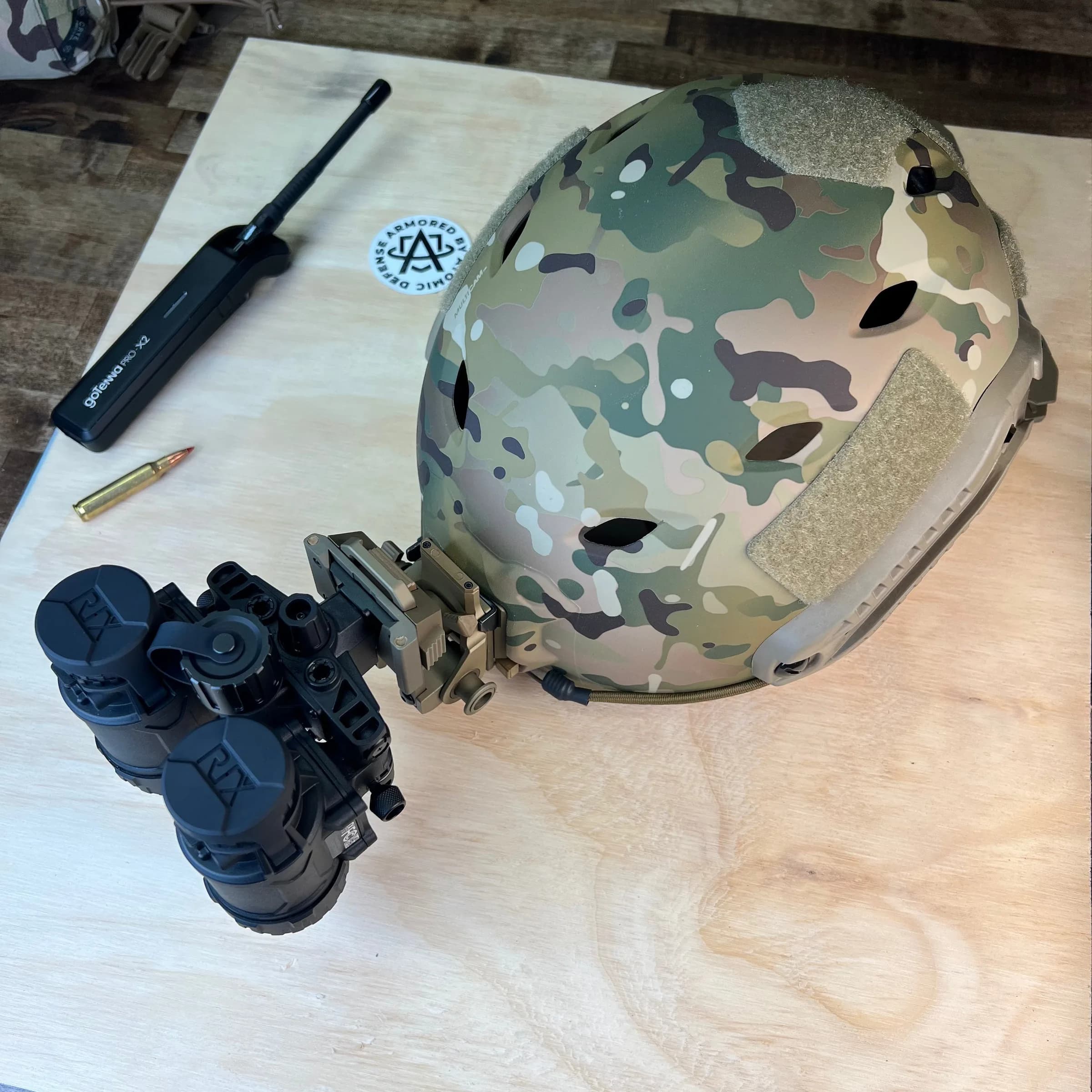

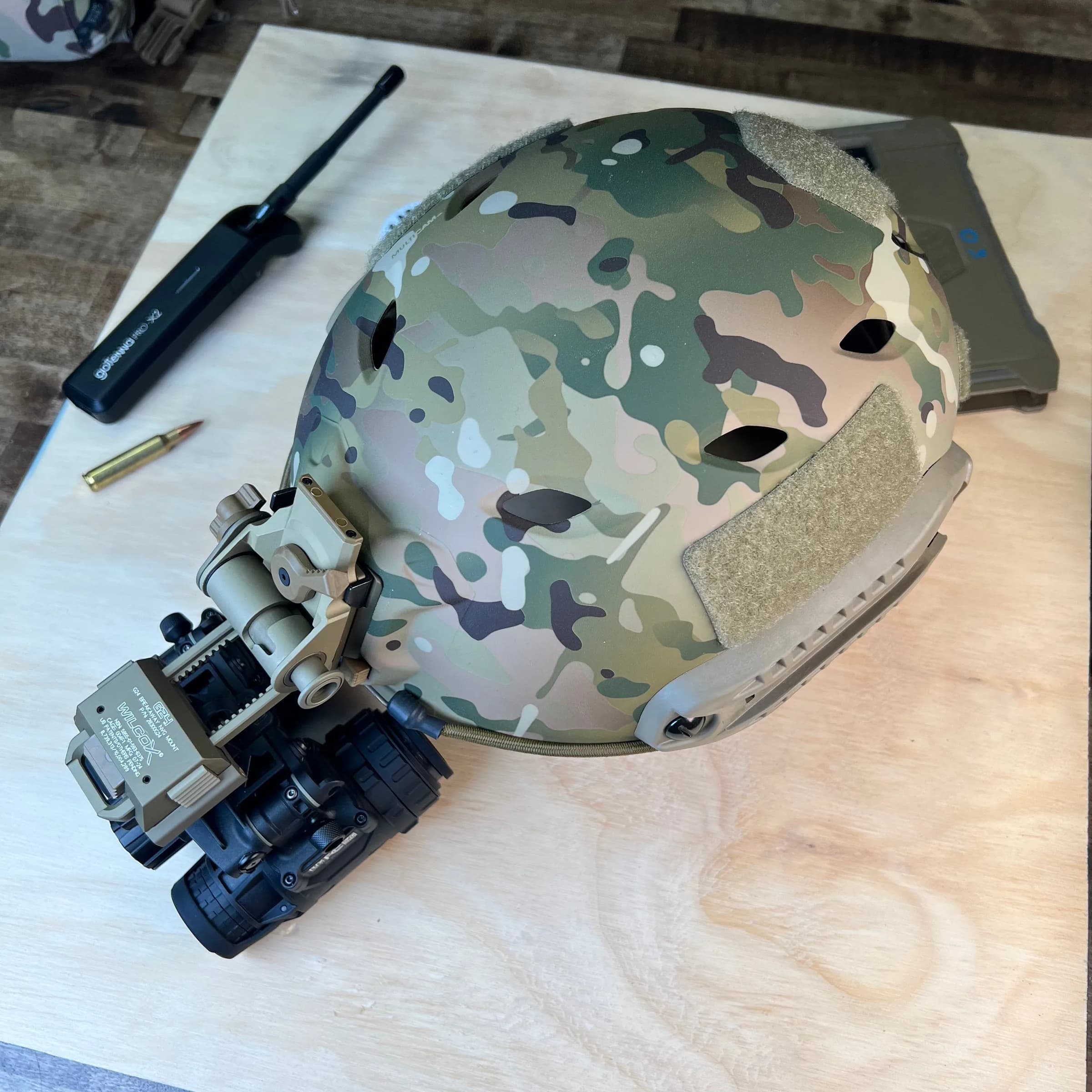

- Atomic Defense FAST High-Cut Ballistic Helmet: This helmet serves as a foundational platform for the RNV-31 system, featuring a high-cut design and a standard shroud for seamless integration with the Wilcox G24 mount.
System Balancing & Stability for the RIX RNV-31
- Ops Core Counterweight: This modular weight system attaches to the rear of an Ops-Core helmet to offset the front-mounted weight of the RNV-31, improving user comfort and endurance.
- Team Wendy Counterweight: Designed to attach to the back of Team Wendy helmets, this kit provides the necessary balance to counteract the RNV-31's weight, preventing helmet slippage and reducing operator fatigue.
Visual Signature Reduction
- Agilite Mitznefet: This helmet cover drapes over the helmet and the mounted RNV-31 to break up the system's silhouette. It provides effective 3D concealment, reducing the operator's visual signature to avoid detection.

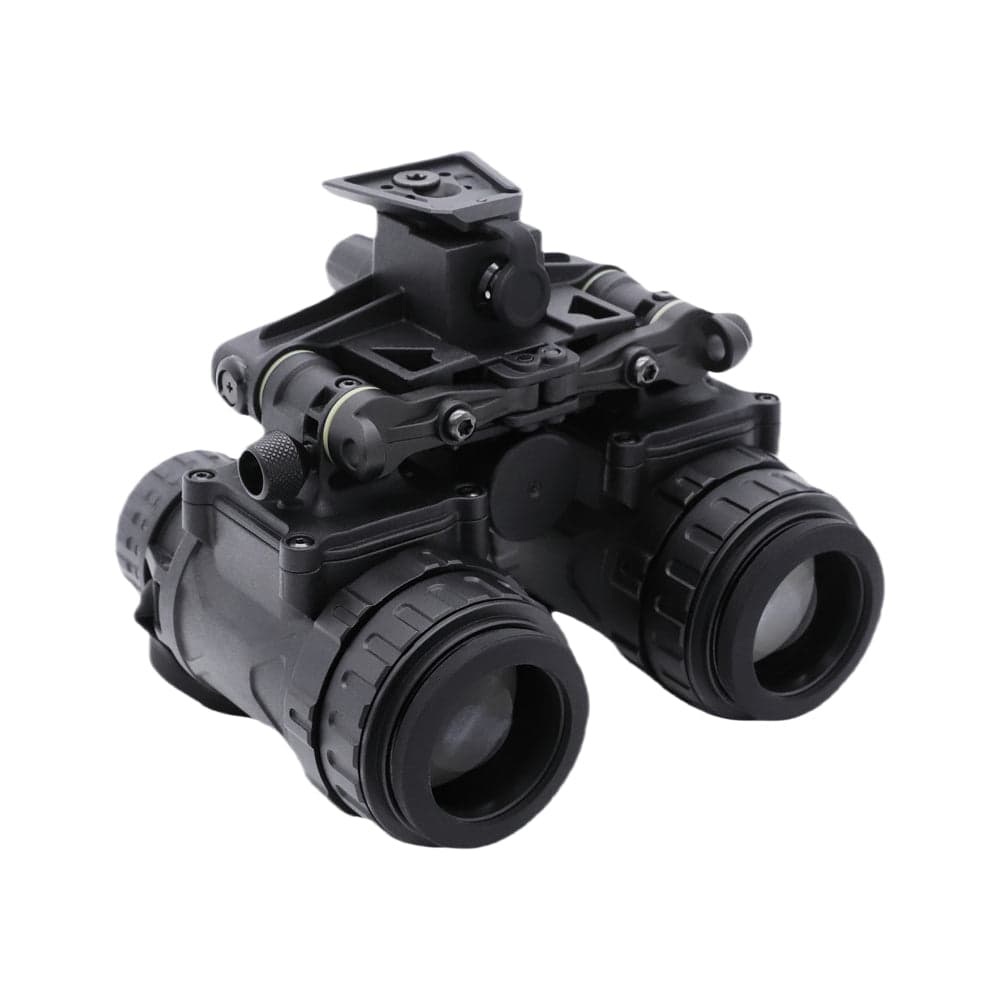

RNV-31 Features and Specifications
The RIX RNV-31 is an ultra-lightweight and rugged night vision goggle built to replace the popular Jerry-31. It's essential for any operator because it combines a featherlight design that reduces neck strain with advanced, user-friendly features like manual gain and smart power-saving modes. This allows you to stay focused, comfortable, and effective during the longest missions, even in total darkness or harsh weather.
Key Features
- Manual Gain Control: This lets you adjust the brightness of the image for the best possible view in changing light conditions.

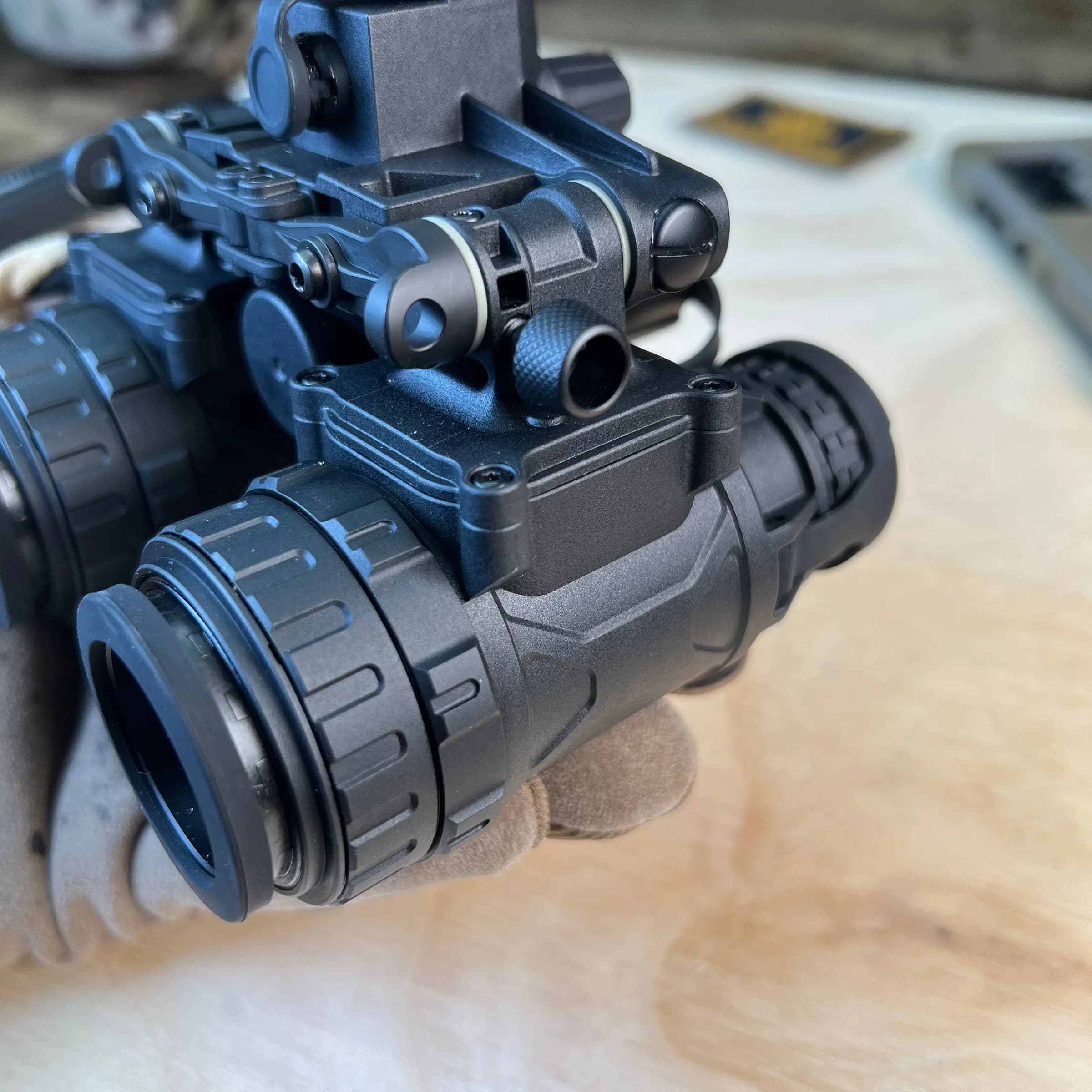

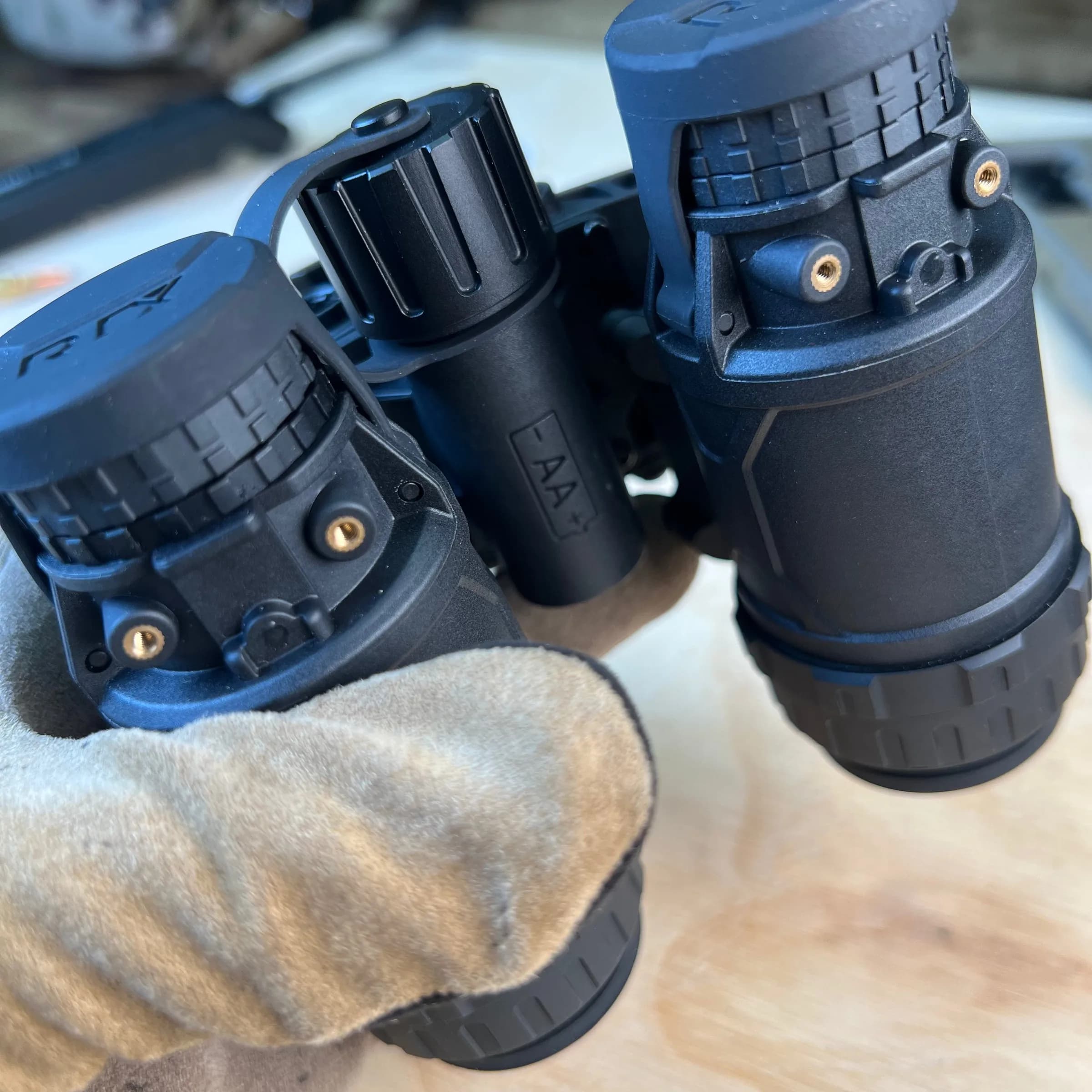

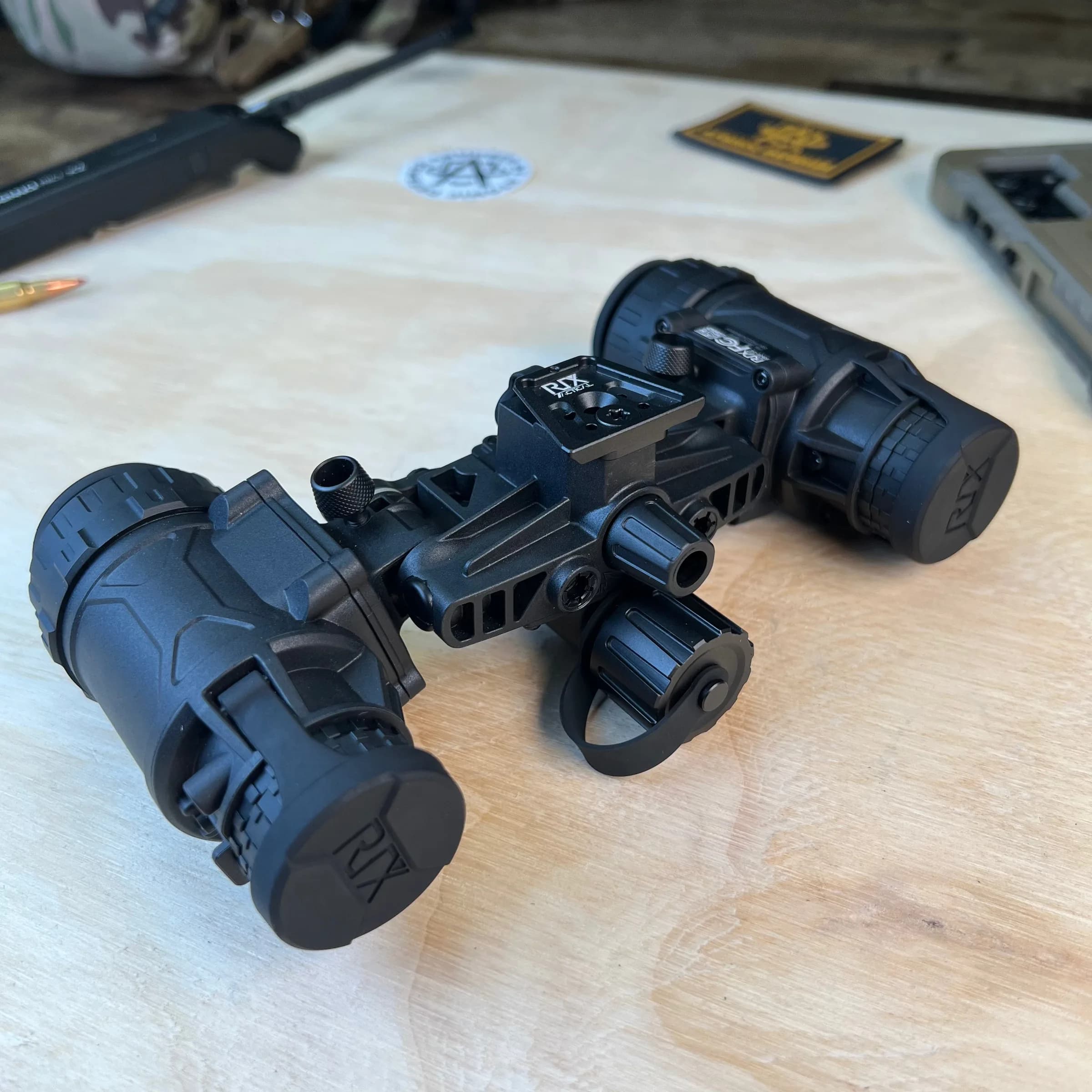

- Articulating Pods with Auto Shut-Off: Each optical pod can be flipped up independently. The "Flip To Power Off" feature automatically turns the unit off when it's flipped up or to the side, saving battery life.
- Auto Standby Mode: The goggle saves power by automatically entering a sleep mode after three minutes of inactivity. It wakes up instantly when moved.
- Built-in IR Illuminator: An internal infrared light lets you see clearly even in complete darkness where no natural light is available.
- Superior Waterproofing: The durable housing is built to handle rough weather and is waterproof up to a depth of 10 meters (32 feet).
Specifications
- Magnification: 1x
- Field of View (FOV): 40°
- Objective Lens: 25mm; F1.2
- Focus Range: 0.25m to Infinity
- Diopter Adjustment: -4 to +2

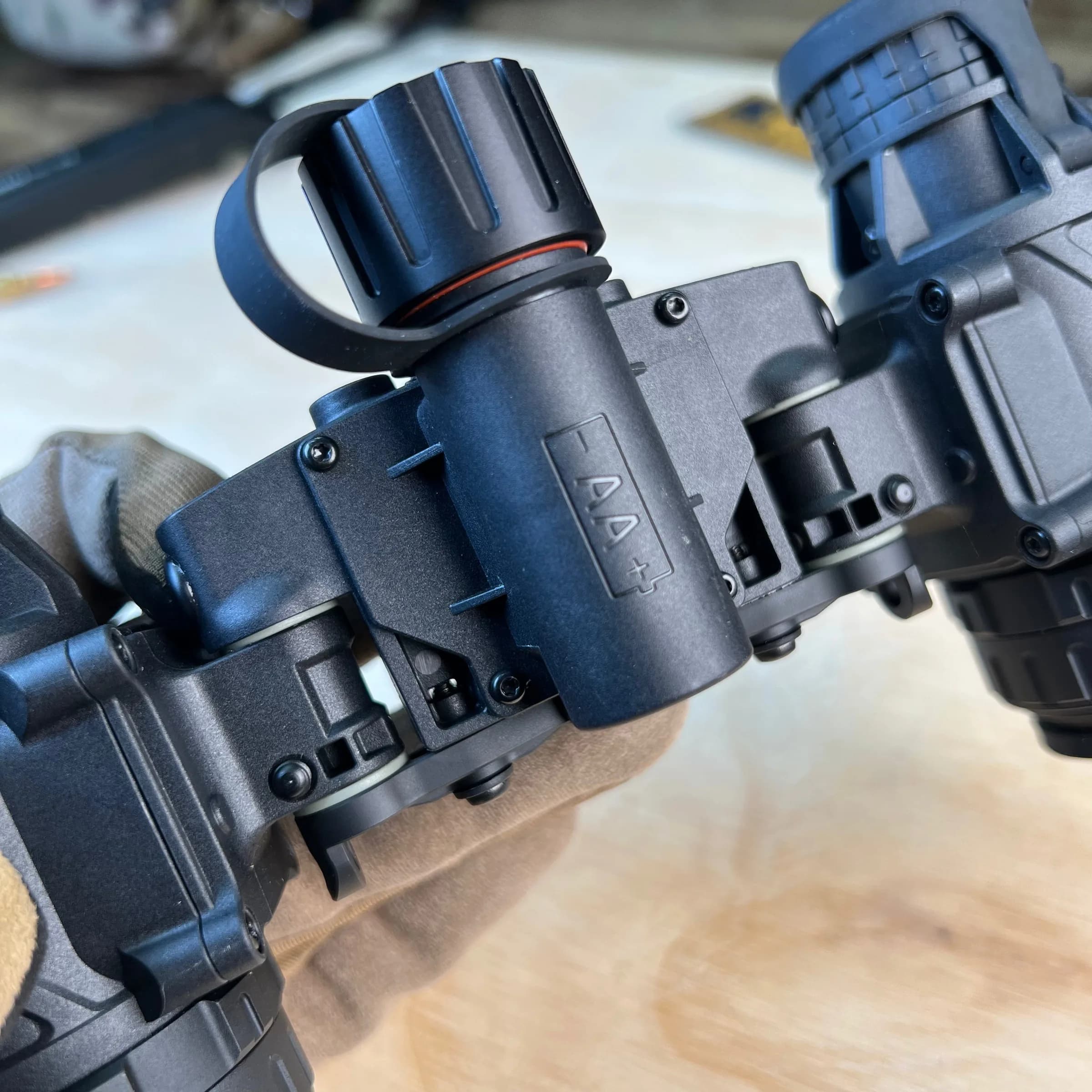

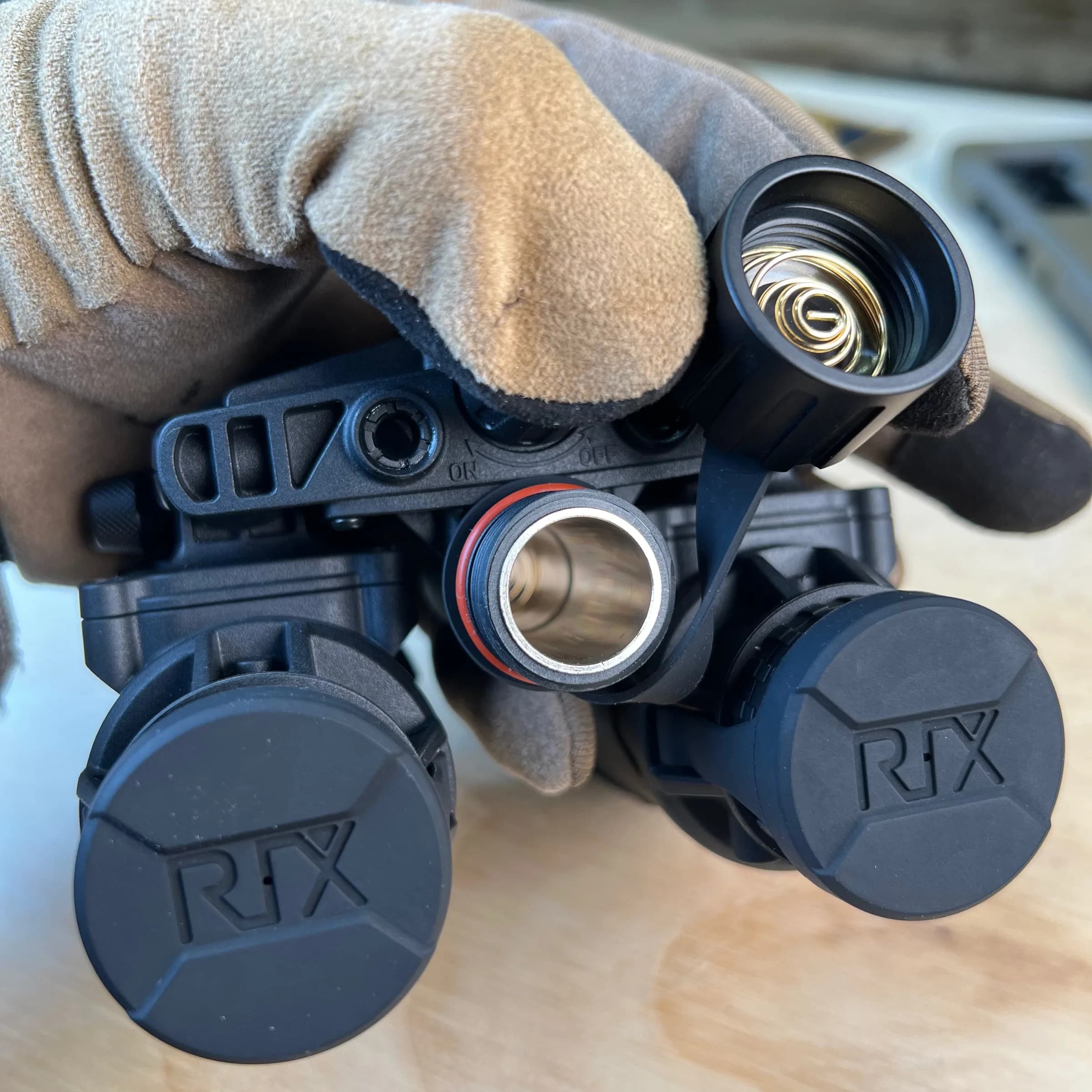

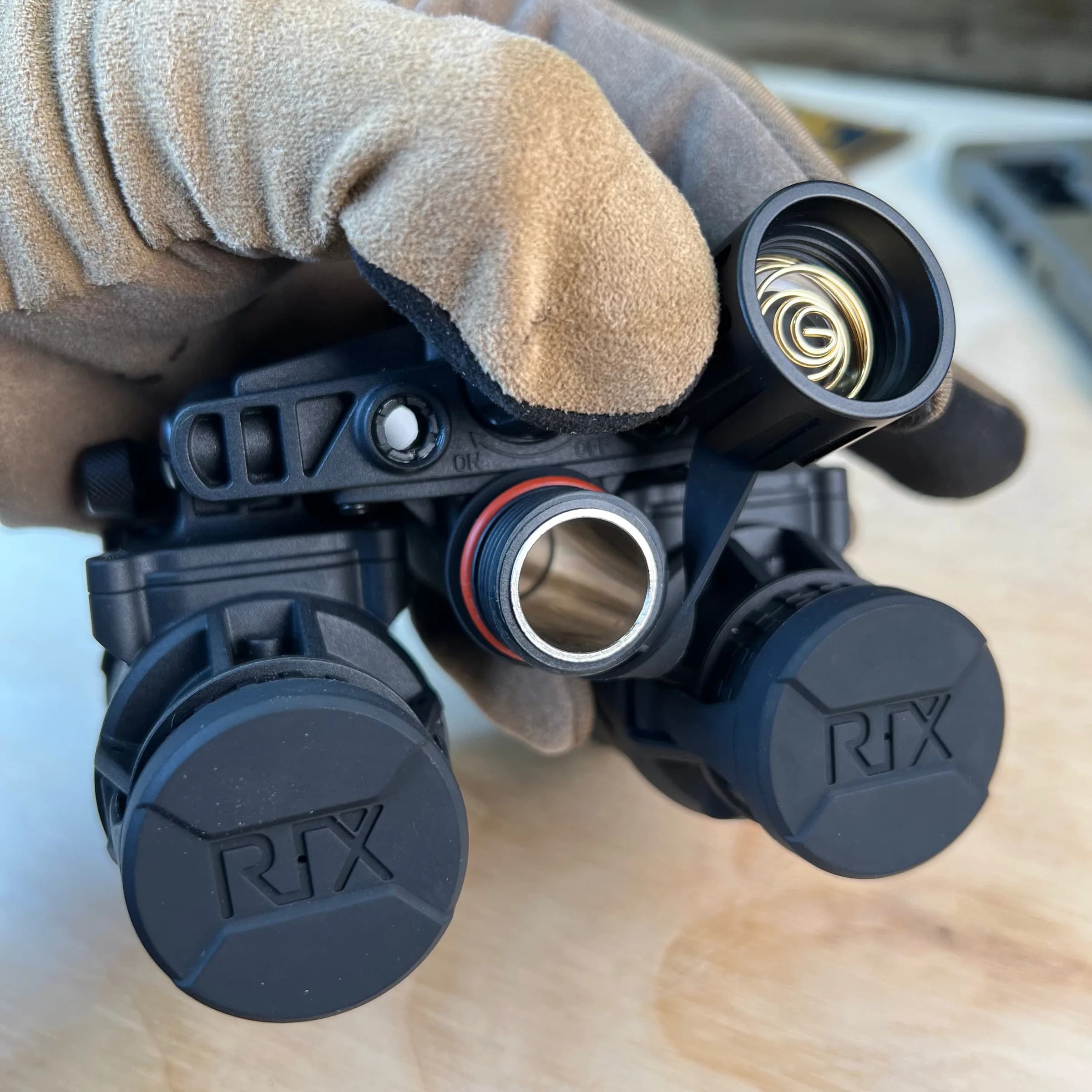

- Battery Type: 1 x AA Battery
- Operating Time: ~20 hours on one AA battery; 50+ hours with optional external pack
- IR Illuminator Wavelength: 850nm
- Waterproof Rating: 10 meters
- Operating Temperature: -40°C to +50°C (-40°F to 122°F)
- Dimensions: 110mm x 97mm x 90mm
- Weight: 500g ± 5% (approx. 17.6 oz)

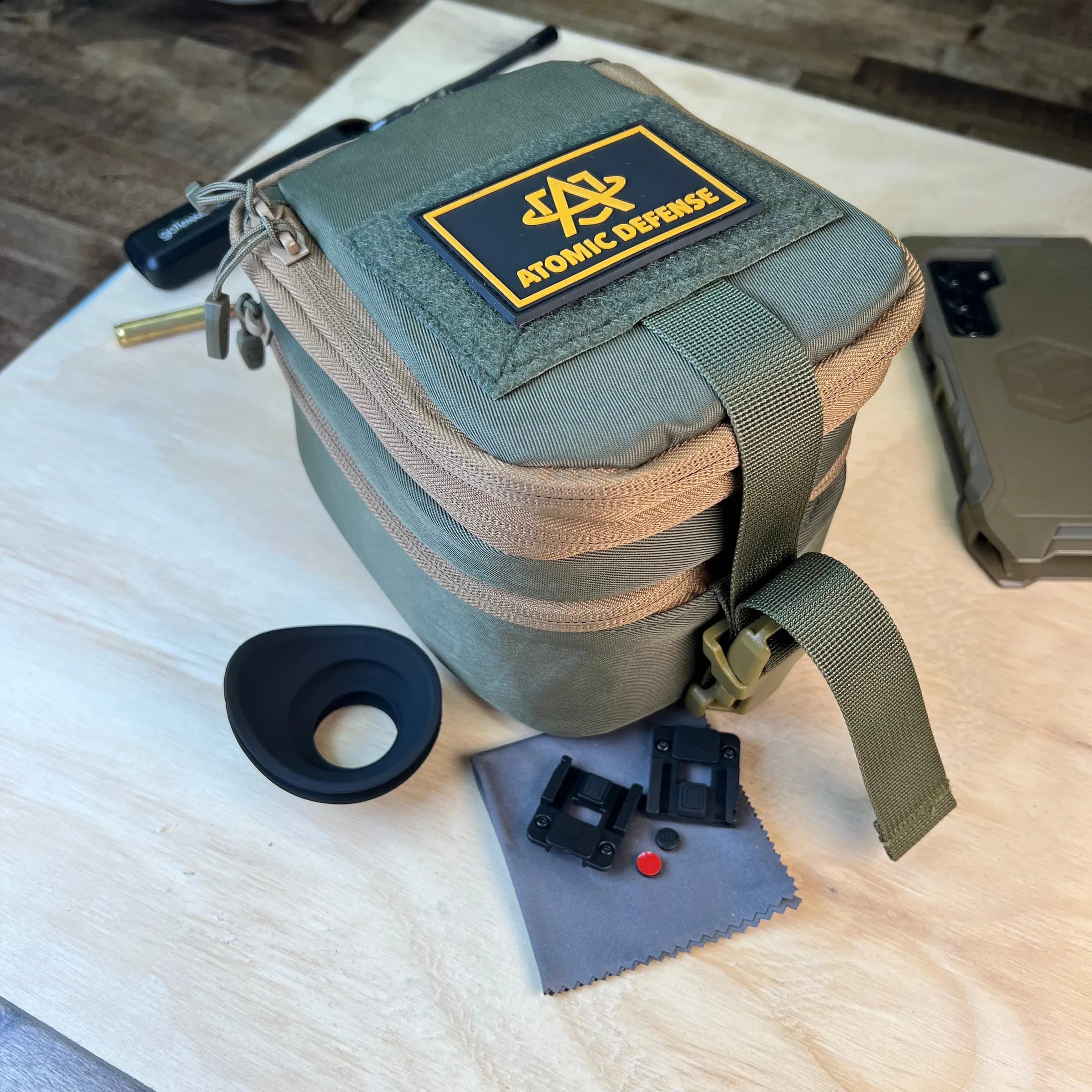

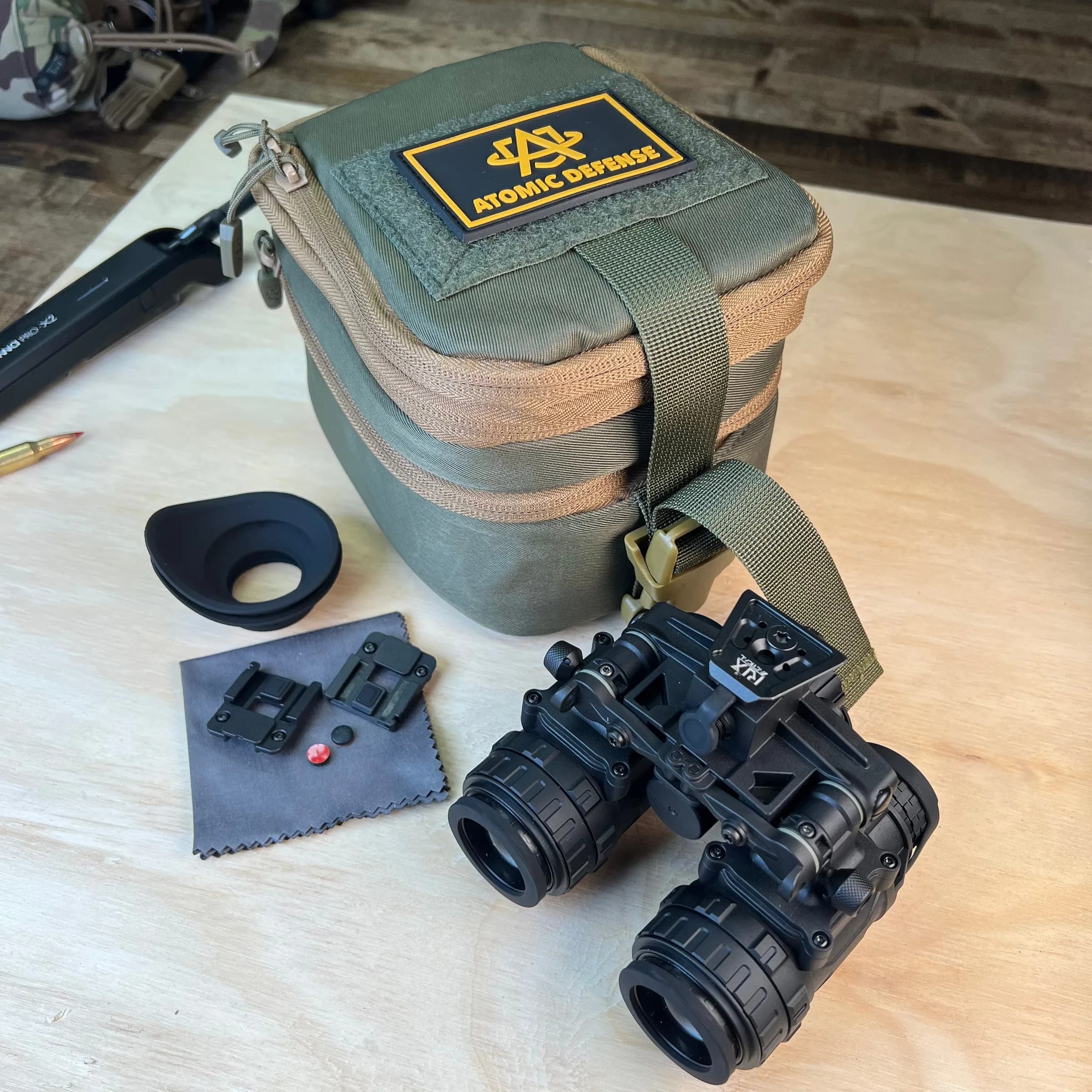

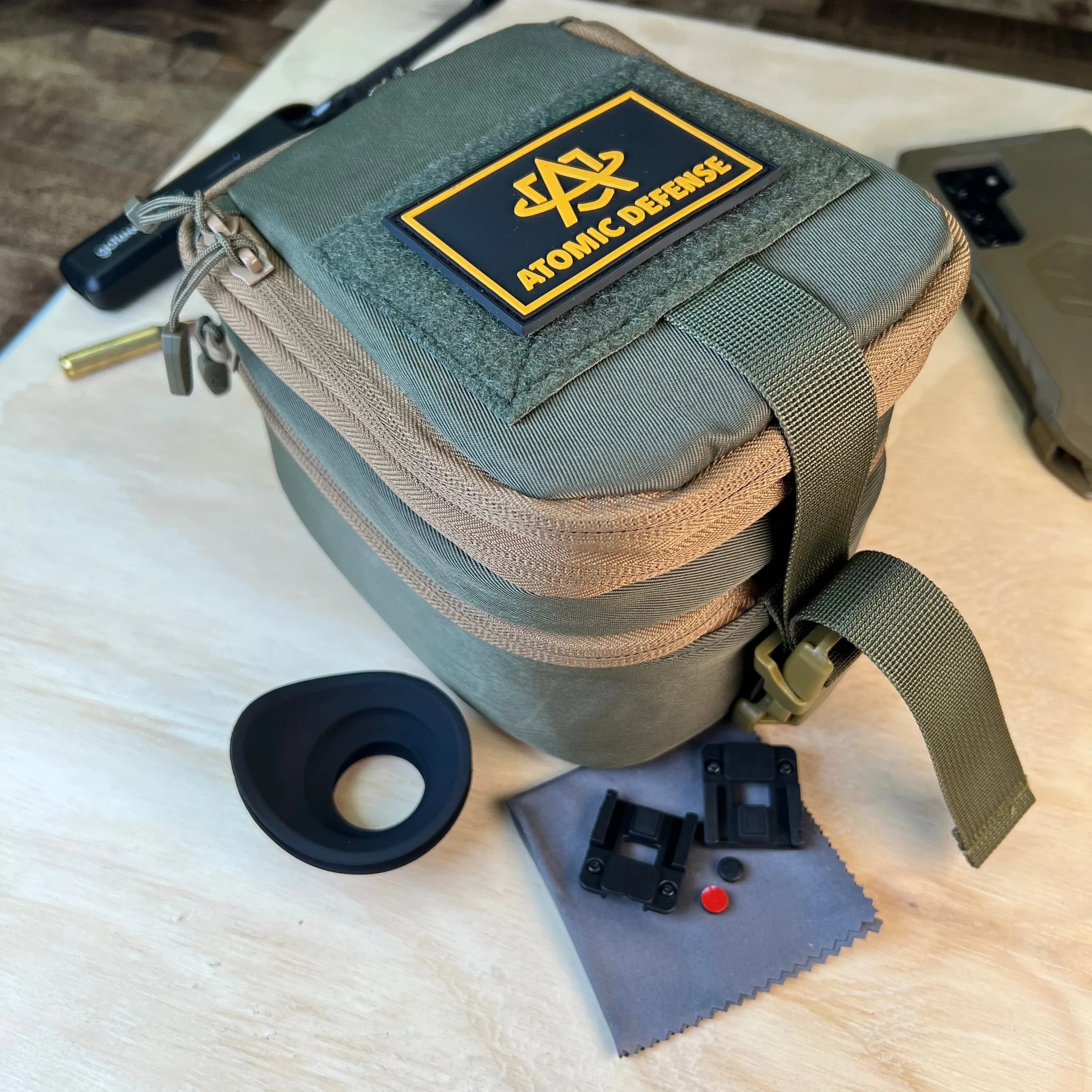

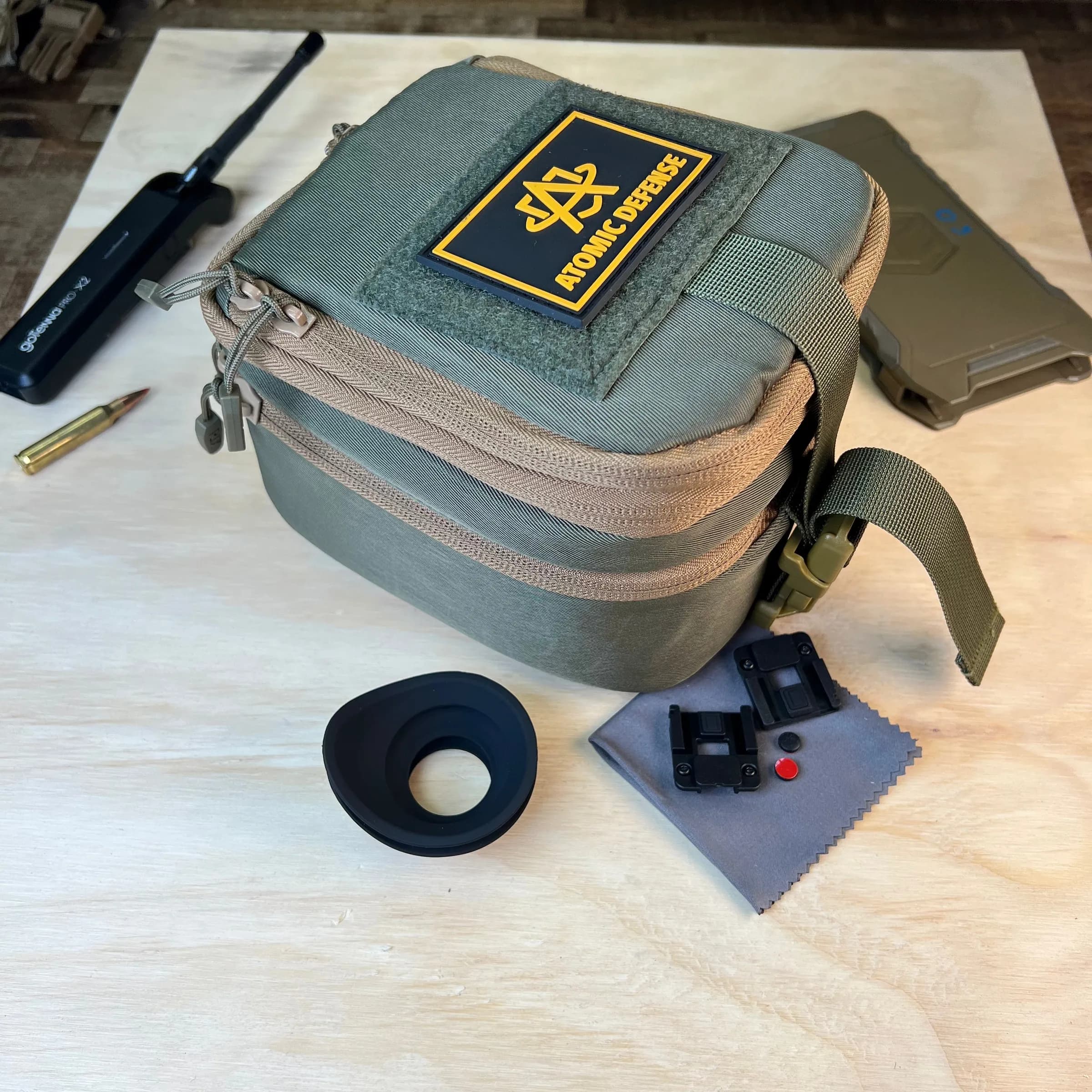

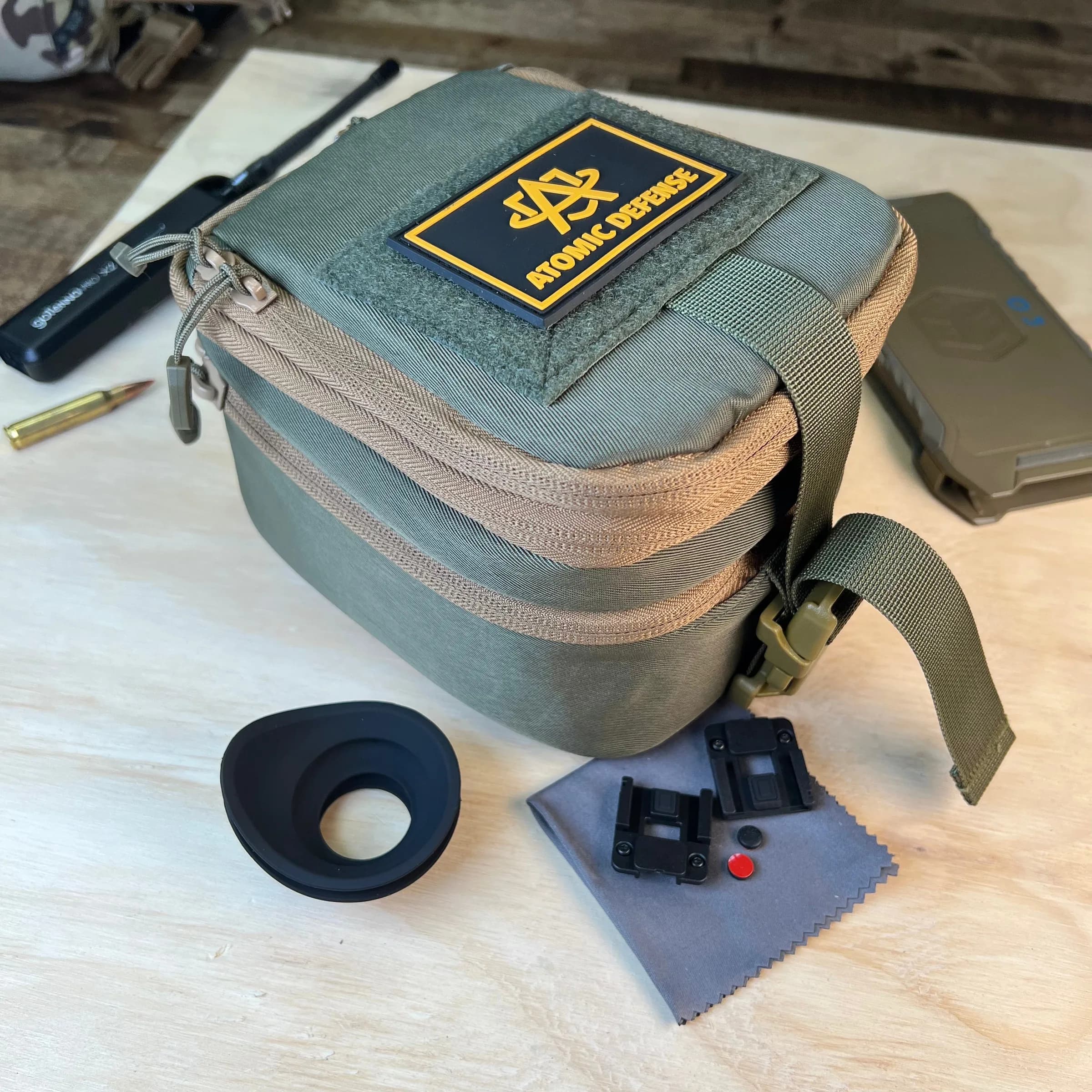

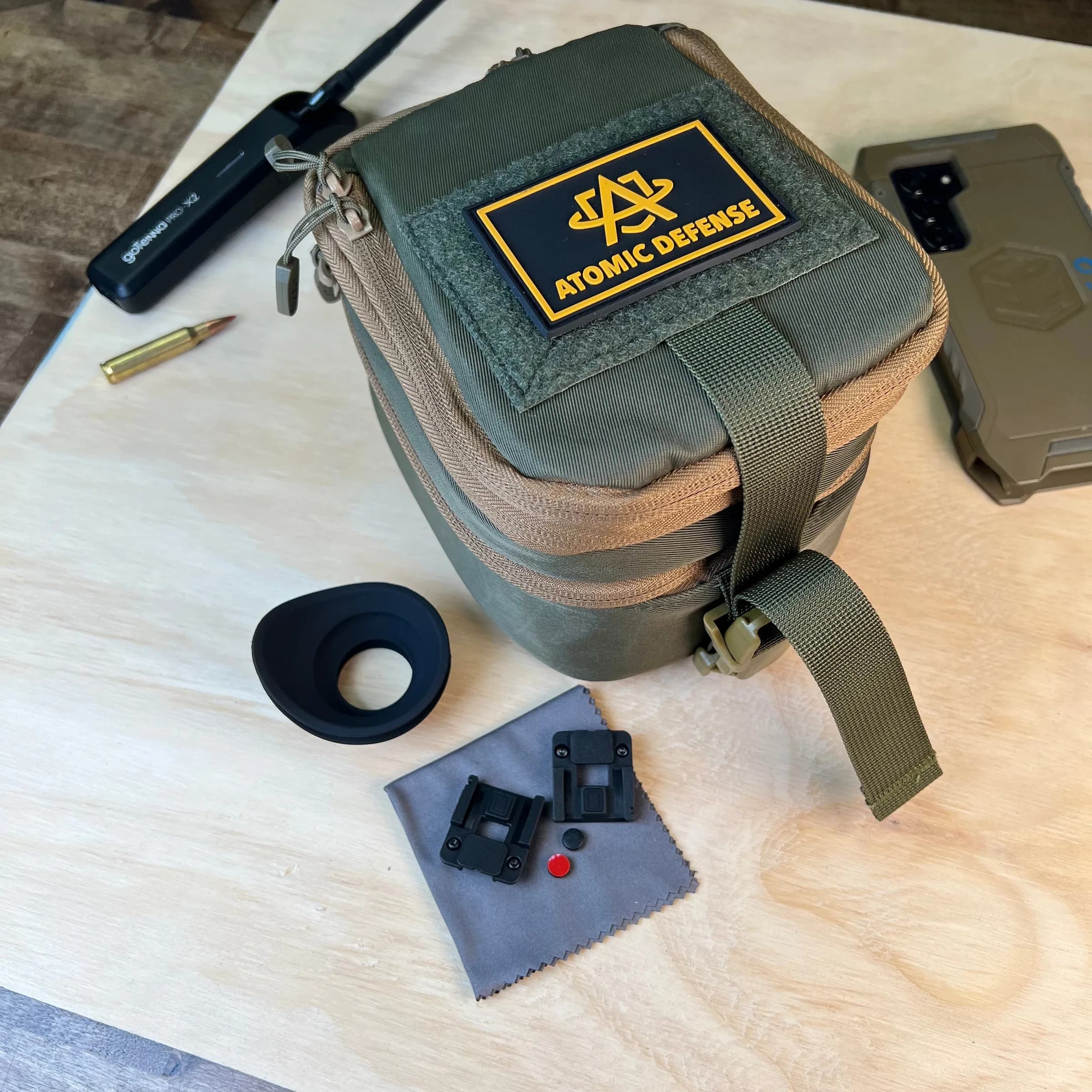

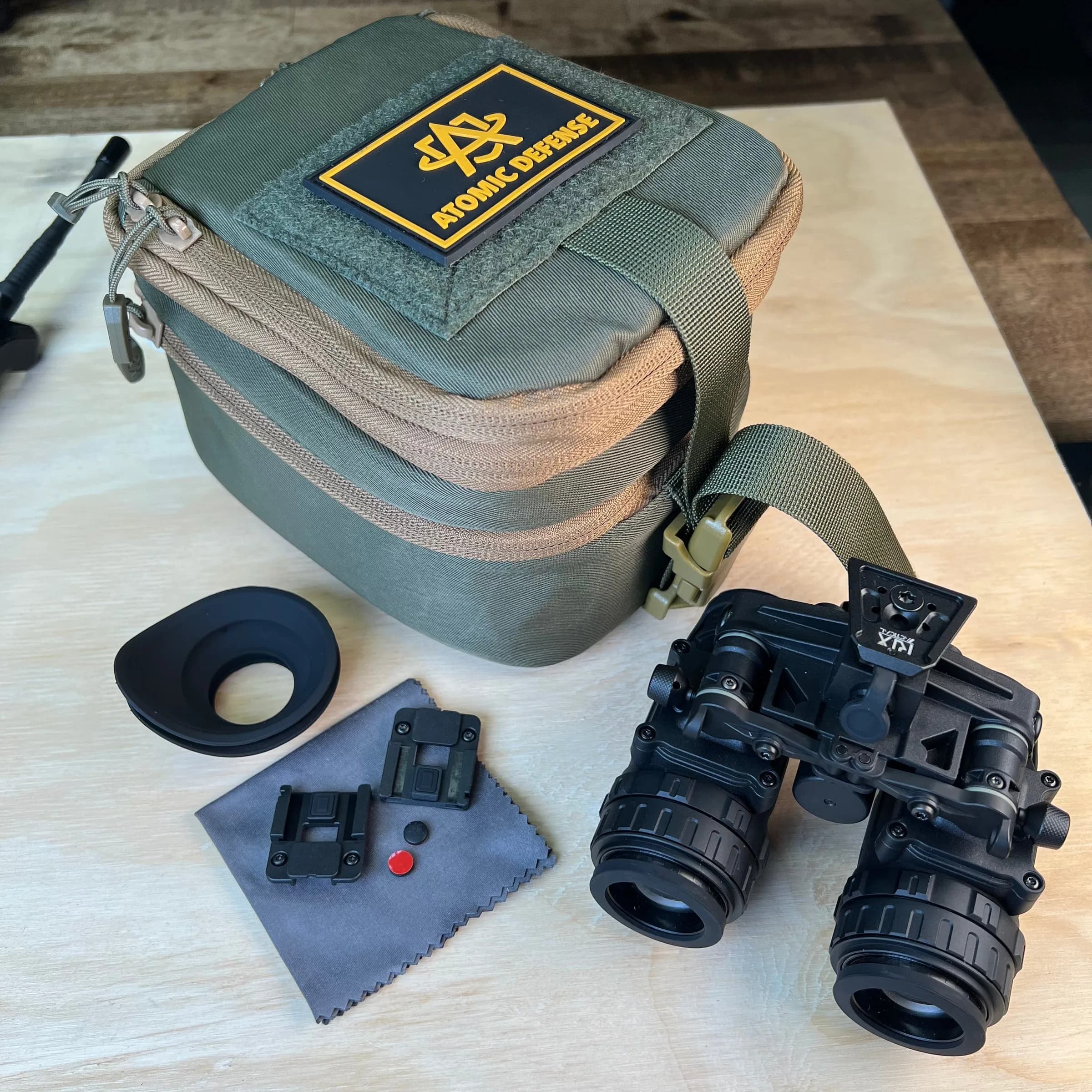

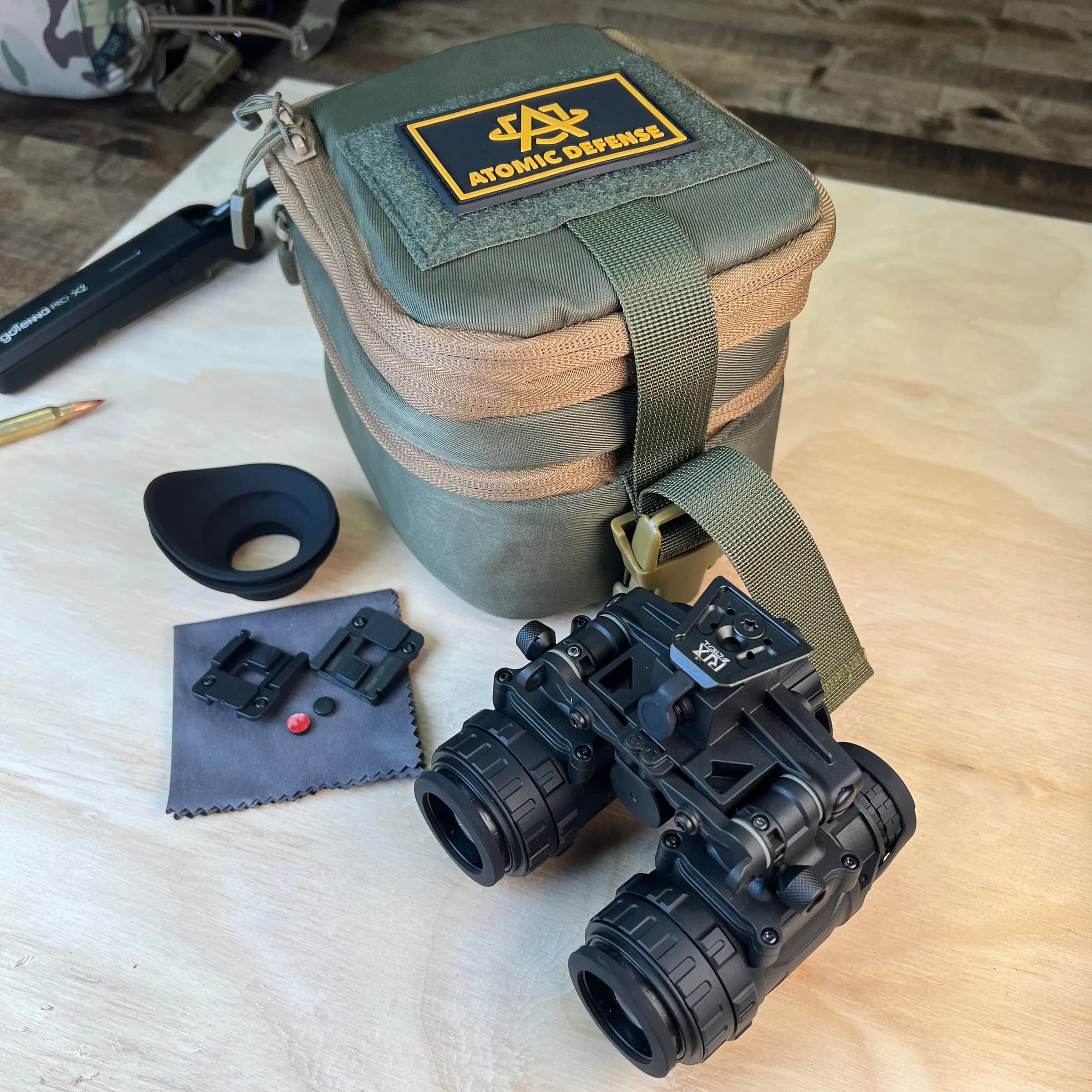

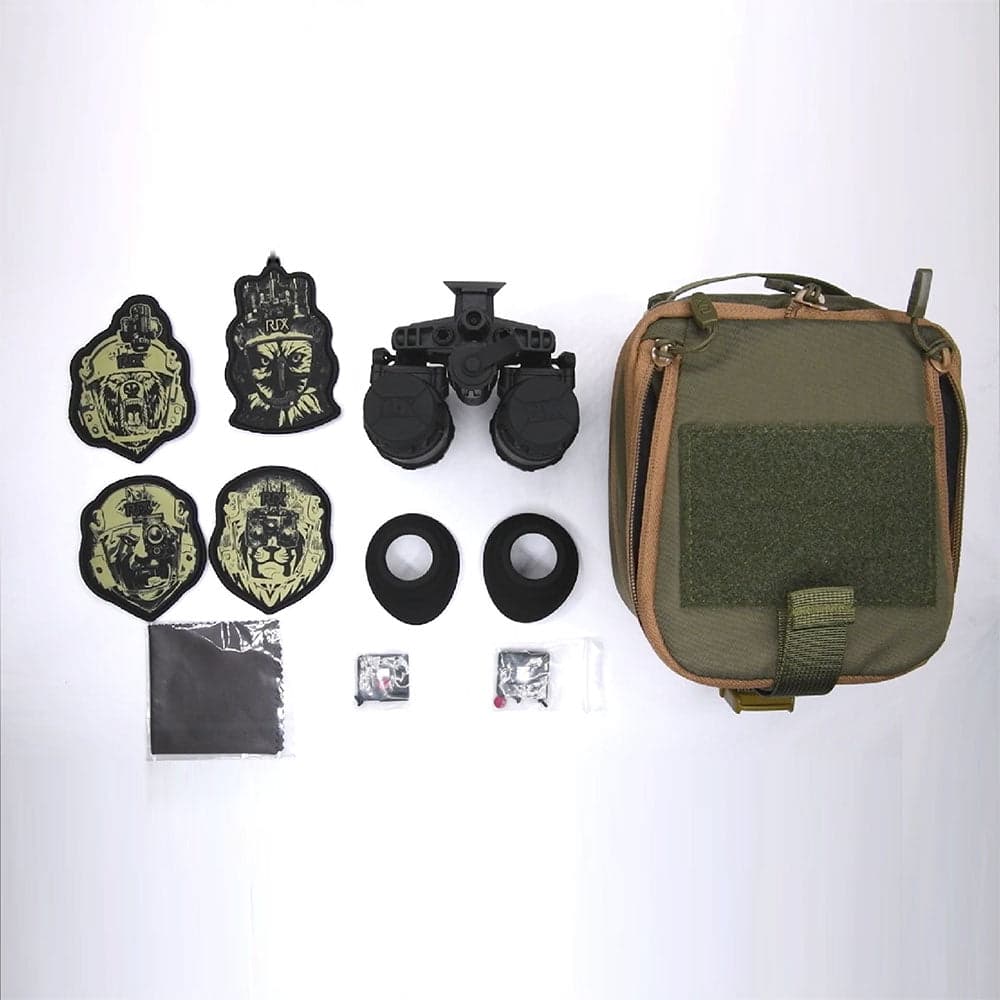

What's in the box of the RNV-31?
- (1) RNV-31 Device
- (1) User manual
- (1) Thermal Fusion Pendant Adapter

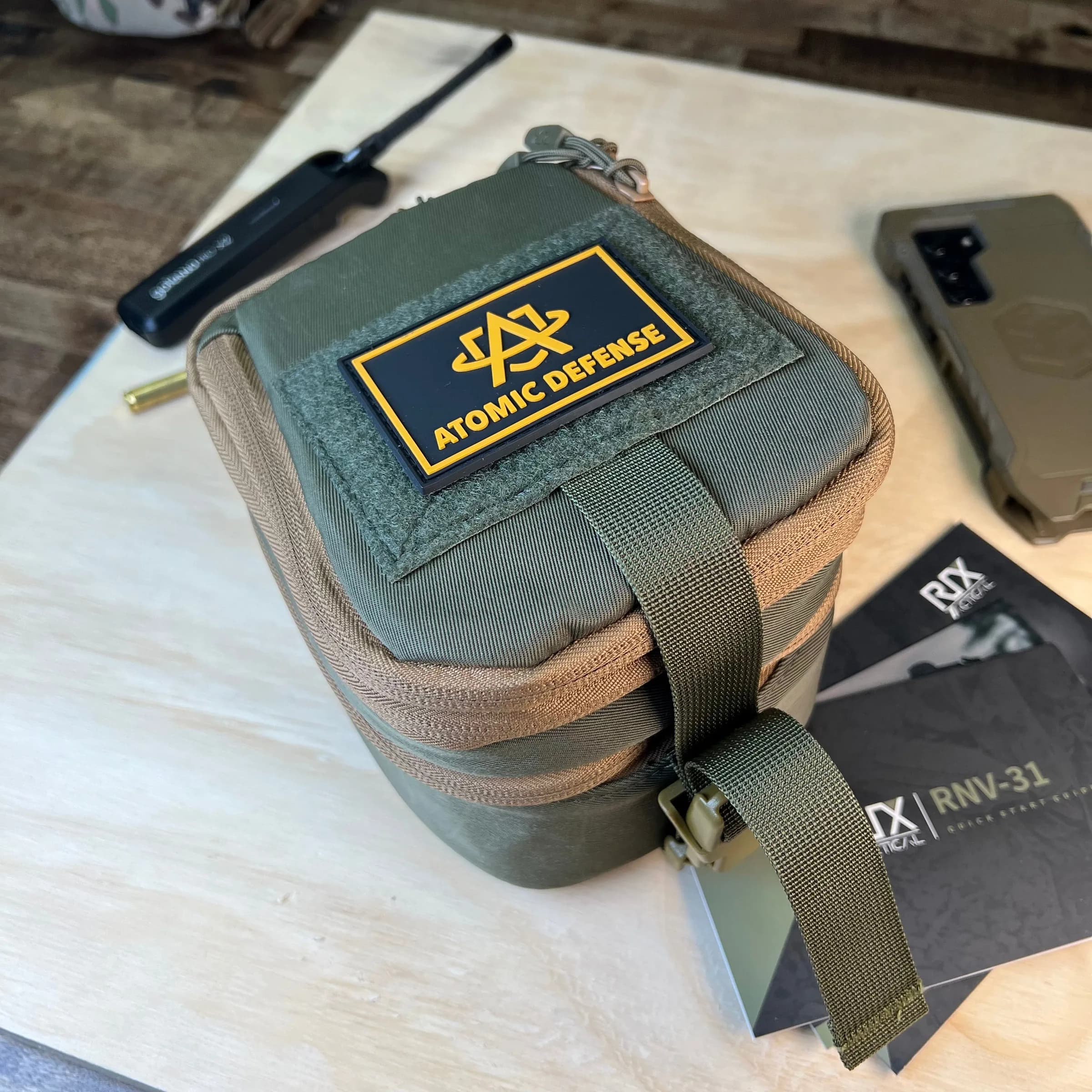

- (1) Portable bag
- (1) Long eyeshade
RNV 31 Night Vision FAQs
How far can I see with the RNV-31?
When there is some light from the moon or stars, you can focus on things from very close up to as far as you can see. In total darkness, the built-in infrared (IR) light helps you see up to around 100 meters away.
How long does the battery last on the RNV-31?
The device can run for about 20 hours using just one AA battery. If you need it to last even longer, an optional battery pack can extend the operating time to over 50 hours.
Can I use the RNV-31 if it's raining?
Yes, it is designed to work in wet weather. The RNV31 is waterproof and can handle being in water up to 10 meters deep.
What does "manual gain control" mean?
Manual gain is like a brightness control for the night vision. It lets you adjust the image to help you spot targets more clearly in different low-light situations.
Is it okay to use the RNV-31 during the day?
No, you should not use this in bright daylight. It is made for low-light use, and using it in bright sunlight can damage the internal parts.
How heavy is the RNV-31?
It is designed to be lightweight, weighing about 500 grams (or 1.1 pounds). This helps make it more comfortable to wear on a helmet for long periods.
Where can I purchase the RNV-31?
The RIX RNV31 is available through Atomic Defense, an authorized dealer of RIX Tactical products. Atomic Defense is committed to providing top-quality, genuine RIX Tactical products, guaranteeing both authenticity and performance. This dedication to product integrity and customer satisfaction makes Atomic Defense the ideal source for your RNV-31 needs.
What are the key differences in the RNV 31 vs Jerry 31 comparison?
When comparing the RNV 31 vs Jerry 31, the main takeaway is that the RIX RNV-31 is the new, upgraded version of the Jerry-31, which has been discontinued. The most significant improvement is the RNV-31's superior waterproof rating of 10 meters , compared to the Jerry-31's IP67 rating. Beyond that, the units are very similar. Both are ultra-lightweight, with the RNV-31 weighing between 470-500 grams and the Jerry-31 weighing between 470-481 grams. They also share critical features like manual gain control and a standard battery life of about 20 hours from a single AA battery.
