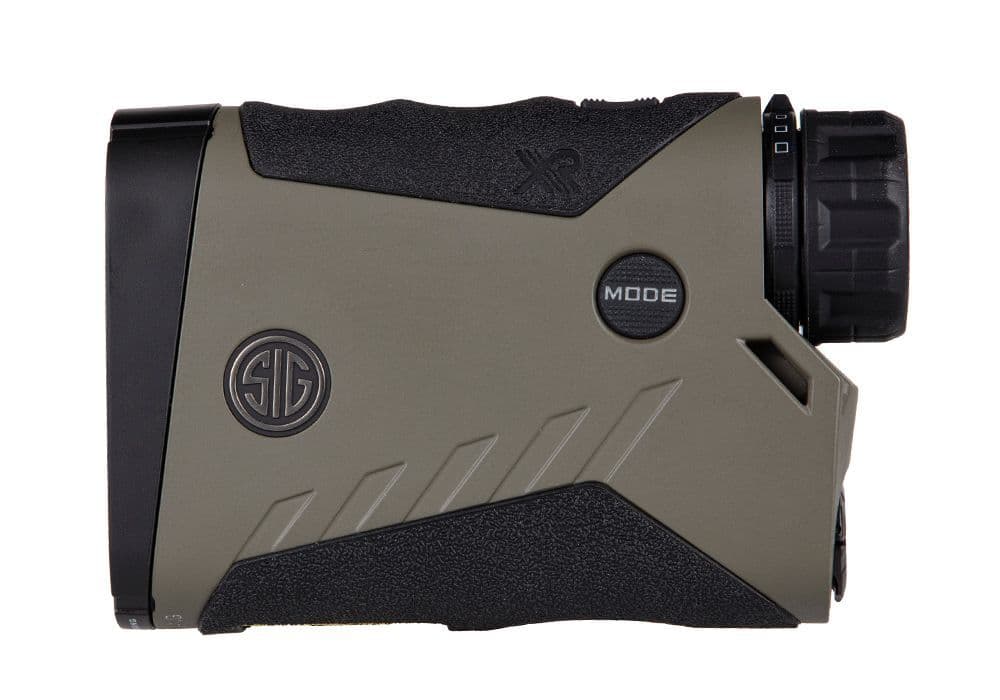

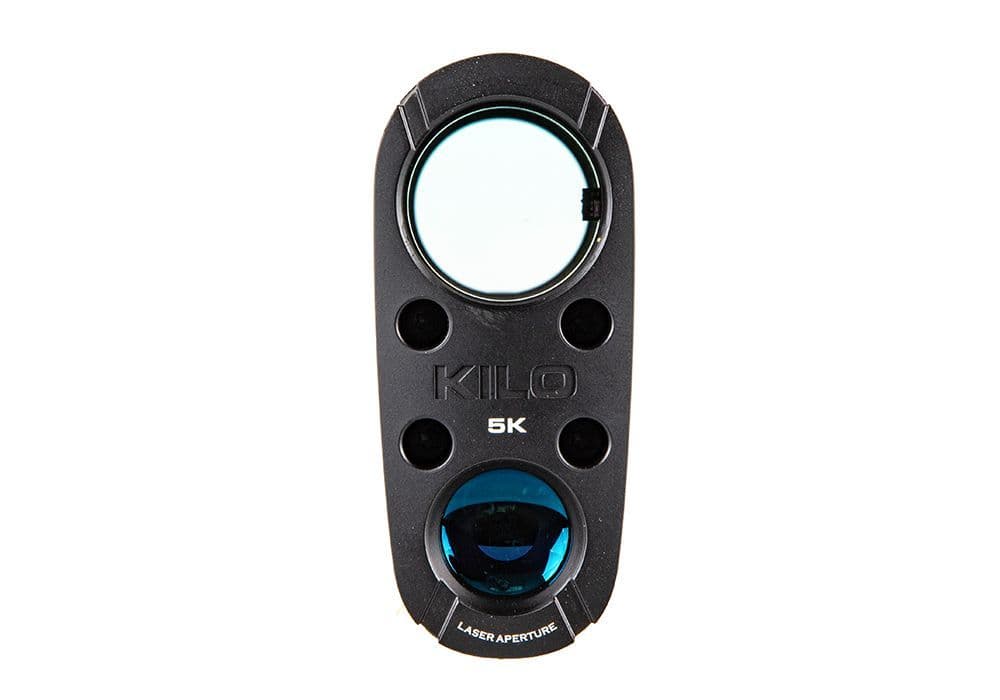

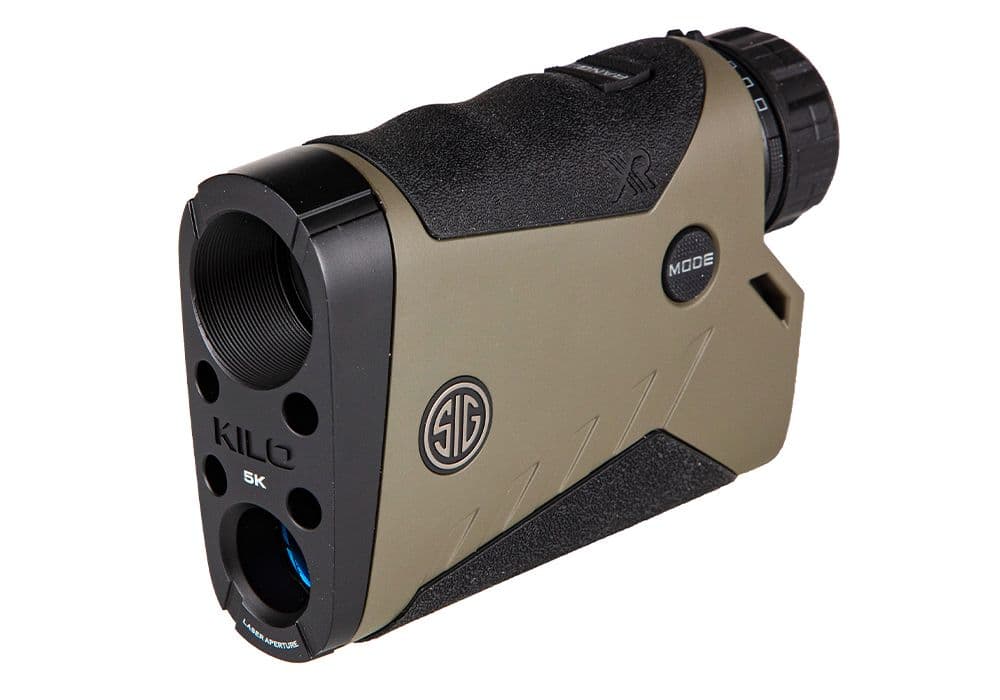

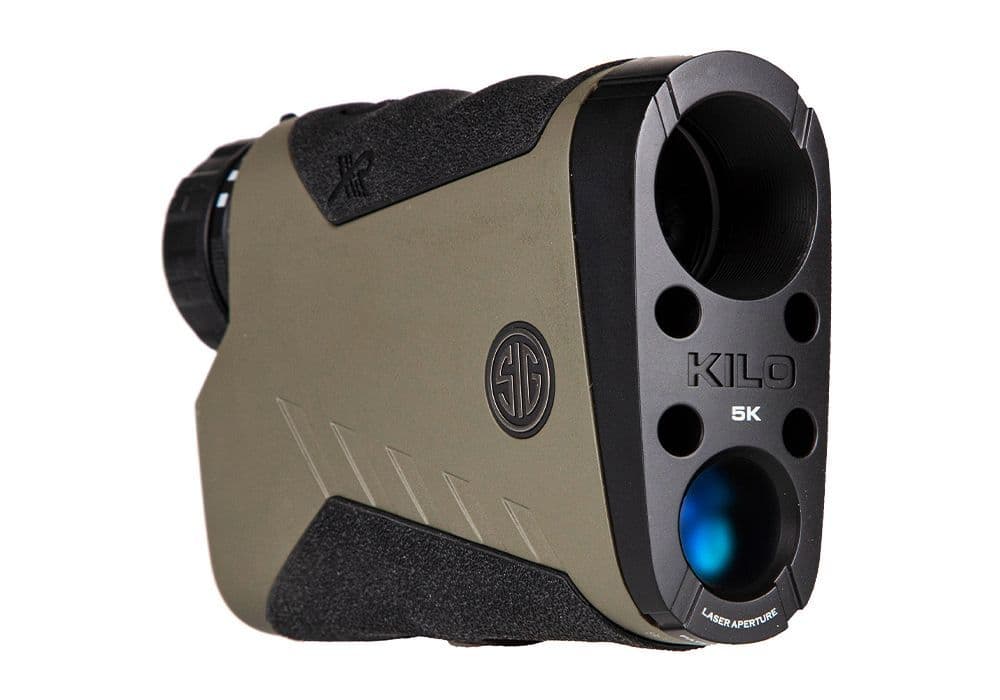

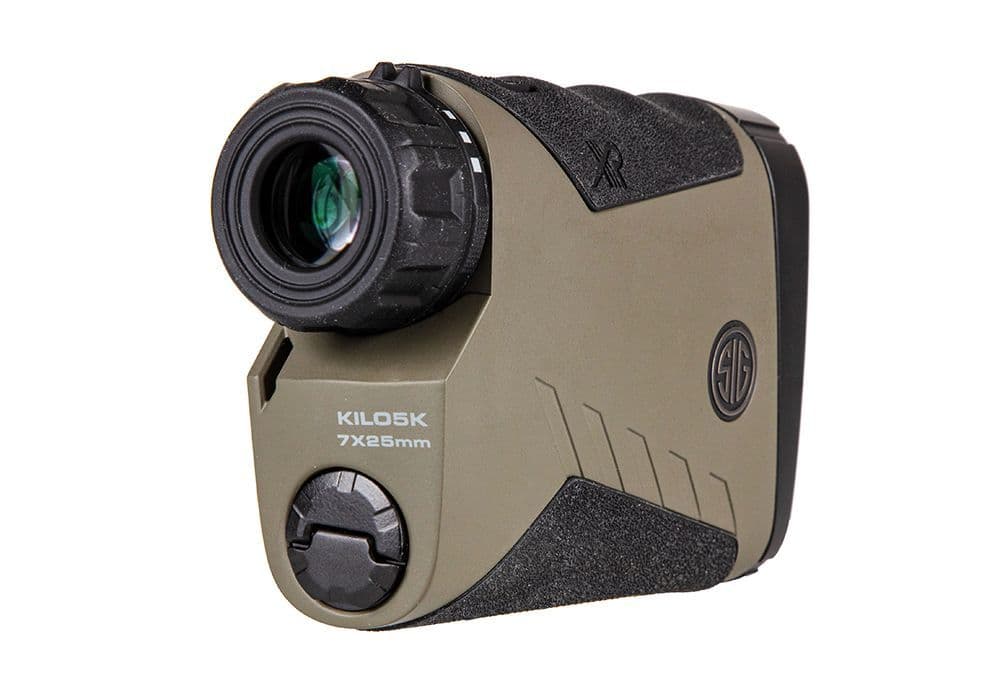

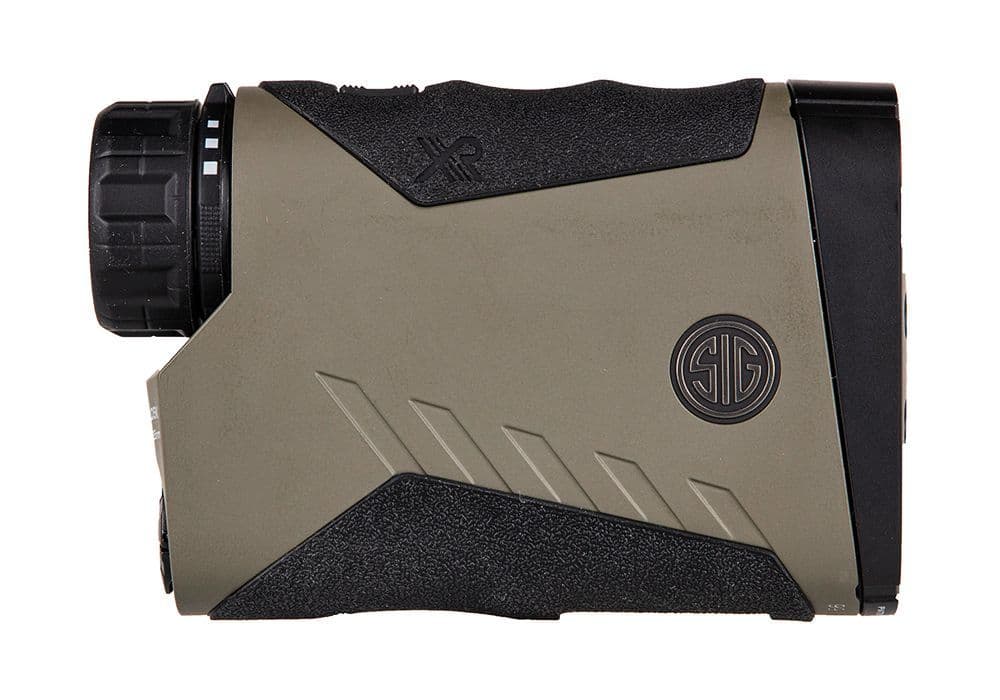

Master the Long Shot: SIG KILO5K Laser Rangefinder
- 5,000 Yards Ranging Capability: The Sig KILO5K offers an impressive maximum reflective range of 5,000 yards. It allows you to confidently range targets at extreme distances.
- Advanced Ballistics Onboard: Equipped with Applied Ballistics Ultralite and environmental sensors, this rangefinder provides real-time ballistic calculations to ensure accurate shots.
- External Device Integration: Supports BDX External (BDX-X) for seamless connection to external devices like Kestrel and Garmin, expanding its ballistic capabilities.
- Next-Gen Ranging Engine: Features the Gen II LightWave DSP engine with new target modes. These include Extended Range (XR) and Fog mode, along with First, Best, and Last target options for enhanced precision.
- Easy-to-Read Display: The segmented OLED display clearly shows range to target, elevation holdover, and wind holds. All critical information is clear at a glance.
- Smart Connection to BaseMap App: Connects with the BaseMap app for remote waypoints on ranged targets. You can fully configure it using the SIG SAUER BDX App for superior control and mapping.
Sig Sauer KILO 5K Review
What are some common accessories to add to the Sig Sauer KILO5K?
- Kestrel Elite Weather Meter: Pair with the KILO5K for more precise ballistic solutions beyond 800 yards. Also including factors like Coriolis and spin drift by transmitting real-time atmospheric data.
- Garmin Foretrex: Another external device option for enhanced ballistic calculations and navigation in the field. Compatible with BDX-X for receiving range data.
- BDX Enabled Riflescope: Optimize your shooting system by connecting the KILO5K to a BDX compatible riflescope. This provides automatic holdover and windage adjustments directly in your reticle.
- Tripod: Provides a stable platform for accurate long-range ranging. A tripod is especially beneficial in challenging terrain or when precise measurements are critical.
- Lens Cleaning Kit: Essential for maintaining clear optics and ensuring optimal performance in all conditions.
- Extra CR2 Batteries: The KILO5K operates on a single CR2 battery. Be prepared with spare batteries to ensure your rangefinder is ready when you need it.
Sig 5k Rangefinder Features and Specs
The SIG SAUER KILO5K offers long-range precision. It uses a Gen II Lightwave DSP Ranging Engine. This engine has an Extended Range (XR) mode for unprecedented distances.
The device includes onboard environmental sensors and Applied Ballistics Ultralite. This provides real-time, highly accurate ballistic solutions. It has a comprehensive AB bullet database and custom bullet profiles.
The Sig Sauer 5K Rangefinder has BDX 2.0 enablement and uses low energy, long-range Bluetooth 5.x. This ensures seamless connection to external devices and BDX-enabled optics. This makes it a key tool for serious shooters.
Key Features
- Gen II Lightwave DSP Ranging Engine with Extended Range (XR) Mode: Provides faster, more accurate ranging, especially at extreme distances. Additionally, it includes Fog mode for challenging conditions.
- Onboard Environmental Sensors: Offers real-time atmospheric data such as temperature and pressure for precise ballistic calculations.
- Applied Ballistics Ultralite: Delivers comprehensive ballistic solutions with a complete bullet database. Includes up to 25 custom bullet profiles, ensuring tailored accuracy for your loadouts.
- BDX 2.0 Enabled: Facilitates seamless communication with BDX enabled riflescopes and external devices via low energy, long-range Bluetooth 5.x for integrated ballistic solutions.
- BaseMap App Connectivity: Allows users to drop remote waypoints on ranged targets. Thus enhancing situational awareness and navigation directly from your smartphone.
- Segmented OLED Display: Provides clear and concise information. Data such as range, elevation holdover, and wind holds with automatic brightness adjustment (Lumatic™ Display).
Technical Specifications
- Model: KILO5K
- Color: Ranger Green
- Height: 3.0 in
- Magnification: 7x
- Objective Lens Diameter: 25 mm
- Overall Length: 4.4 in
- Overall Width: 1.3 in
- Battery: (1) CR2
- Display Type: Segmented OLED
- Reticle: Circle + Milling Grid
- Weight: 7.5 oz
- Eye Relief: 15 mm
- Field of View: 6.78º
- Diopter Adjustment Range: +/- 3
- Run Time: 4000 ranges
- Range on Deer: Up to 2000 yards
- Range on Trees: Up to 2500 yards
- Max Reflective: Up to 5000 yards
- Laser Divergence: 1.3 MRAD
What's in the box of the Sig Kilo 5K Rangefinder?
- (1) SIG SAUER KILO5K 7x25 mm Laser Rangefinder Monocular
- (1) Black/Grey Carry Pouch
- (1) Lanyard
- (1) Sig Kilo 5K Manual
Kilo 5k Rangefinder FAQs
How does the KILO5K's Applied Ballistics Ultralite work?
The KILO5K features Applied Ballistics Ultralite onboard. This advanced system, combined with its integrated environmental sensors, provides real-time ballistic calculations. It uses a comprehensive Applied Ballistics bullet database and allows for up to 25 custom bullet profiles. Thus giving you highly accurate firing solutions tailored to your specific ammunition and firearm.
What is the maximum range of the Sig Sauer 5K Monocular?
The KILO5K boasts an impressive maximum reflective range of 5,000 yards. For ranging on trees, it can achieve up to 2,500 yards, and for ranging on deer, it is effective up to 2,000 yards.
Can the KILO5K connect to other devices?
Yes, the KILO5K is highly connectable. It supports BDX External (BDX-X) for seamless integration with external devices like Kestrel Elite Weather Meters and Garmin Foretrex navigators. This enables more precise ballistic solutions, particularly beyond 800 yards. It also connects wirelessly with SIG SAUER BDX-enabled riflescopes and sights via Low Energy / Long Range Bluetooth 5.x for integrated aiming solutions.
What is the purpose of the Gen II LightWave DSP engine?
The Gen II LightWave DSP (Digital Signal Processing) engine is the core of the KILO5K's ranging capabilities. It enhances the rangefinder's performance by offering faster and more accurate ranging. It introduces new target modes like Extended Range (XR) for extreme distances and a Fog mode for adverse weather, along with First, Best, and Last target options to ensure optimal readings in various field conditions.
How does the KILO5K integrate with the BaseMap app?
The KILO5K connects directly with the BaseMap app on your smartphone. This integration allows you to drop remote waypoints on ranged targets. It is incredibly useful for mapping out your hunting area, marking points of interest, or planning your approach, all from a single device.
What type of display does the KILO5K use?
The KILO5K utilizes a high-quality segmented OLED (Organic Light Emitting Diode) display. This display technology provides clear, bright, and crisp readings of your range to target, elevation holdover, and wind holds. It also features Lumatic™ Display technology for automatic brightness adjustment, ensuring visibility in varying light conditions.
Where can I purchase the SIG SAUER KILO5K?
Atomic Defense is an authorized dealer for SIG SAUER products, guaranteeing you receive a genuine KILO5K with the full manufacturer's warranty and support. We are committed to providing expert advice, competitive pricing, and exceptional customer service, ensuring a reliable and trustworthy purchasing experience for your high-performance optics.
