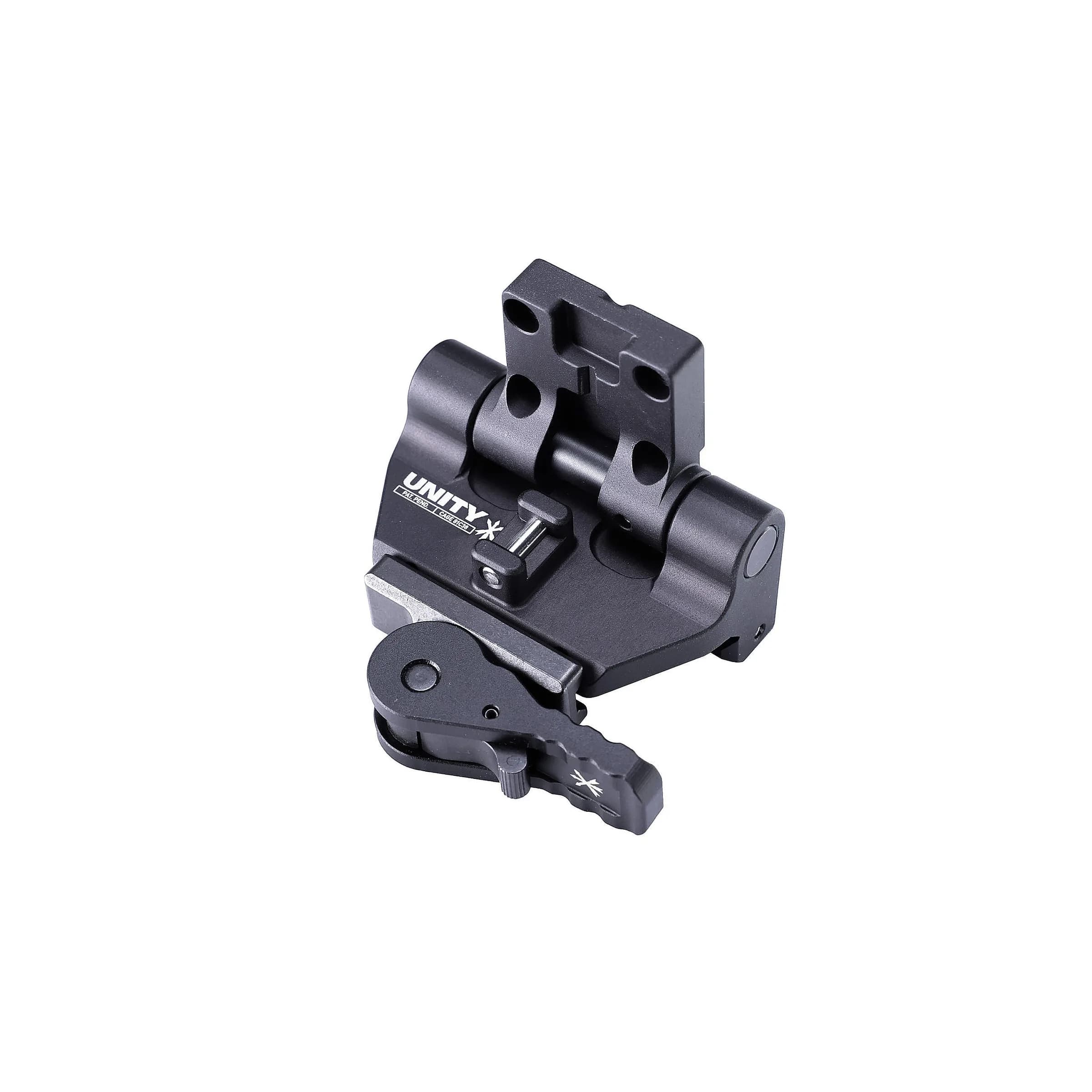

Unity Tactical CTM - Combat Thermal Mount - for SkeetIR™s and VooDoo-S™

Unity Tactical CTM™ | Innovative Compact Thermal Mount with Flip-to-Side Mechanism

• The Unity Tactical CTM™ | Combat Thermal Mount™ is designed with portability and ease of use in mind, providing an efficient solution for mounting thermal devices.

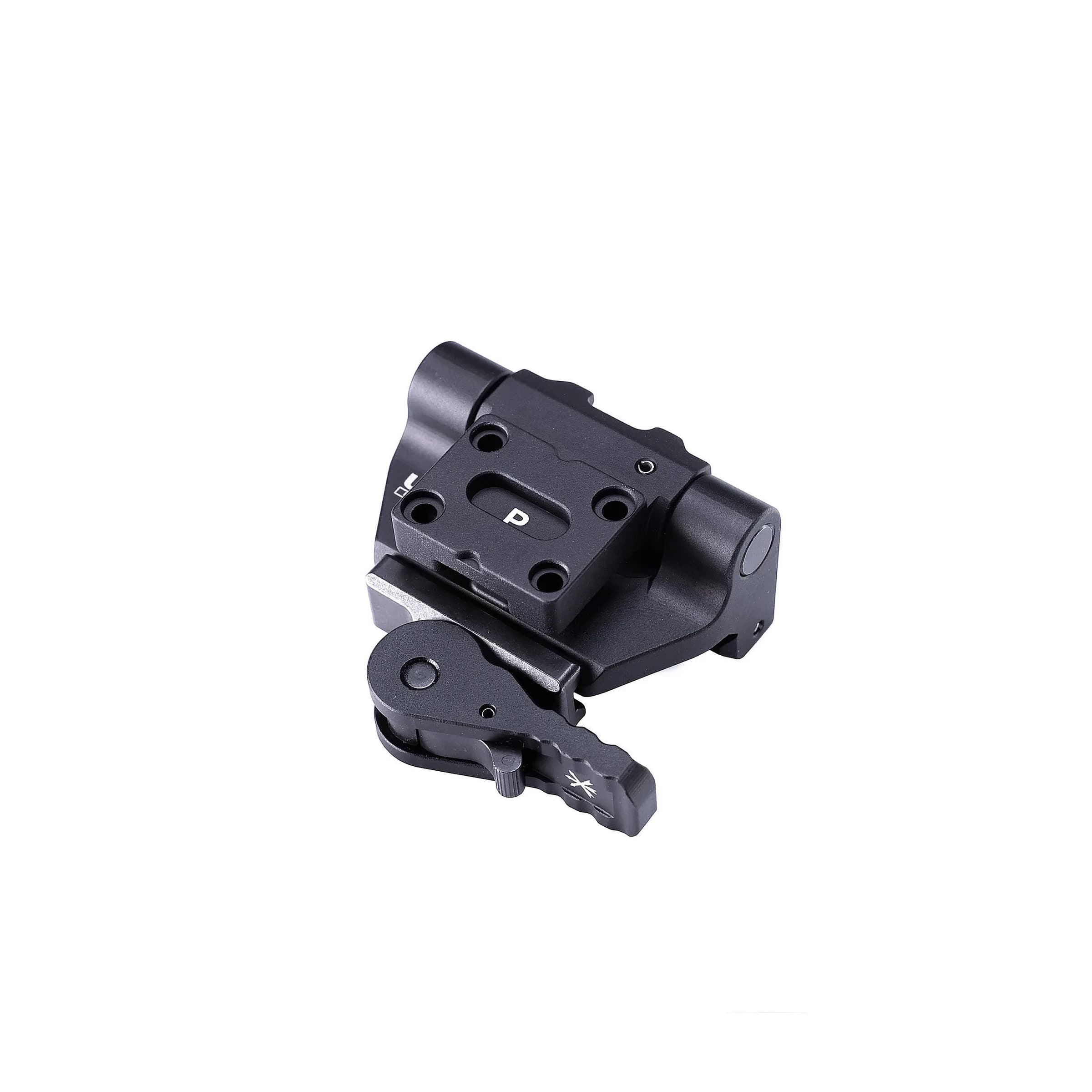

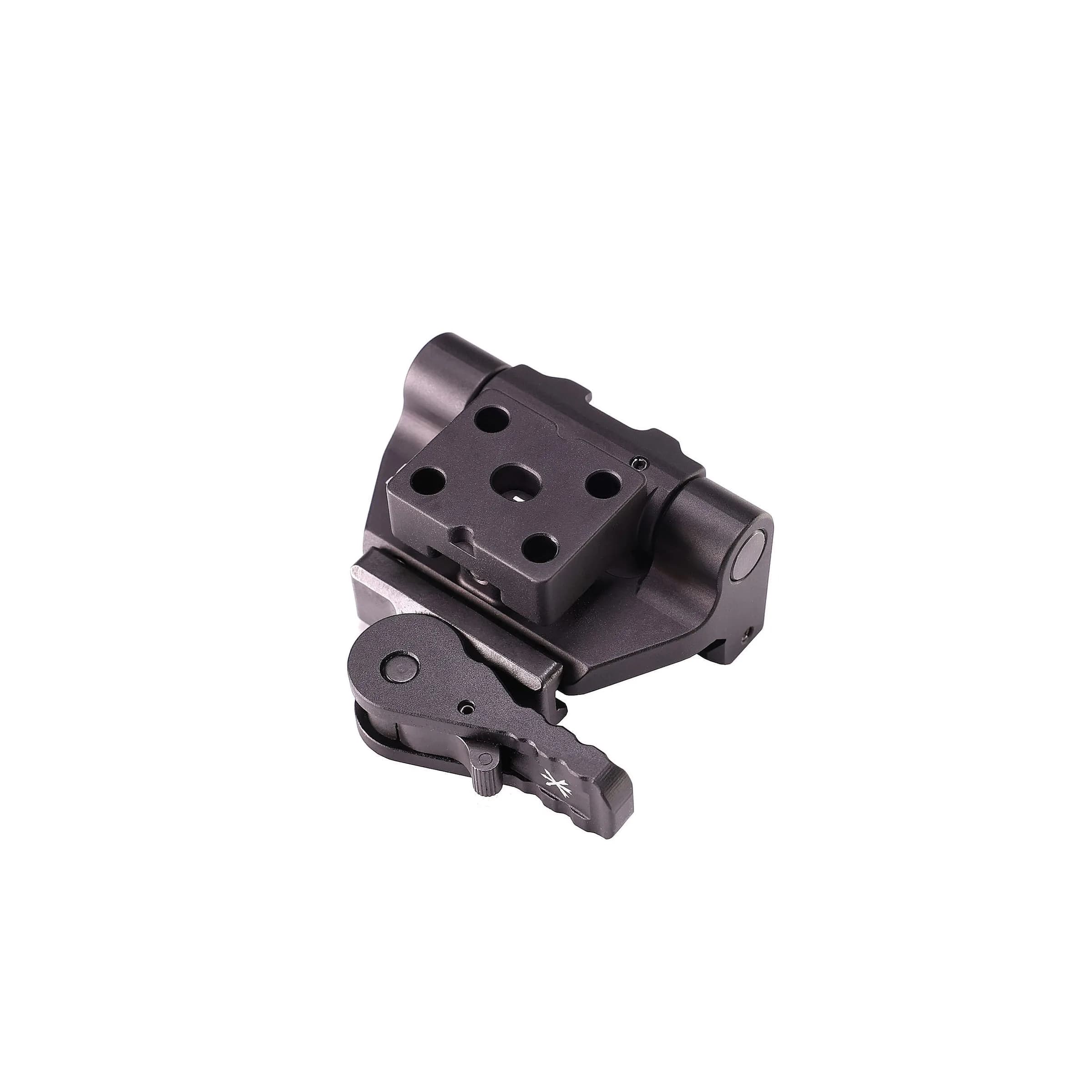

• Versatile compatibility: Available in two models to support either the Trijicon® SkeetIR™x or the Pixels on Target™ VooDoo-S™, ensuring adaptability for different thermal devices(models are not interchangeable).

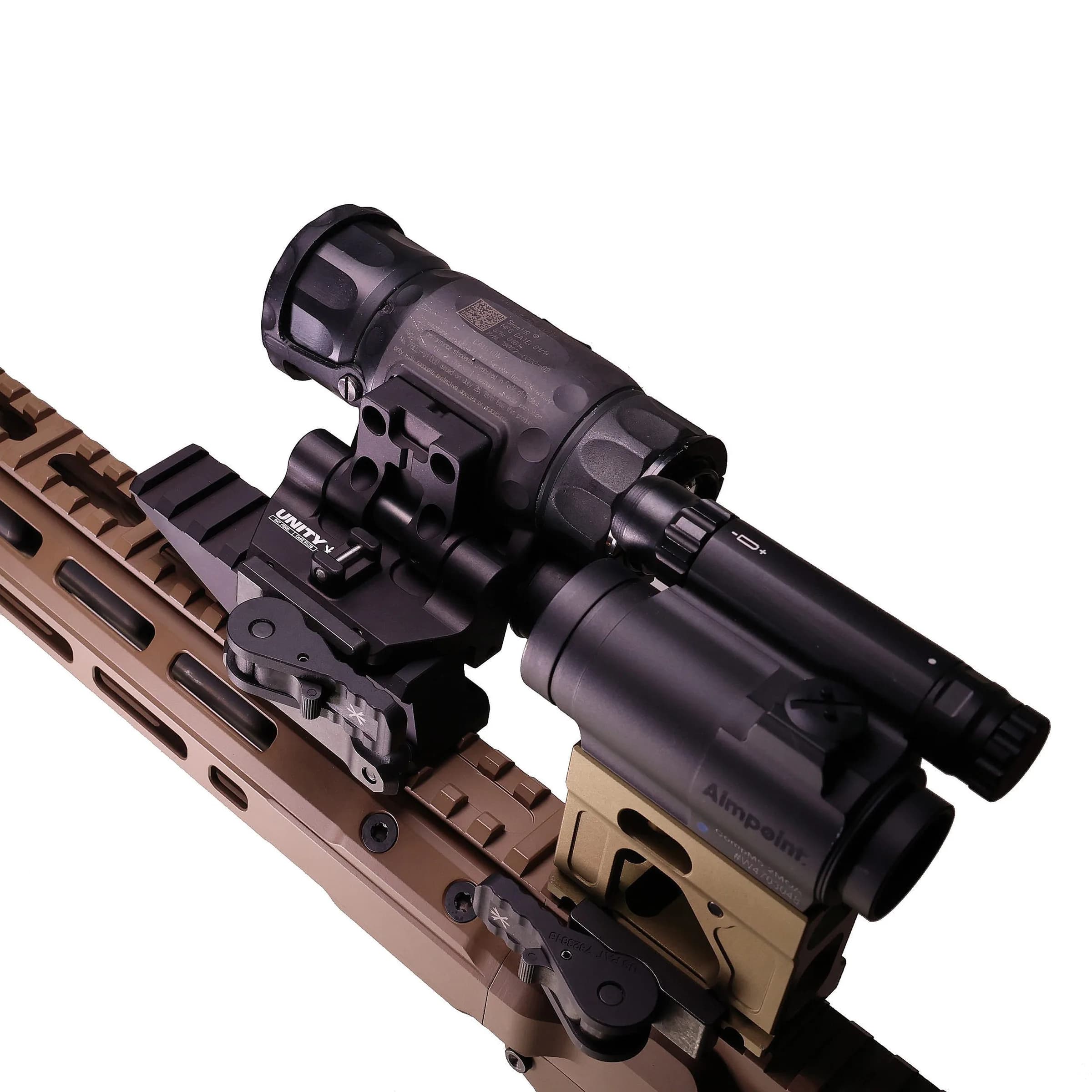

• Force-to-overcome mechanism: Allows for convenient flip-to-side functionality, making it easy to stow or deploy the thermal as needed. The VooDoo-S™ model supports both right- and left-handed users.

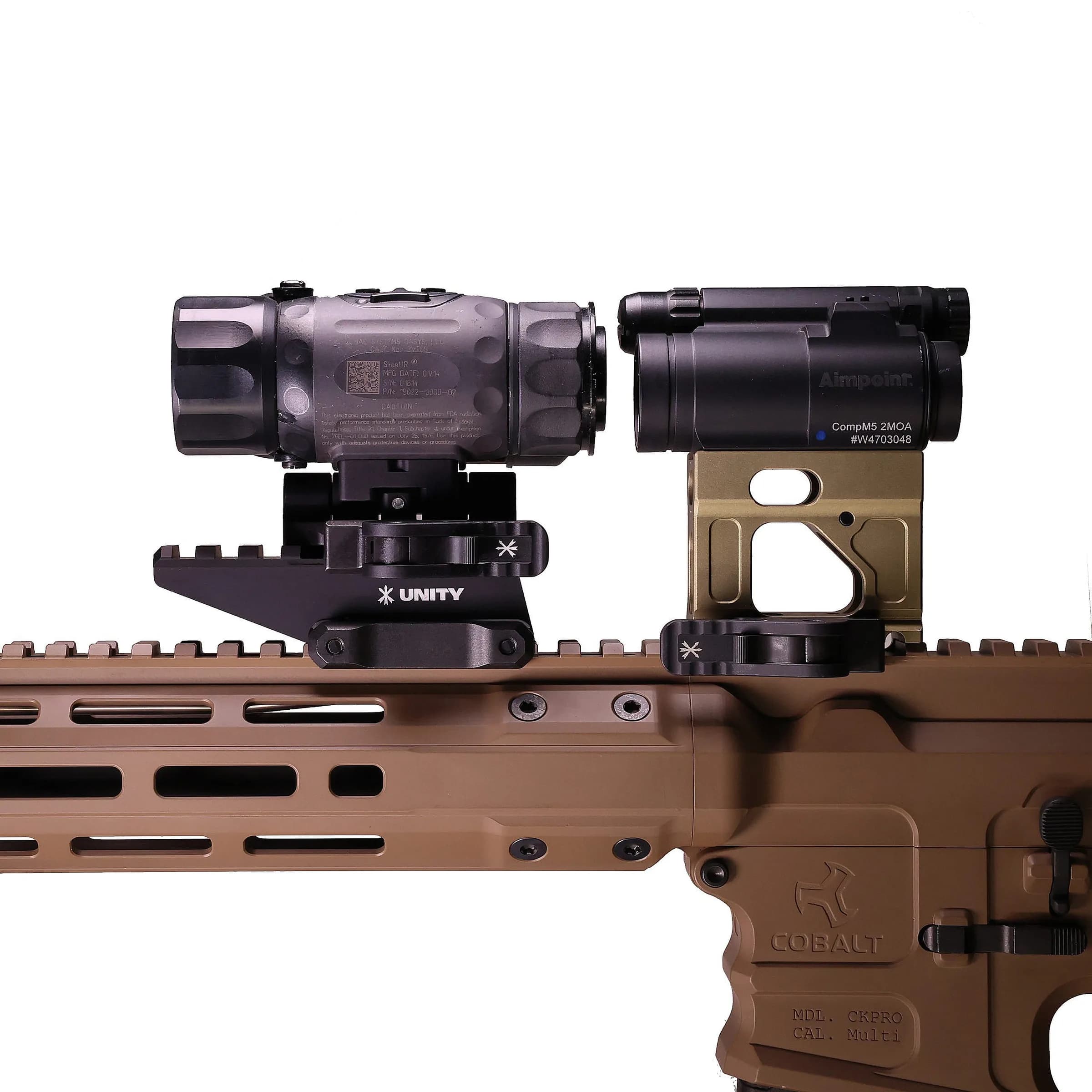

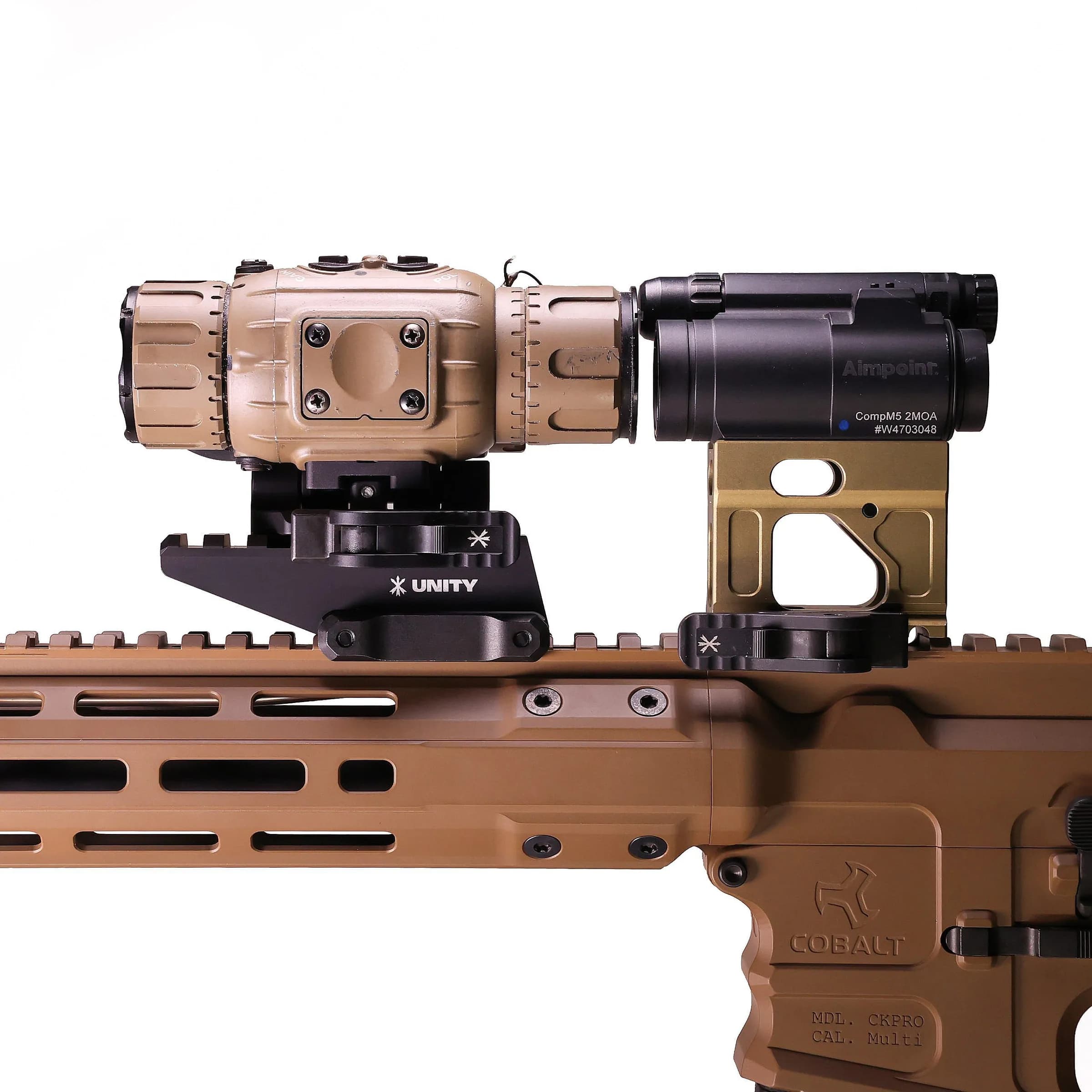

• Optimal height alignment: Brings the thermal to an absolute co-witness height of a 1.54″ optical centerline from the rail. When mounted on a FAST™ Optic Riser, it achieves the FAST™ height of 2.26″ for seamless pairing with other optics and mounts.
• Quick detach and reattach: Features the integrated FAST™ QD Lever forrapid detachment and reattachment, maintaining optic co-alignment and enabling use as a handheld imager.
• Durable construction: Engineered from robust 7075-T6 aluminum with a Type III Hardcoat Anodized finish, ensuring longevity and resilience in demanding environments.
• Precision-engineered dimensions: Compact design minimizes rail coverage and maintains a low profile, enhancing usability without compromising functionality.

Unity Tactical CTM | Combat Thermal Mount Review

What are some common accessories to add to the Unity Tactical CTM | Combat Thermal Mount?

• FAST™ Optic Riser
• Thermal Mounting Screws
• M1913 Rail Attachments
• Quick Detach Systems
• Optics and Scopes (compatible with FAST™ mounts)

Unity Tactical CTM | Combat Thermal Mount Features and Specs

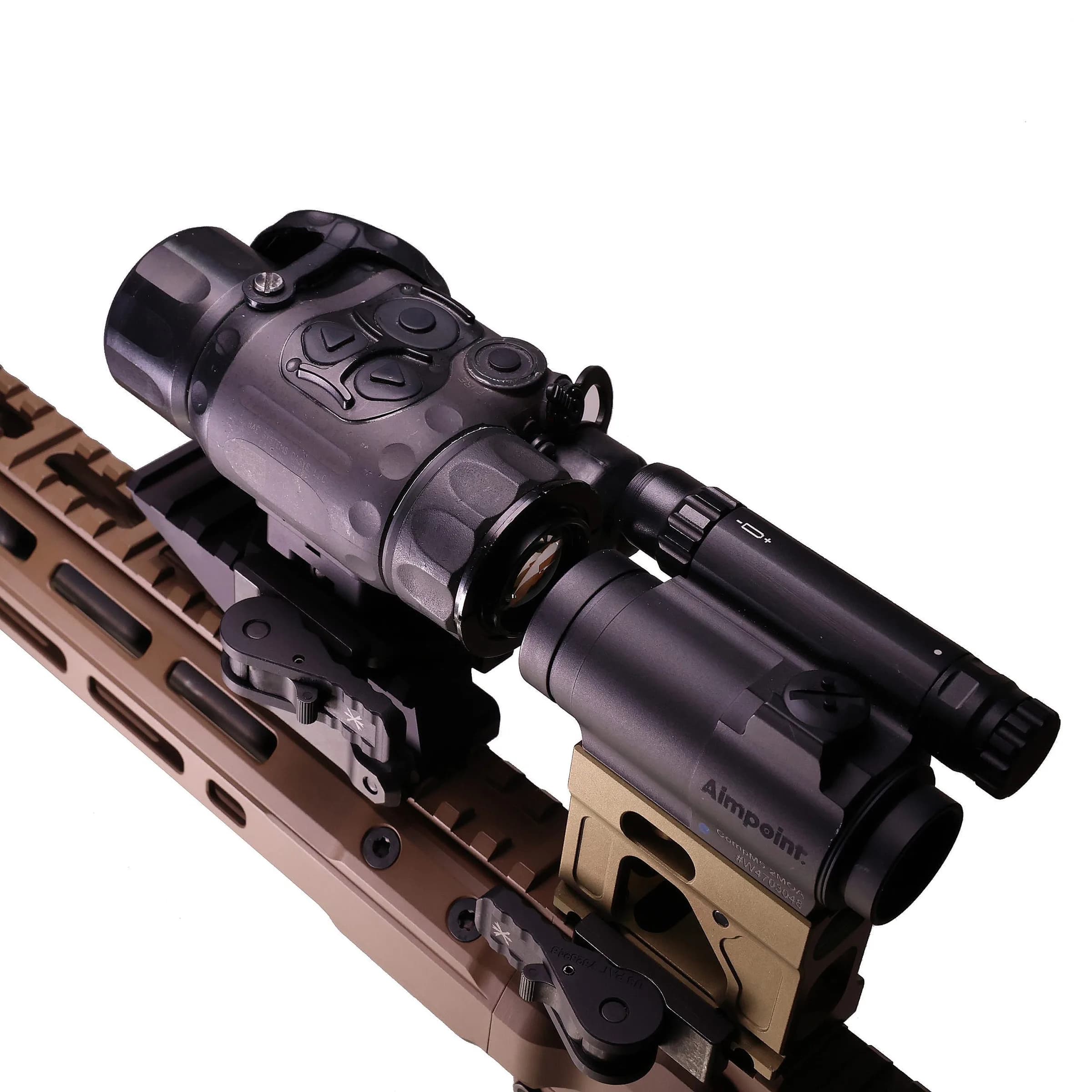

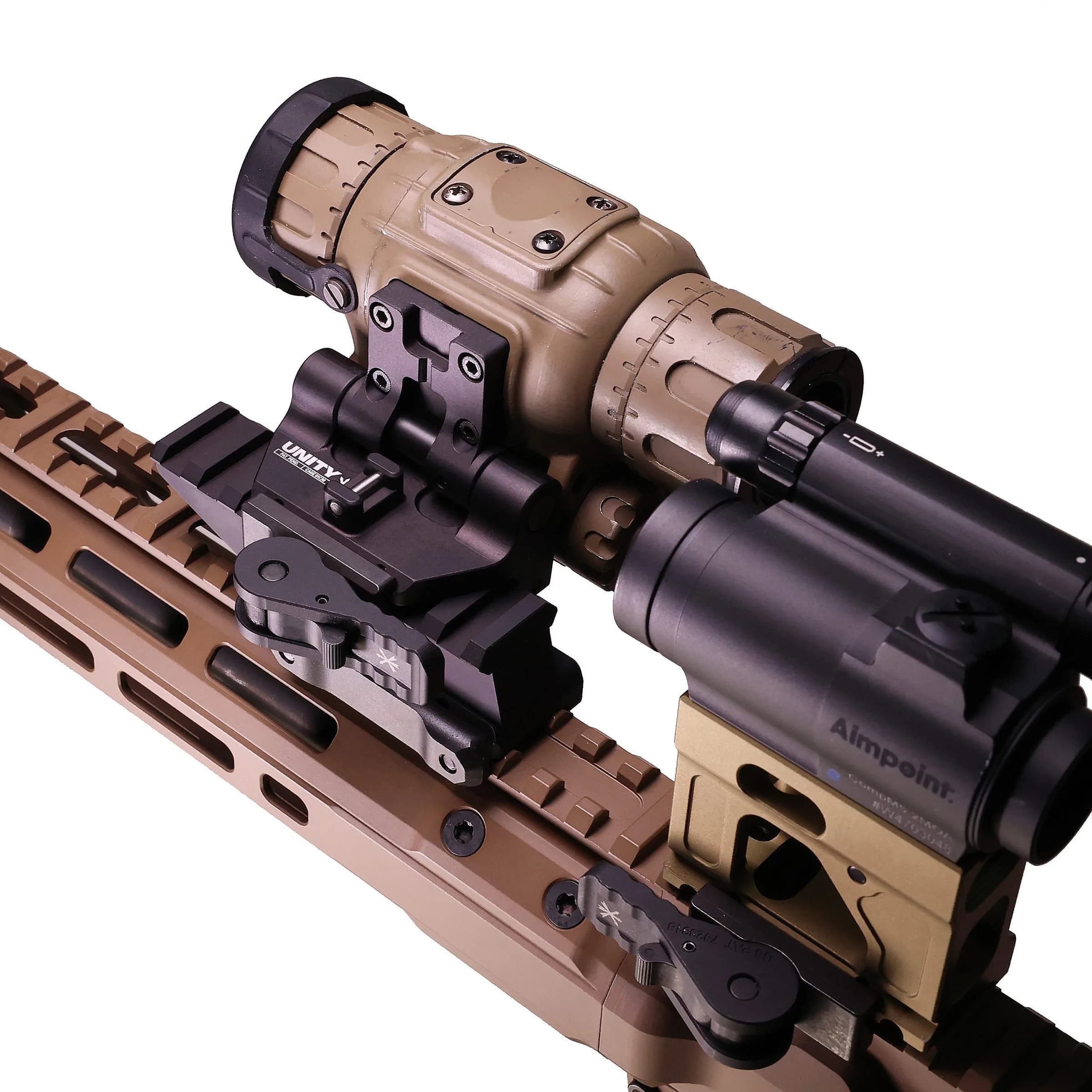

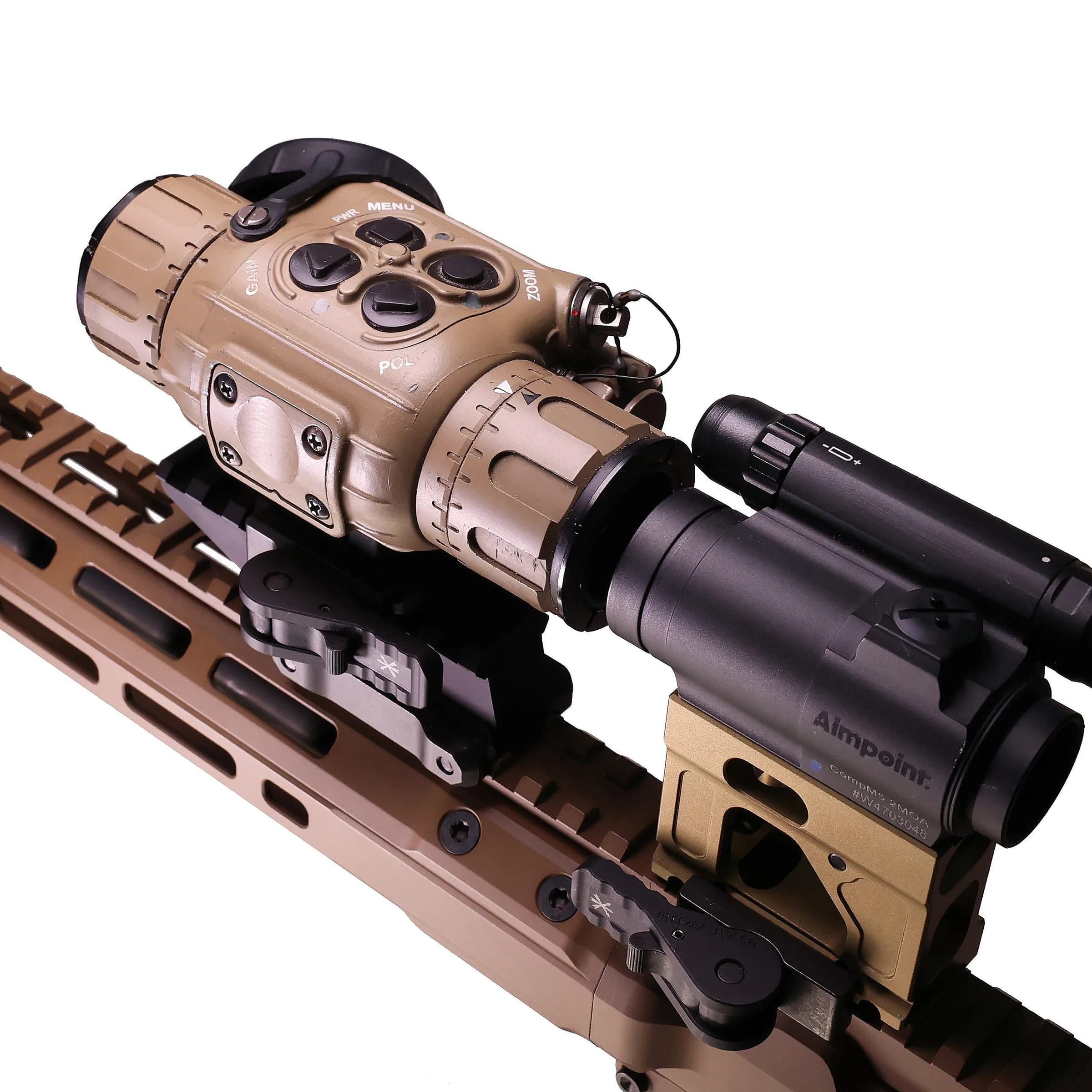

The Unity Tactical CTM™ | Combat Thermal Mount™ is a compact and lightweight mounting solution designed to bring thermal imaging devices to an optimal co-witness height. It supports two models, the Trijicon® SkeetIR™x and the Pixels on Target™ VooDoo-S™, each with specific compatibility to ensure precise alignment with optics. The mount features a durable design, a force-to-overcome flip-to-side mechanism, and quick-detach functionality for seamless transition between mounted and handheld use. It integrates effortlessly with M1913 rails and can be paired with FAST™ mounts to achieve the standard FAST™ height of 2.26″.

Key Features

• Compatibility:Supports Trijicon® SkeetIR™x and Pixels on Target™ VooDoo-S™ (models not interchangeable).
• Mounting:Attaches directly to an M1913 rail with a FAST™ QD Lever for easy detachment and reattachment.
• Mechanism: Features a reliable force-to-overcome flip-to-side mount with options for right- or left-handed operation (VooDoo-S™ model).
• Height:
• Standard co-witness height of 1.54" optical centerline from the rail.
• Compatible with FAST™ Optic Risers for a total height of 2.26".
• Material: Constructed from 7075-T6 aluminum with Type III Hardcoat Anodized coating for durability.
• Weight: Lightweight design at less than 4.3 oz (121.9 g).
• Dimensions (W x L x H):
• Rail Coverage: < 2.1 x 2.3 in (5.3 x 14.2 cm)
• With QD Lever: 2.6 in (6.6 cm)
• Stowed Height: 1.5 in (4.6 cm)
• In Use Height: 0.8 in (9.2 cm)
• Color: Available in black.
• Quick Use: Can serve as a handheld imager when detached while maintaining optic alignment upon reattachment.

What's in the box of the Unity Tactical CTM | Combat Thermal Mount?

• (4) Thermal Mounting Screws
• (1) CTM™ for Trijicon® SkeetIRx (if applicable)
• (1) CTM™ for Pixels on Target VooDoo-S™ (if applicable)

Unity Tactical CTM | Combat Thermal Mount FAQs

What thermal devices is the Unity Tactical Combat Thermal Mount compatible with?

The Combat Thermal Mount™ is compatible with the Trijicon® SkeetIR™x and the Pixels on Target™ VooDoo-S™. Note that the CTM™ models are not interchangeable between these devices, so make sure to purchase the correct model for your thermal.

Can the CTM™ be used for both right- and left-handed configurations?

Yes, the model for the Pixels on Target™ VooDoo-S™ can be mounted for both right- and left-handed flip-to-side options, making it versatile for user preferences.

How is the CTM™ attached to the rail?

The CTM™ mounts directly to an M1913 rail and comes standard with a FAST™ QD Lever for quick detachment and reattachment. This allows the thermal to also be used as a handheld imaging device while maintaining optic co-alignment.

Does the CTM™ work with FAST™ optic mounts?

Yes, when mounted on a FAST™ Optic Riser, the CTM™ aligns the thermal to the FAST™ height of 2.26″. This enables seamless pairing with any FAST™ mount and optic combination.

What is the mechanism used for flipping the thermal device?

The CTM™ uses a force-to-overcome mechanism, allowing the thermal to flip to the side when not in use. This makes transitioning between active and stowed positions quick and efficient.

What materials are used to construct the CTM™?

The Combat Thermal Mount™ is made of 7075-T6 aluminum with a Type III Hardcoat Anodized finish for durability and performance in demanding environments.

Can I use thread-locking compounds like Loctite® during installation?

No, the use of thread-locking compounds is not recommended. Doing so will void the warranty of the CTM™.

How should I clean and maintain the CTM™?

Avoid disassembling the mount, as this will void your warranty. Clean the mount gently with a soft cloth and ensure all screws are tightened to the manufacturer’s torque specifications.

What should I do before installation to ensure safety?

Ensure that your firearm is unloaded before beginning the installation process. Always verify that the weapon is safe to handle while mounting the CTM™.

What is included in the CTM™ package?

The contents vary depending on the model purchased. Each package includes the Combat Thermal Mount™ and specific mounting screws for the thermal device. Refer to the product details for full content listings.
