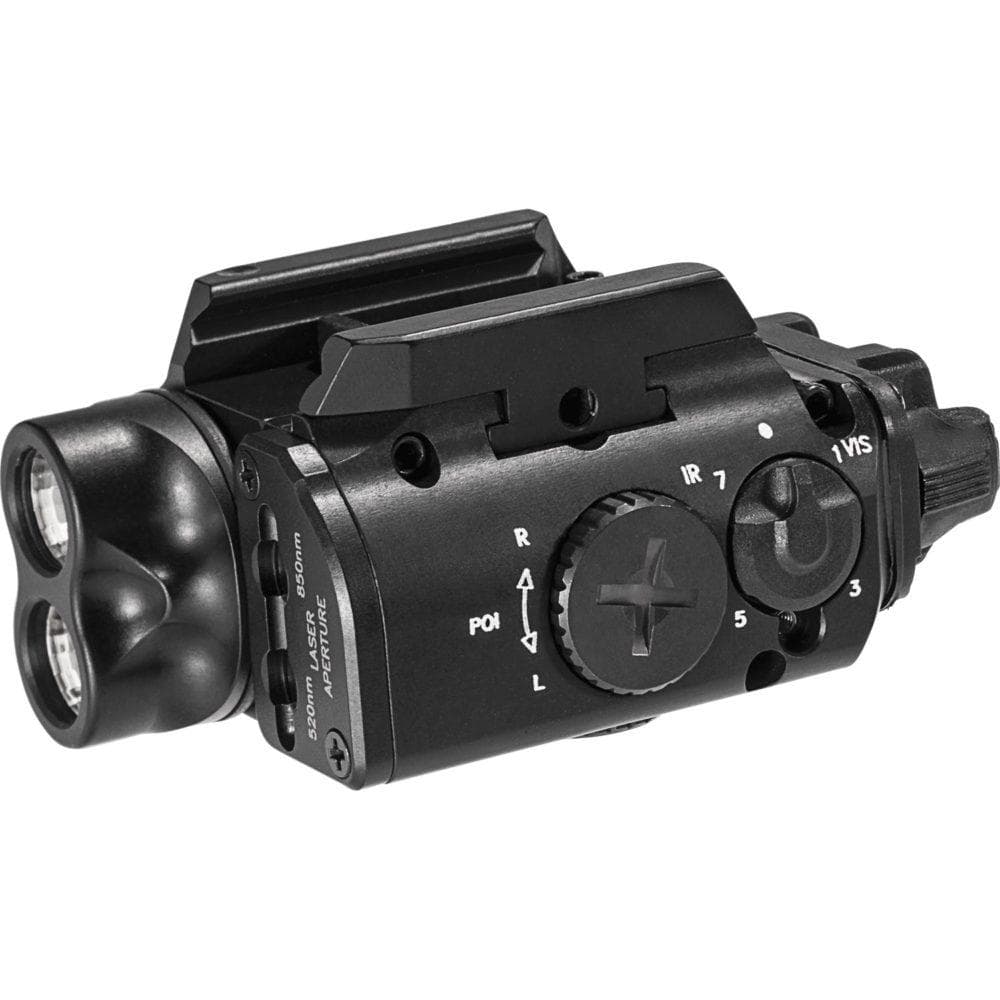

XVL2 (Low Power)

The XVL2-IRC Pistol & Carbine Light/Laser Module system is a paradigm shift in light and aiming laser systems. Proven technological advancements in tactical illumination are key design elements in the XVL2-IRC. Custom MaxVision Beam™ technology shapes the illumination beam into one that provides the optimum mix of projected illumination plus wide-angle illumination for target acquisition and situational awareness. The MaxVision Beam™ technology keeps the XVL2-IRC profile small and weight to a minimum to maximize the efficiency and efficacy of the warfighter.

This Product is subject to ITAR/EAR Export Controls. Please visit our ITAR/EAR page (click here) or Contact Us for more Information.

Pistol & Carbine Light / Laser Module System

• Developed at the request of top military and law enforcement professionals
• Dual LEDs deliver white light and infrared illumination for extreme versatility
• Coaligned dual lasers (green and IR) for quick and easy zeroing

SPECIFICATIONS

FEATURES

• Virtually indestructible white-light and infrared LEDs regulated to maximize output and runtime
• Integral ambidextrous momentary- and constant-on switching
• Attaches securely to both Universal and Picatinny accessory rails
• Weatherproof, waterproof O-ring and gasket sealed; the XVL2 meets IPX8 standards (66 feet, 2 hours)
• Accepts optional pressure-activated remote switches for precision control without altering grip on weapon
• Includes a nylon pouch to store the XVL2, mount key, safety screw key, cleaning cloth and lens cleaner

KEY ATTRIBUTES

• High Output: 400 lumens
• IR Output: 300mW / 850 nm
• Peak Beam Density: 820 candela
• Batteries: One 123A lithium (incl.)
• Switching: Ambidextrous push / toggle
• Length: 3.0 in (7.62 cm)

OUTPUT

• High Output: 400 lumens
• High Runtimr: 1.5 hours
• Green Laser Output: <5 millWatts (520 nm)
• IR Output: 300mW / 850 nm
• IR Laser Output: <.7 milliWatts (+/- 10%)
• Distance: 54 meters

BODY

• Construction: Aluminum
• Finish: Mil-Spec Hard Anodized
• Weight w/ Batteries: 5.0 oz (142 g)
• Bezel Diameter: 1.06 in (2.7 cm)
• Liquid Ingress Protection: IPX8 (66 feet, 2 hours)
